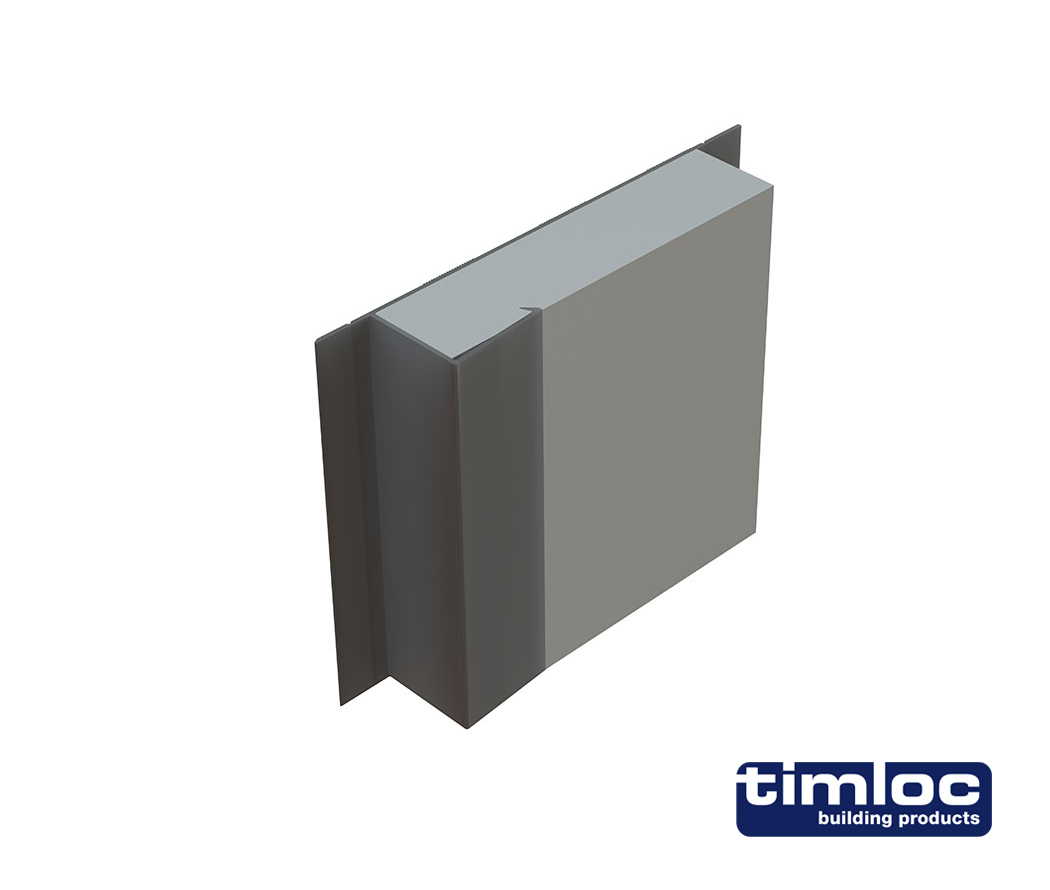

Thermo-loc Platinum+ Cavity Closer

by Timloc Building Products

Download Add to collection

Description

Cavity closers designed to eliminate damp and cold bridging around doors, windows, and sills.

Suitable for between 50mm-150mm cavity sizes. Single profile for 50mm-100mm cavities, double profile for 105mm-150mm cavities, Multi and Check Reveal Multi options also available. 25mm insulation thickness.

Compliant with Building Regulation Approved Documents C, L1 and L2 and satisfies BRE document ‘Thermal Insulation: avoiding risks’.

Uses:

To close the cavity at external doors, window jambs and sills
To provide thermal insulation and prevent ‘cold bridging’
To provide a DPC at external doors, window jambs or sills
Suitable for cavities up to 150mm

Description	Length	Product Code
Thermo-loc Platinum +	2.4m	PP2.4/50
Thermo-loc Platinum +	2.4m	PP2.4/75
Thermo-loc Platinum +	2.4m	PP2.4/90
Thermo-loc Platinum +	2.4m	PP2.4/100
Thermo-loc Platinum + Multi	2.4m	PP2.4/100MULTI
Thermo-loc Platinum +	2.4m	PP2.4/120
Thermo-loc Platinum +	2.4m	PP2.4/125
Thermo-loc Platinum +	2.4m	PP2.4/130
Thermo-loc Platinum +	2.4m	PP2.4/150
Thermo-loc Platinum + CR Multi	2.4m	PP2.4/CR100MULTI

Object Data

1 Revision

Last Updated

11/09/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

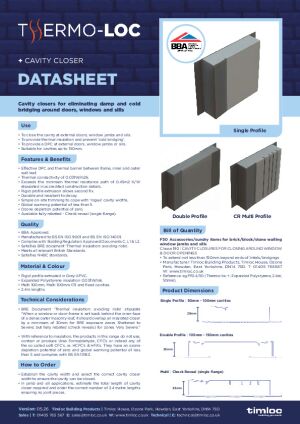

Technical Data Sheet

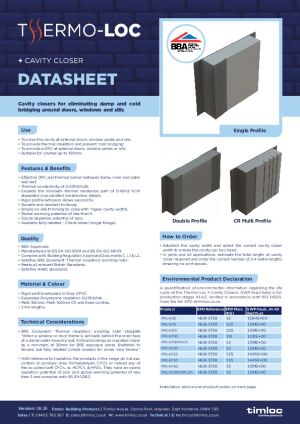

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/timloc-thermo-loc-platinum-cavity-closer/document/object-user-guide
Accessibility Performancen/a
Assembly CodeB1020
Asset TypeFixed
BIM Object NameTimloc_CavityCloser_ThermoLoc_PlatinumPlus
Cavity Width100 mm
Check RevealNo
Classification NameUniclass2015
Classification ValuePr_35_90_50_64
Code Performancen/a
ColorGrey
Constituentsn/a
Created Bysales@timloc.co.uk
Created On2024-09-01T09:00:00
Default Elevation0 mm
DescriptionCavity closers for eliminating damp and cold bridging around doors, windows and sills.
Documentation Certificateswww.bimstore.co/products/timloc-thermo-loc-platinum-cavity-closer/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/timloc-thermo-loc-platinum-cavity-closer/document/installation-guide
Documentation Literaturewww.bimstore.co/products/timloc-thermo-loc-platinum-cavity-closer/document/product-literature
Documentation Maintenancewww.bimstore.co/products/timloc-thermo-loc-platinum-cavity-closer/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/timloc-thermo-loc-platinum-cavity-closer/document/technical-data-sheet
Double Cavity Width Contraint99 mm
Double InsulationNo
Double ProfileNo
Duration UnitYears
Expected Life0
Extrusion MaterialTimloc_Grey
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeUSERDEFINED
InsulationPolystyrene, Expanded
KeynoteF30/180
ManufacturerTimloc Building Products
Manufacturer NameTimloc Building Products
MaterialPVC-U
ModelThermo-loc Platinum +
Model NumberPP2.4/100
Model ReferenceThermo-loc Platinum +
NBS DescriptionPlastics cavity closers
NBS Object NameTimloc - Plastics cavity closers
NBS Office Master Tagn/a
NBS Reference45-25-20/455
Nominal Depth100 mm
Nominal Height24 mm
Nominal Length2400 mm
Production Year2024
Referenced StandardManufactured to BS EN ISO 9001 and BS EN ISO14001. Complies with Building Regulation Approved Documents C, L1 & L2. Satisfies BRE document ‘Thermal insulation: avoiding risks’. Meets all relevant British Standards. Satisfies NHBC standards.
Replacement Costn/a
ShapeRectangular
Single InsulationYes
Single ProfileYes
Size2.4m Length x 100mm Cavity Width
Spare Partsn/a
Type CommentsPP2.4/100
Type NamePP2.4/100
URLtimloc.co.uk/products/thermo-loc-platinum-cavity-closer/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@timloc.co.uk
Warranty Guarantor Partssales@timloc.co.uk
Width24 mm
