RTV-LPP | Low Profile Plain Tile Vent

by Timloc Building Products

Download Add to collection

Description

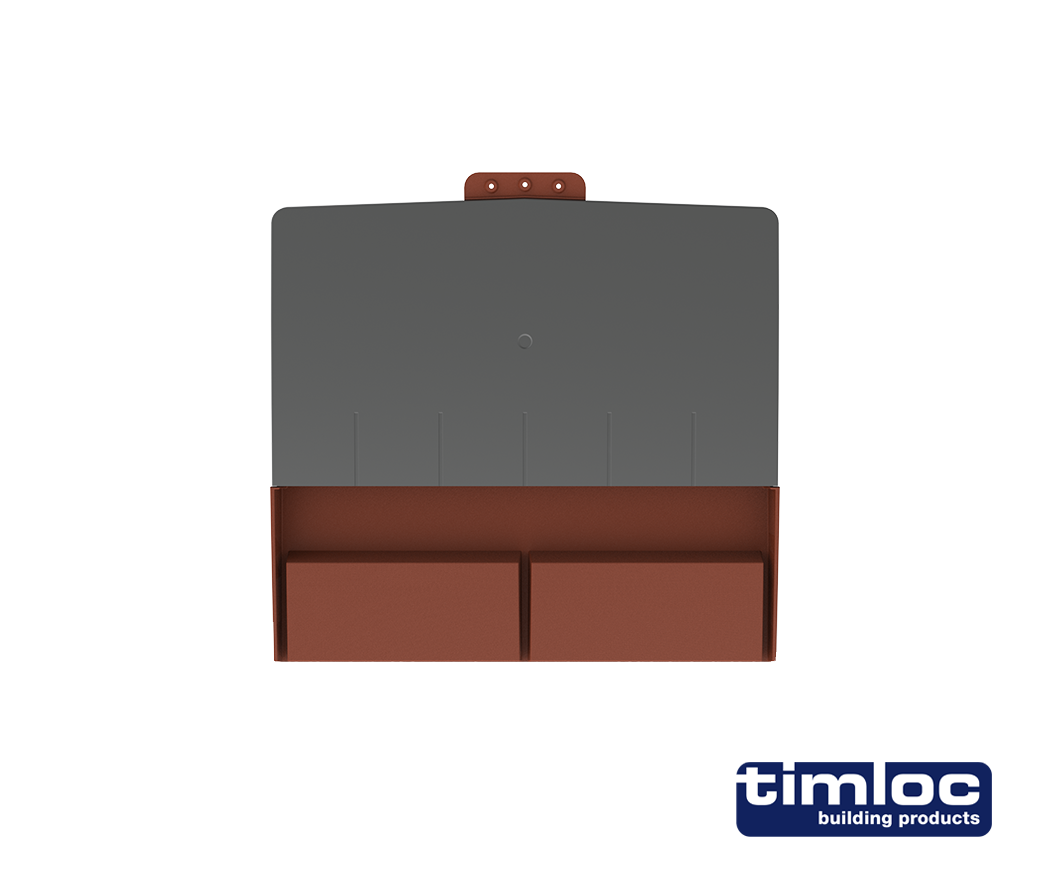

Low Profile Plain Roof Tile Vent

Plain roof tile vent to enable ventilation directly into a roof space or connect to a ducted ventilation system

Uses

• On roofs with Plain roof tiles
• Enables ventilation directly into a roof space
• Can also be connected to a ducted ventilation system inside the building

Available in single, box and pallet quantities.

Product Description	Colour	Single Code
Low Profile Plain Tile Vent	Terracotta	RTV-LPPTE
Low Profile Plain Tile Vent	Brown	RTV-LPPBR
Low Profile Plain Tile Vent	Grey	RTV-LPPGR
Low Profile Plain Tile Vent	Red	RTV-LPPRD

Object Data

1 Revision

Last Updated

11/09/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

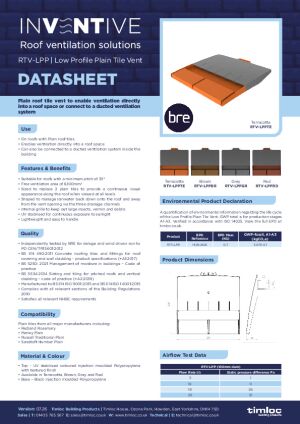

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/timloc-rtv-lpp/document/object-user-guide
Accessibility Performancen/a
Assembly CodeB1020
Asset TypeFixed
BIM Object NameTimloc_RoofTileVent_LowProfilePlain
Classification NameUniclass2015
Classification ValuePr_30_59_29_73
Code Performancen/a
ColorBrown
Constituentsn/a
Created Bysales@timloc.co.uk
Created On2024-09-01T09:00:00
Default Elevation0 mm
Depth120 mm
DescriptionPlain roof tile vent to enable ventilation directly into a roof space or connect to a ducted ventilation system
Documentation Certificateswww.bimstore.co/products/timloc-rtv-lpp/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/timloc-rtv-lpp/document/installation-guide
Documentation Literaturewww.bimstore.co/products/timloc-rtv-lpp/document/product-literature
Documentation Maintenancewww.bimstore.co/products/timloc-rtv-lpp/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/timloc-rtv-lpp/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Height323 mm
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeUSERDEFINED
KeynoteH60/840
ManufacturerTimloc Building Products
Manufacturer NameTimloc Building Products
MaterialPolypropylene
ModelRTV-LPP | Low Profile Plain Tile Vent
Model NumberRTV-LPPBR
Model ReferenceRTV-LPP | Low Profile Plain Tile Vent
NBS DescriptionRoof slope ventilator tiles
NBS Object NameTimloc - Roof slope ventilator tiles
NBS Office Master Tagn/a
NBS Reference45-20-75/375
Nominal Depth120 mm
Nominal Height327 mm
Nominal Length334 mm
Production Year2024
Referenced StandardBS EN 490:2011 Concrete roofing tiles and fittings for roof covering and wall cladding – product specifications (+A1:2017). BS 5250: 2021 Management of moisture in buildings – Code of practice. BS 5534:2014 Slating and tiling for pitched roofs and vertical cladding – code of practice (+A2:2018). Manufactured to BS EN ISO 9001:2015 and BS EN ISO 14001:2015. Complies with all relevant sections of the Building Regulations 2010. Satisfies all relevant NHBC requirements.
Replacement Costn/a
Secondary MaterialTimloc_VentTile_Black
ShapeRectangular
Size334 (W) x 327 (H) x 120 (D)
Spare Partsn/a
Type CommentsBrown - RTV-LPPBR
Type NameBrown - RTV-LPPBR
URLtimloc.co.uk/products/rtv-lpp-low-profile-plain-tile-vent/
Vent MaterialTimloc_Brown
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@timloc.co.uk
Warranty Guarantor Partssales@timloc.co.uk
Width333 mm
