Felt Support Trays

by Timloc Building Products

Download Add to collection

Description

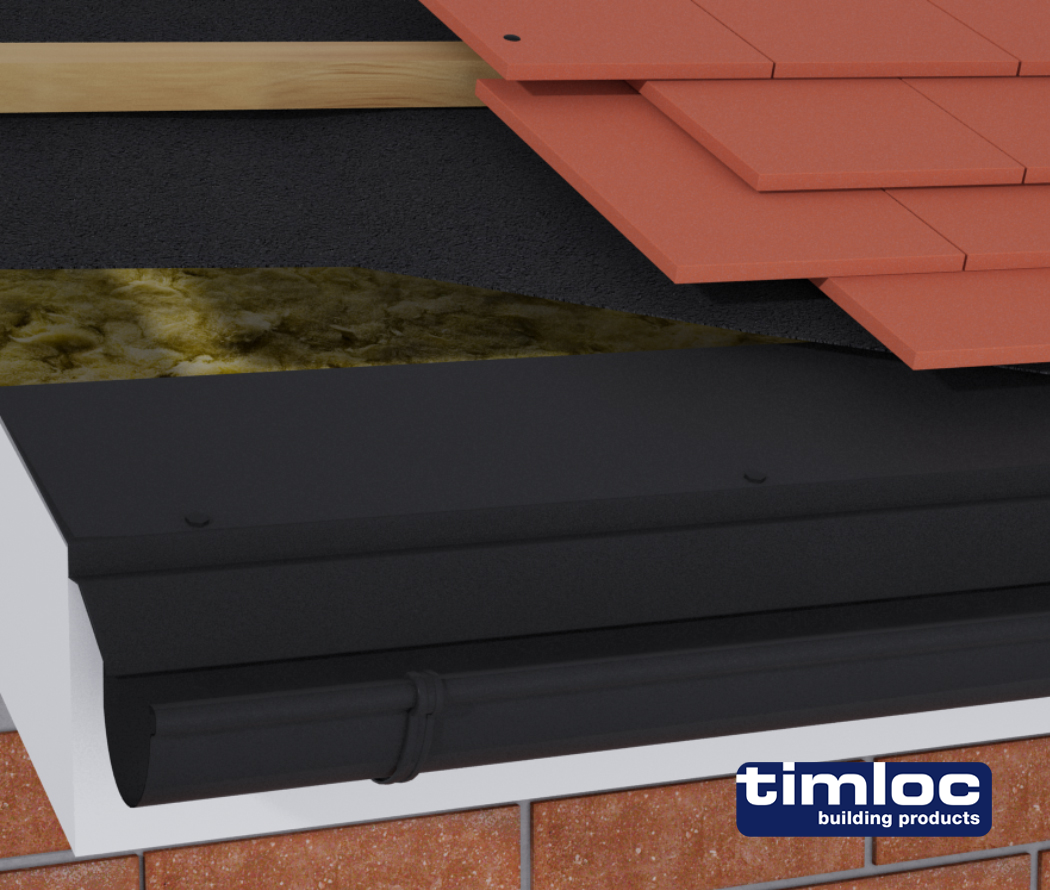

Suitable for new build and remedial work, the felt support trays are designed to prevent damage to roofing felt at the eaves of a roof and to replace worn or perished roofing felt.

Uses:

At the eaves of a roof to support and protect roofing felt
For remedial work to replace worn or perished roofing felt

Product Title	Length	Product Code
Eaves Vent Protector	1.5m	3017
Felt Support Tray	600mm	1128

Object Data

1 Revision

Last Updated

11/09/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

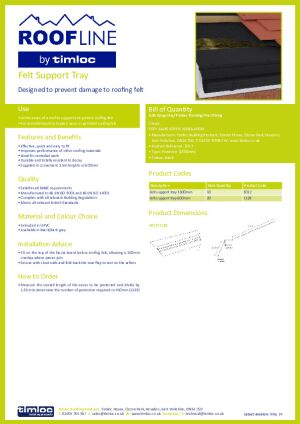

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/timloc-felt-support-trays/document/object-user-guide
Accessibility Performancen/a
Assembly CodeB1020
Asset TypeFixed
BIM Object NameTimloc_FeltSupportTray_Continuous
Classification NameUniclass2015
Classification ValuePr_30_59_29_62
Code Performancen/a
ColorBlack
Constituentsn/a
Created Bysales@timloc.co.uk
Created On2024-09-01T09:00:00
Default Elevation0 mm
DescriptionDesigned to prevent damage to roofing felt.
Documentation Certificateswww.bimstore.co/products/timloc-felt-support-trays/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/timloc-felt-support-trays/document/installation-guide
Documentation Literaturewww.bimstore.co/products/timloc-felt-support-trays/document/product-literature
Documentation Maintenancewww.bimstore.co/products/timloc-felt-support-trays/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/timloc-felt-support-trays/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeUSERDEFINED
KeynoteH60/840
ManufacturerTimloc Building Products
Manufacturer NameTimloc Building Products
MaterialPVC-U
ModelFelt Support Trays
Model Number3017
Model ReferenceFelt Support Trays
NBS DescriptionPlastics eaves underlay support
NBS Object NameTimloc - Plastics eaves underlay support
NBS Office Master Tagn/a
NBS Reference45-20-75/310
Nominal Depth60 mm
Nominal Height500 mm
Nominal Length1500 mm
Primary MaterialTimloc_Terracotta
Production Year2024
Referenced StandardHelping to meet BS 5534 Code of practice for slating and tiling. Complies with all other relevant regulations and standards. Manufactured to BS EN ISO 9001 and BS EN ISO 14001. Independently tested and complies with BS8612.
Replacement Costn/a
ShapeRectangular
Size1500 (W) x 500 (H) x 60 (D)
Spare Partsn/a
Type Comments1500mm - 3017
Type Name1500mm - 3017
URLtimloc.co.uk/products/felt-support-trays/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@timloc.co.uk
Warranty Guarantor Partssales@timloc.co.uk
