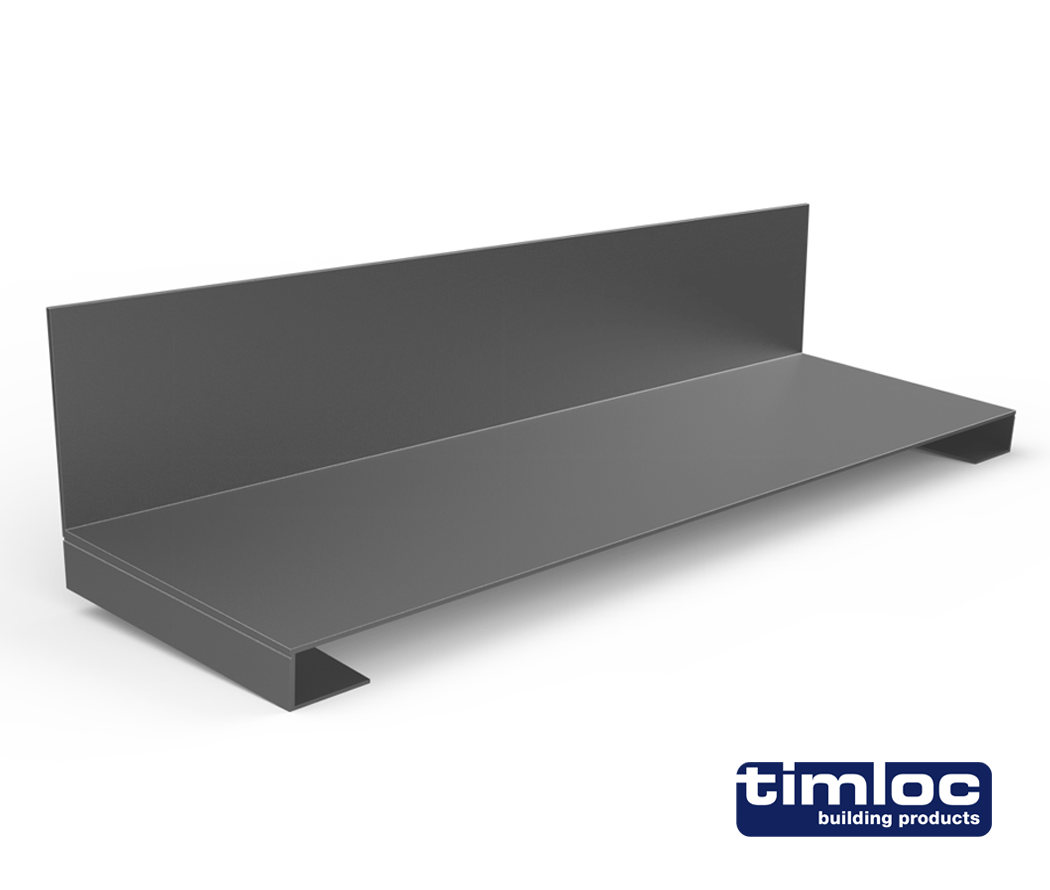

Ambi-Soaker – Thin Leading Edge

by Timloc Building Products

Download Add to collection

Description

Ambi-Soaker Universal Dry Fix Abutment Soaker for Large Format Thin Leading Edge Tiles.

Installation Guide available here.

Uses:

Thin Leading Edge Tiles
Abutments between a pitched roof and a wall
New build or refurbishment projects

Description	Colour	Product Code
Ambi-Soaker for Large Format Thin Leading Edge Tiles	Grey	AS-TLE

Object Data

1 Revision

Last Updated

11/09/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

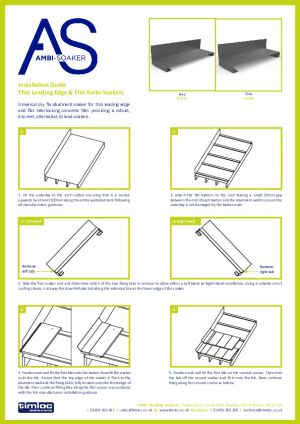

Installation Guide

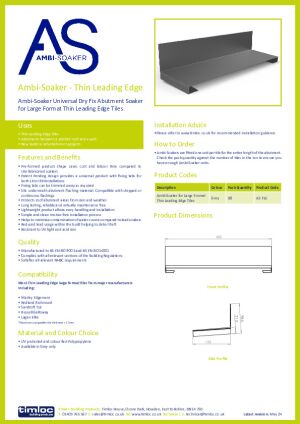

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/timloc-ambi-soaker-thin-leading-edge/document/object-user-guide
Accessibility Performancen/a
Assembly CodeB1020
Asset TypeFixed
BIM Object NameTimloc_AmbiSoaker_ThinLeadingEdge
Classification NameUniclass2015
Classification ValuePr_35_90_93_27
Code Performancen/a
ColorGrey
Constituentsn/a
Created Bysales@timloc.co.uk
Created On2024-09-01T09:00:00
Default Elevation1219 mm
DescriptionPre-formed, universal dry fix abutment soaker for large format thin leading edge tiles with a maximum compatible tile thickness of 17 mm.
Documentation Certificateswww.bimstore.co/products/timloc-ambi-soaker-thin-leading-edge/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/timloc-ambi-soaker-thin-leading-edge/document/installation-guide
Documentation Literaturewww.bimstore.co/products/timloc-ambi-soaker-thin-leading-edge/document/product-literature
Documentation Maintenancewww.bimstore.co/products/timloc-ambi-soaker-thin-leading-edge/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/timloc-ambi-soaker-thin-leading-edge/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeUSERDEFINED
KeynoteH62/660
ManufacturerTimloc Building Products
Manufacturer NameTimloc Building Products
MaterialPolypropylene
ModelAmbi-Soaker – Thin Leading Edge
Model NumberAmbi-Soaker – Thin Leading Edge
Model ReferenceAS-TLE
NBS DescriptionDry fixing abutments
NBS Object NameTimloc - Dry fixing abutments
NBS Office Master Tagn/a
NBS Reference45-80-90/372
Nominal Depth125 mm
Nominal Height99 mm
Nominal Length432 mm
Orientation86.00 °
Primary MaterialTimloc_Black
Production Year2024
Referenced StandardManufactured to BS EN ISO 9001 and BS EN ISO14001. Complies with all relevant sections of the Building Regulations. Satisfies all relevant NHBC requirements.
Replacement Costn/a
Roof BasedYes
ShapeRectangle
Size432 (W) x 125 (D) x 99 (H)
Spare Partsn/a
Type CommentsAS-TLE
Type NameAS-TLE
URLtimloc.co.uk/products/ambi-soaker-thin-leading-edge/
Wall BasedNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@timloc.co.uk
Warranty Guarantor Partssales@timloc.co.uk
