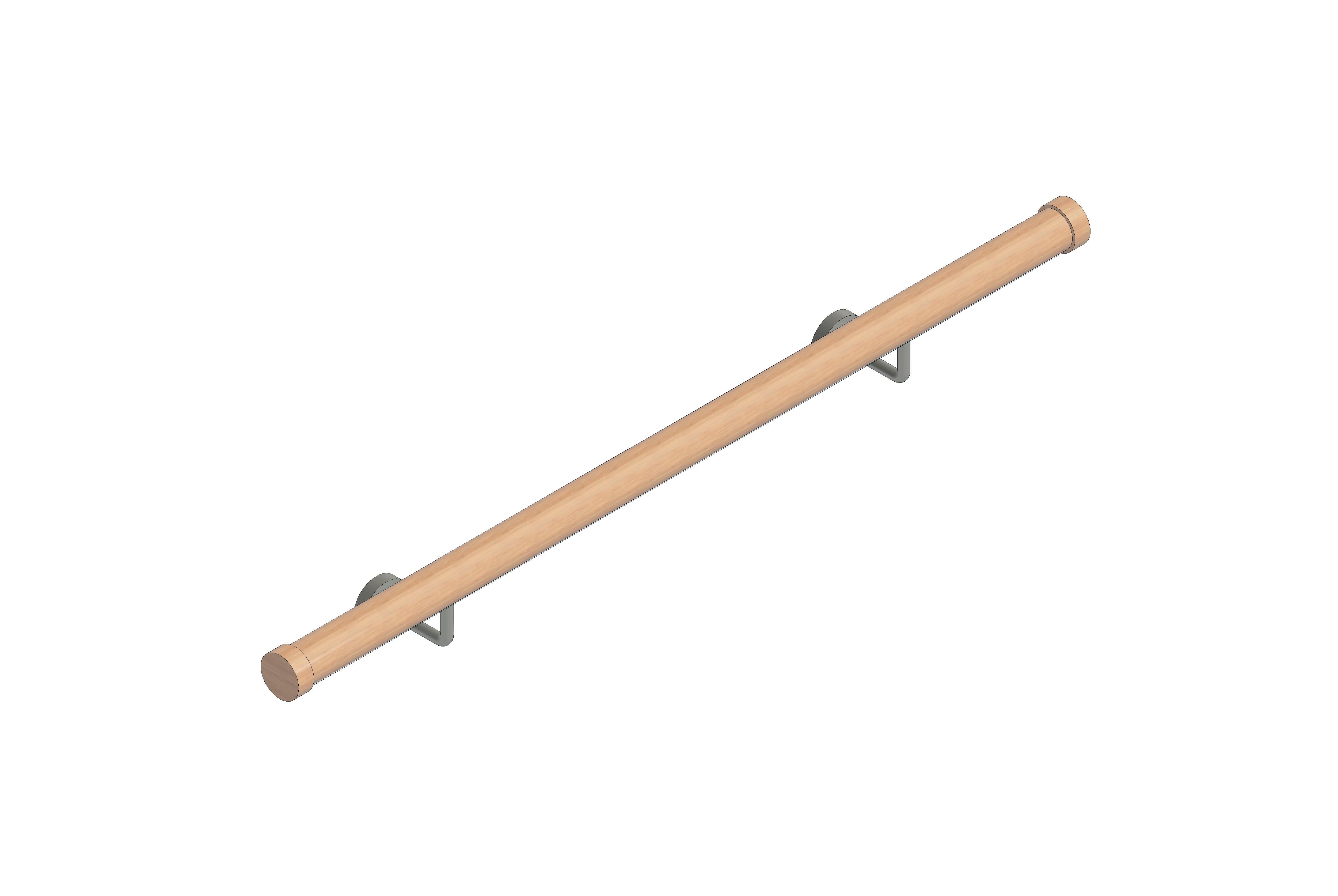

Round Timber Handrail

by TecLED

Download Add to collection

Description

General Details

The handrail is crafted from fine Tasmanian Oak and is available in a range of colours: Natural, Walnut and Black Japan.

43mm diameter handrail lengths available up to 4500mm but can be joined with standard stainless steel joiners, or snaked around corners with 45º or 90º elbow joiners.

Round Finish.

Specifications

Code: PROTASOAKHR
Watts: 9.6w/14.4w
CCT: 2700K/3000K/4000K/5000K
CRI: >90
IP Rating: IP40
Lumens per metre: 720/1100
Materials: Tasmanian Oak/Stainless Steel Components
Dimmable: OPTIONAL
Control Gear: Remote LED Driver
VOLTS: 12V

Object Data

1 Revision

Last Updated

24/06/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Installation Guide

Product Literature

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision0
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/round-timber-handrail/document/object-user-guide
Accessibility Performancen/a
Assembly CodeC2010400
Asset TypeFixed
Beam Angle120º
BIM Object NameTecLED_Handrail_RoundTimber

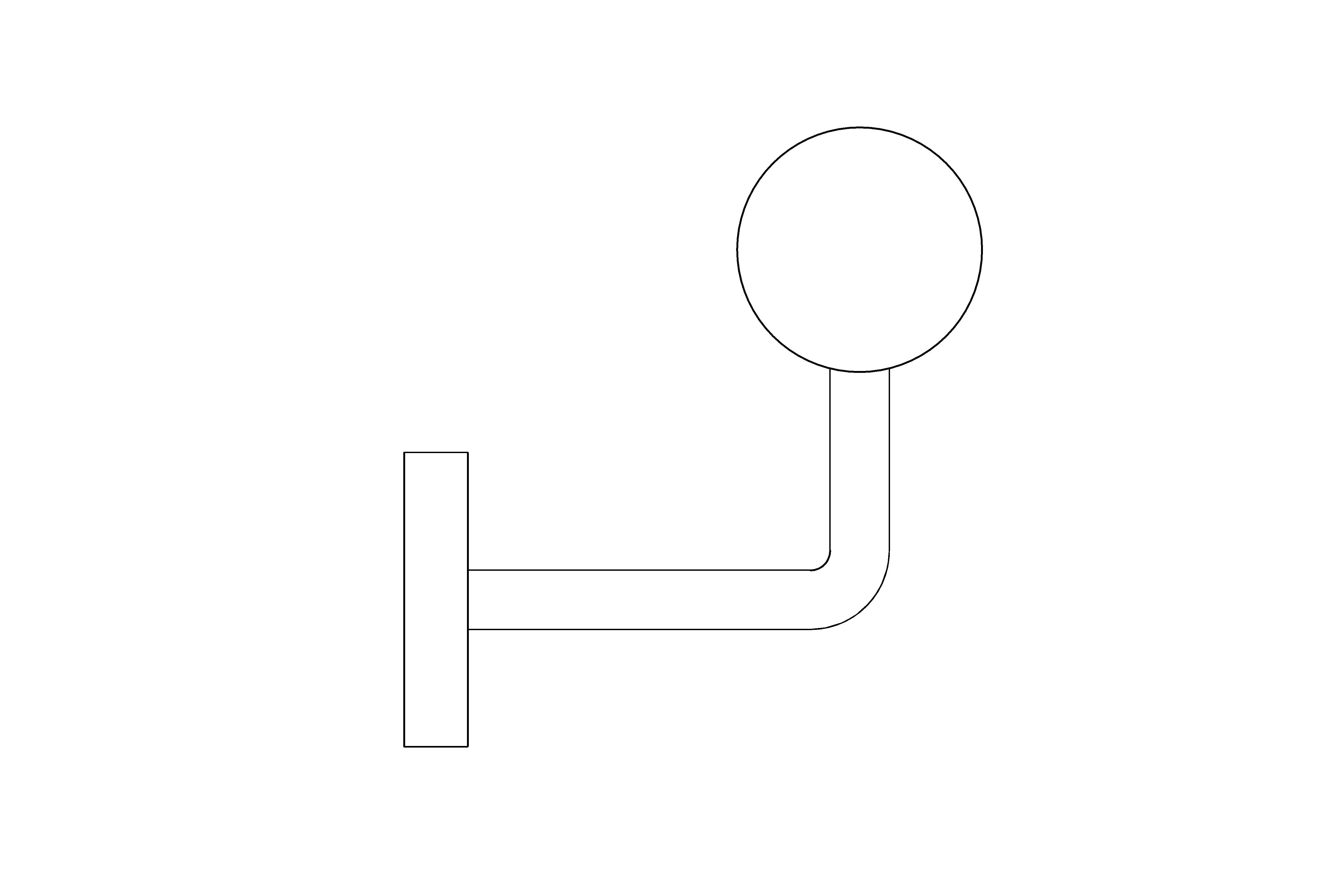

Bracket Base Depth13 mm
Bracket Base Diameter60 mm
Bracket Height50 mm
CCT2700K|3000K|3500K|4000K|6000K|CCT Adjustable |RGB|RGBW|Dim To Warm
Classification NameUniclass2015
Classification ValuePr_25_30_36_96
Code Performancen/a
ColorUser Defined
Constituentsn/a
Created Bysales@tecled.com.au
Created On2024-05-01T09:00:00
CRI>90
Default Elevation0 mm

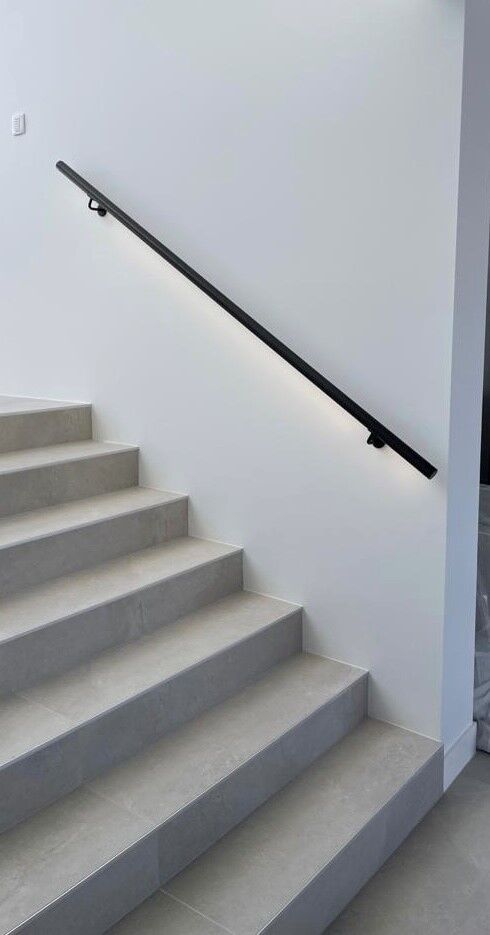

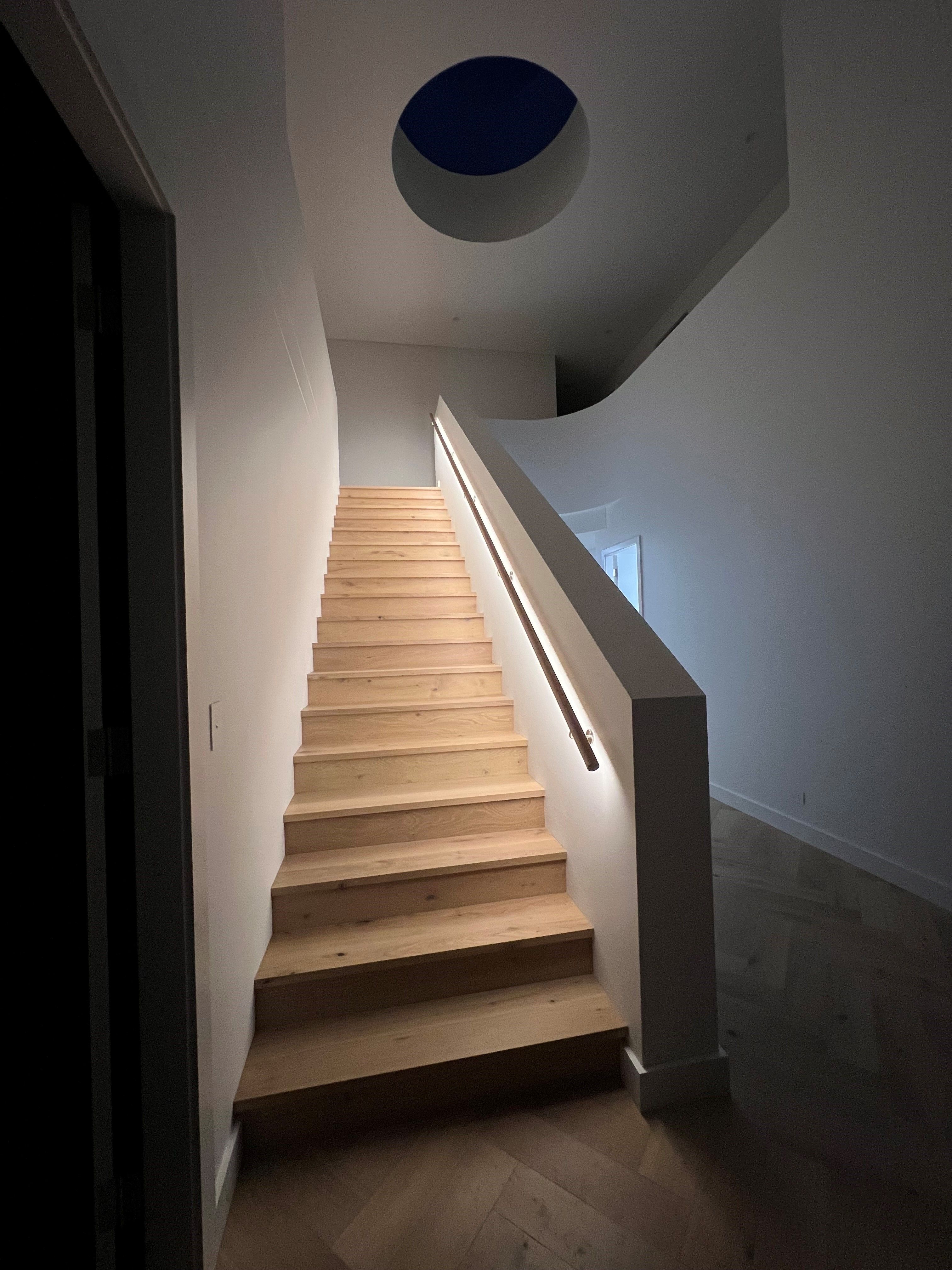

DescriptionTecLED’s Round Illuminated Handrail system provides unobtrusive, continuous lighting to areas where light is needed most - passages, staircases and access ramps. The handrails are crafted from fine Tasmanian Oak (or American Oak) and are available in a range of colours. 43mm diameter handrail lengths available up to 5000mm (3000mm for American Oak) but can be joined with standard straight joiners, or snaked around corners with 35º or 90º elbow joiners.
DimmableDali | Triac | Casambi
Distance Between Brackets1005 mm
Documentation Certificateswww.bimstore.co/products/round-timber-handrail/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/round-timber-handrail/document/installation-guide
Documentation Literaturewww.bimstore.co/products/round-timber-handrail/document/product-literature
Documentation Maintenancewww.bimstore.co/products/round-timber-handrail/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/round-timber-handrail/document/technical-data-sheet
Driver LocationRemote
Duration UnitYears
Expected Life0
FeaturesCCT: 2700K|3000K|3500K|4000K|6000K
FinishClear|Black Japan|Walnut|White
Graden/a
Handrail Depth Centre80 mm
Handrail Diameter43 mm
Ifc Export AsIfcRailing
Ifc Export TypeIfcRailingType.HANDRAIL
IP RatingIP40
KeynoteL30
Left Joiner End CapJoiner : End Cap
Left Joiner No JoinerJoiner : No Joiner
Light MaterialGlass, Clear Glazing
Light Width20 mm
Lumens750 | 1100
ManufacturerTecLED
Manufacturer NameTecLED
MaterialTasmanian Oak/Stainless Steel Components
ModelRound Timber Handrail
Model NumberRound Timber Handrail
Model ReferenceRound Timber Handrail
NBS DescriptionWood handrails
NBS Object NameTecLED - Wood handrails
NBS Office Master Tagn/a
NBS Reference45-70-70/470
Nominal Depth43 mm
Nominal Height43 mm
Nominal Length0 mm
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Right Joiner End CapJoiner : End Cap
Right Joiner No JoinerJoiner : No Joiner
Shapen/a
Sizeø43mm
Spare Partsn/a
Total Depth Of Handrail115 mm
Type CommentsRound Timber Handrail
Type NameRound Timber Handrail
URLwww.tecled.com.au/led-product/led-tasmanian-oak-handrail/
Voltage12vDC | 24vDC
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@tecled.com.au
Warranty Guarantor Partssales@tecled.com.au
Watts9.6W | 14.4W
