Rectangular Timber Handrail

by TecLED

Download Add to collection

Description

General Details

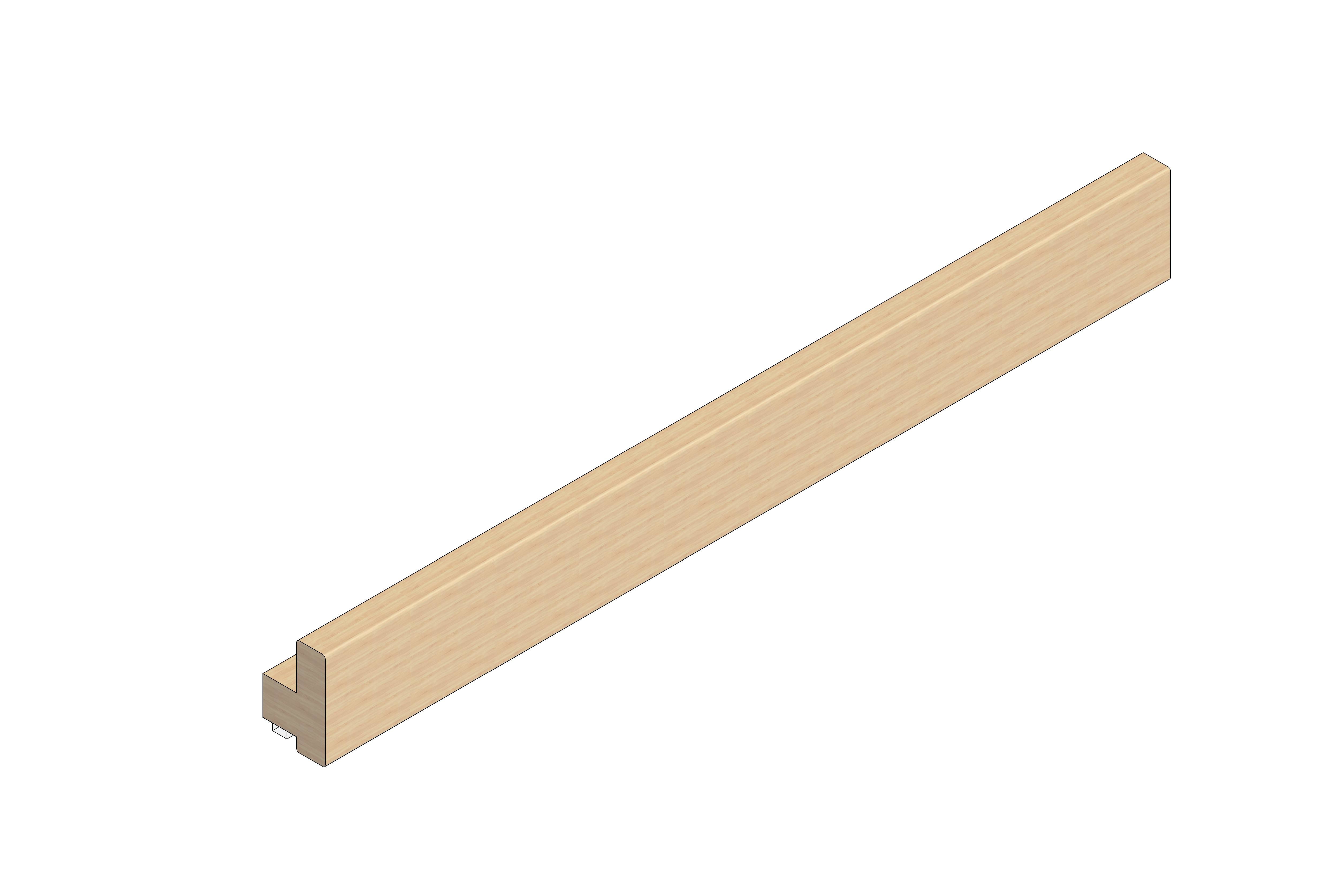

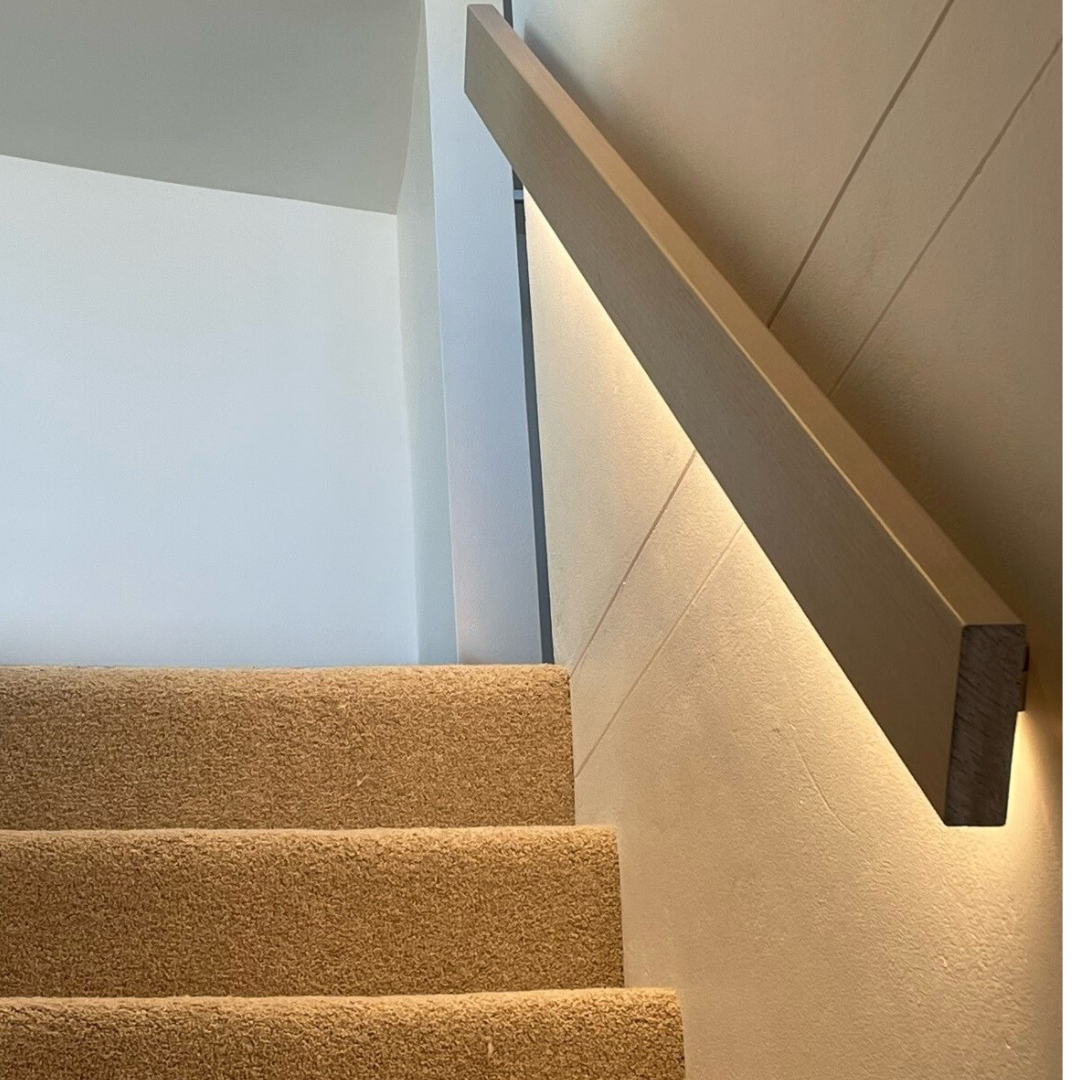

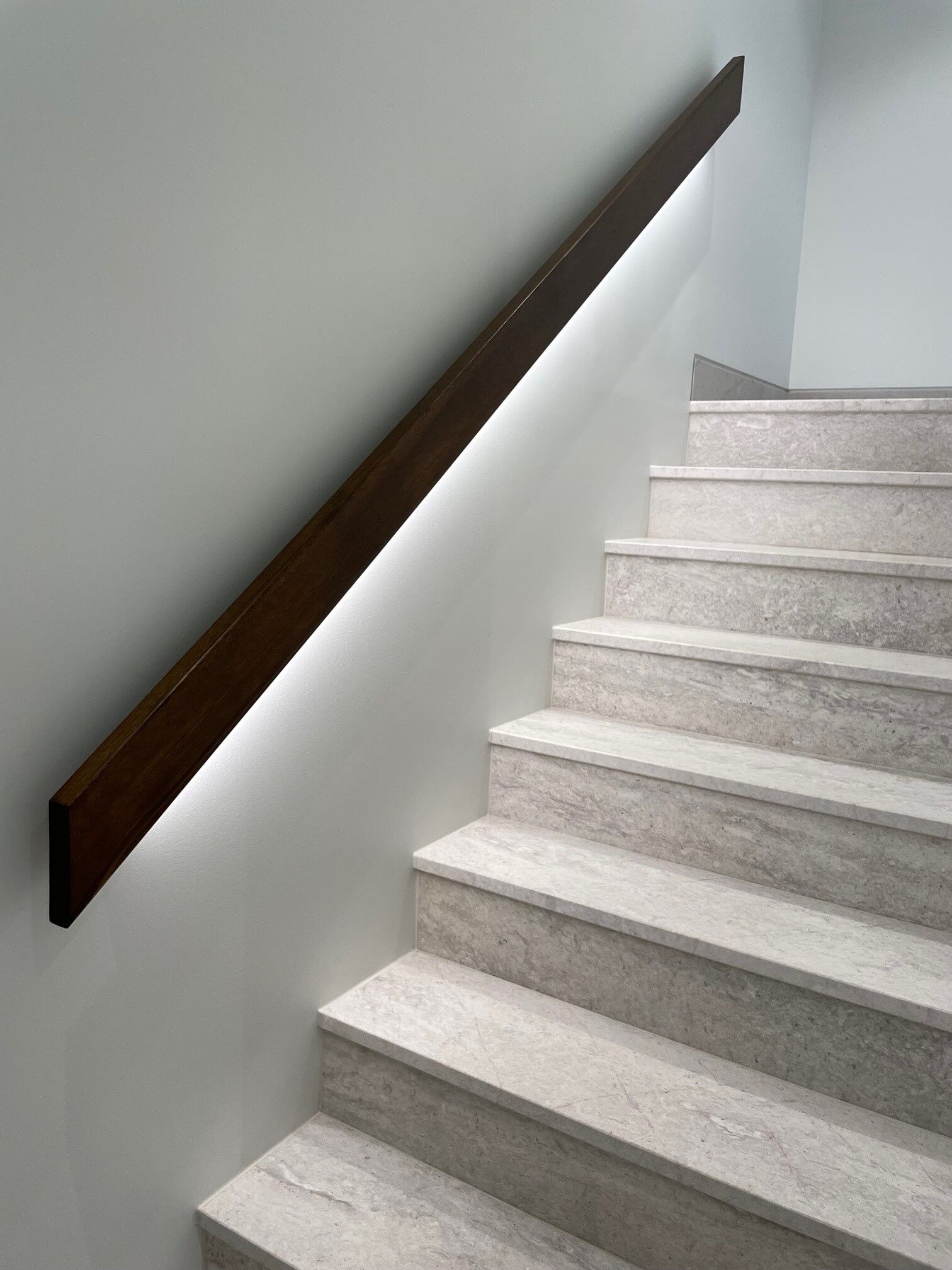

TecLED’s Flat/Rectangular Illuminated Handrail system offers a conventional, sturdy and bold option for lighting a staircase.

Crafted from solid Tasmanian Oak, this rail may be designed to compliment any staircase pitch or design.

Flat/Rectangular Finish.

Specifications

Code: PROLEN14
Watts: 9.6w/14.4w
CCT: 2700K/3000K/4000K/5000K
CRI: >95
IP Rating: IP40
Lumens per metre: 720/1100
Materials: Tasmanian Oak/Stainless Steel Components
Dimmable: Triac or Dali
Control Gear: Remote LED Driver
VOLTS: 24V

Object Data

1 Revision

Last Updated

24/06/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Installation Guide

Product Literature

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision0
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/rectangular-timber-handrail/document/object-user-guide
Accessibility Performancen/a
Assembly CodeC2010400
Asset TypeFixed
Beam Angle90º
BIM Object NameTecLED_Handrail_RectangularTimber
Bracket Width40 mm
CCT2700K|3000K|3500K|4000K|6000K|CCT Adjustable |RGB|RGBW|Dim To Warm
Classification NameUniclass2015
Classification ValuePr_25_30_36_96
Code Performancen/a
ColorUser Defined
Constituentsn/a
Created Bysales@tecled.com.au
Created On2024-05-01T09:00:00
CRI>90
Default Elevation0 mm
DescriptionTecLED’s Rectangular Illuminated Handrail system offers a conventional, sturdy and bold option for lighting a staircase or walkway. Crafted from solid Tasmanian Oak, this rail may be designed to compliment almost any staircase pitch or design. Supplied with split baton for secure installation. Plumb cut ends available.
DimmableDali | Triac | Casambi
Documentation Certificateswww.bimstore.co/products/rectangular-timber-handrail/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/rectangular-timber-handrail/document/installation-guide
Documentation Literaturewww.bimstore.co/products/rectangular-timber-handrail/document/product-literature
Documentation Maintenancewww.bimstore.co/products/rectangular-timber-handrail/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/rectangular-timber-handrail/document/technical-data-sheet
Driver LocationRemote
Duration UnitYears
Expected Life0
FeaturesCCT: 2700K|3000K|3500K|4000K|6000K|CCT Adjustable |RGB|RGBW|Dim To Warm
FinishClear|Black Japan|Walnut|White
Graden/a
Handrail Height115 mm
Handrail Width34 mm
Ifc Export AsIfcRailing
Ifc Export TypeIfcRailingType.HANDRAIL
IP RatingIP40 | IP65
KeynoteL30
Light MaterialGlass, Clear Glazing
Light Width17 mm
Lumens750 | 1100
ManufacturerTecLED
Manufacturer NameTecLED
MaterialTasmanian Oak or American Oak/Stainless Steel Components
ModelRectangular Timber Handrail
Model NumberRectangular Timber Handrail
Model ReferenceRectangular Timber Handrail
NBS DescriptionWood handrails
NBS Object NameTecLED - Wood handrails
NBS Office Master Tagn/a
NBS Reference45-70-70/470
Nominal Depth34 mm
Nominal Height115 mm
Nominal Length0 mm
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Shapen/a

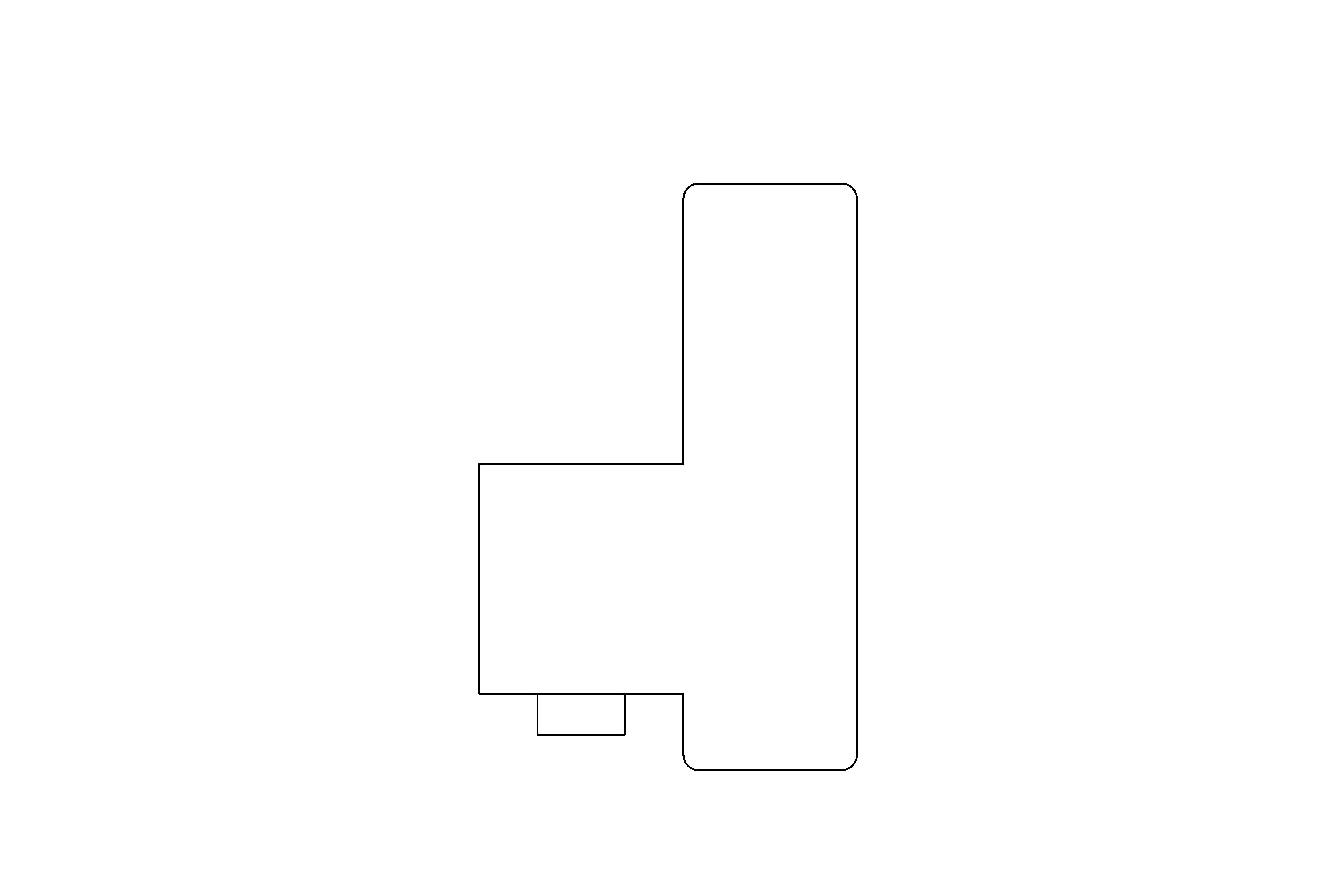

Size115mm (H) x 34mm (D)
Spare Partsn/a
Total Depth Of Handrail74 mm
Type CommentsRectangular Timber Handrail
Type NameRectangular Timber Handrail
URLwww.tecled.com.au/led-product/flat-timber-handrail/
Voltage12vDC | 24vDC
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@tecled.com.au
Warranty Guarantor Partssales@tecled.com.au
Watts9.6W | 14.4W
