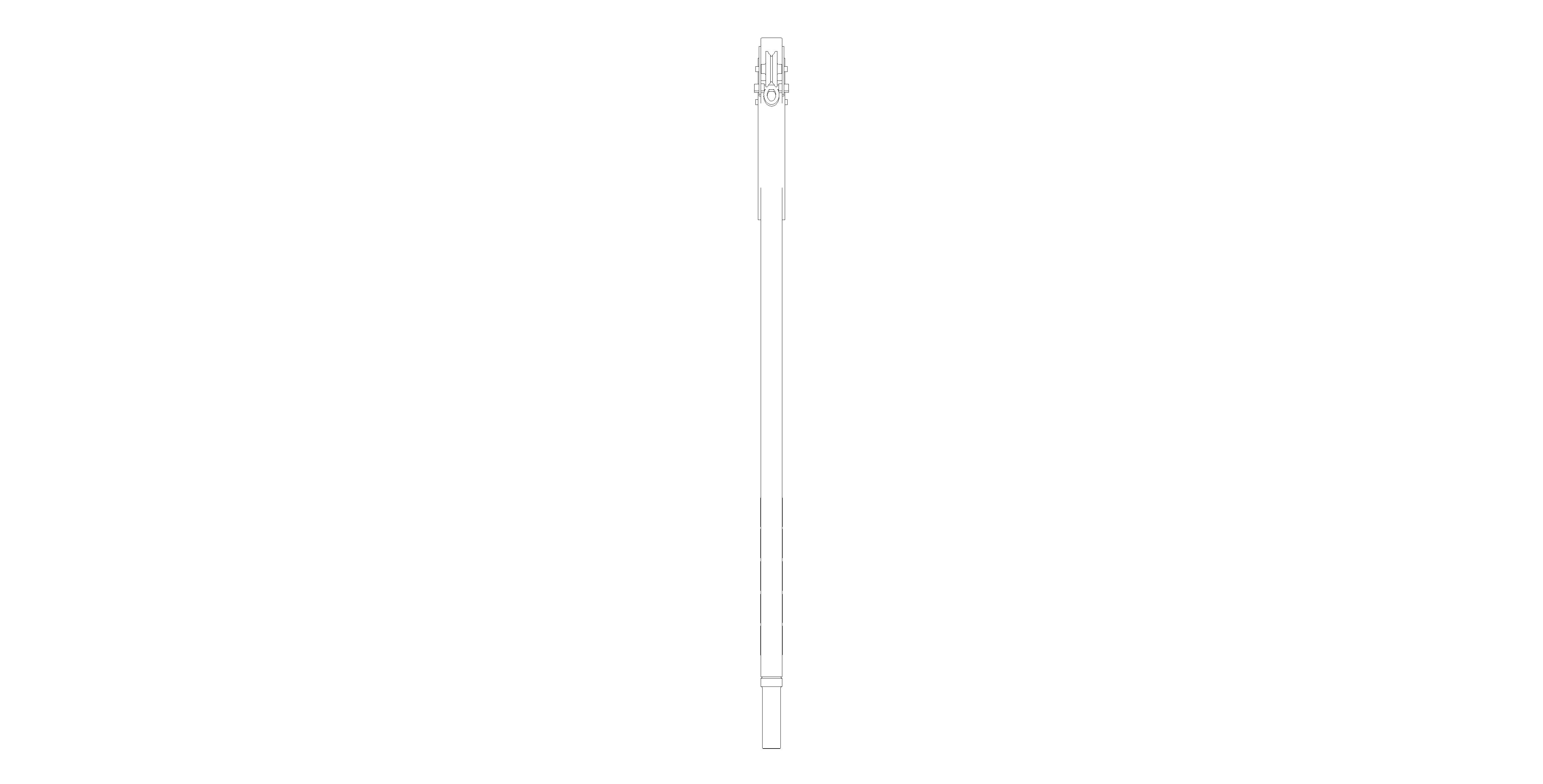

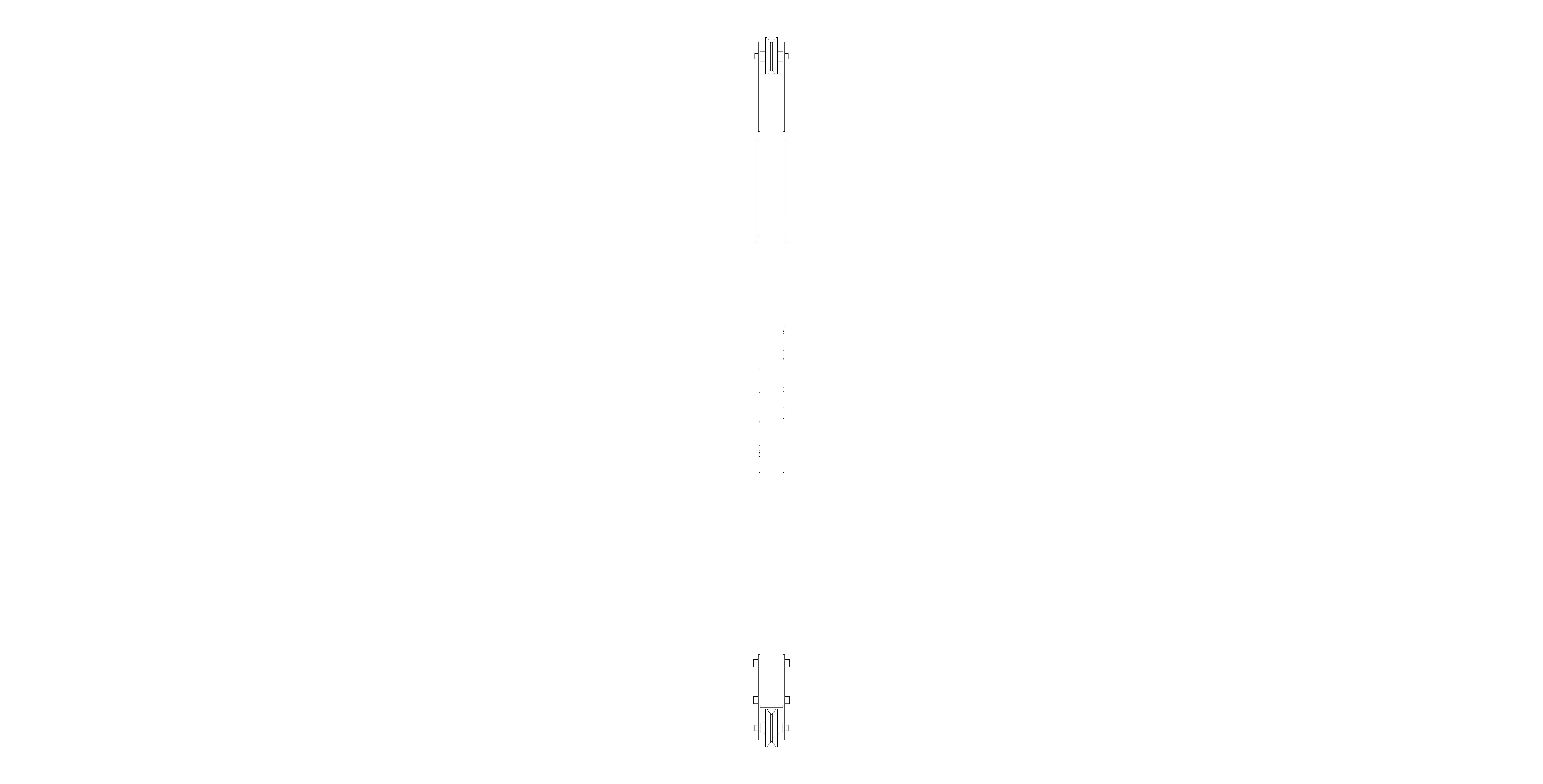

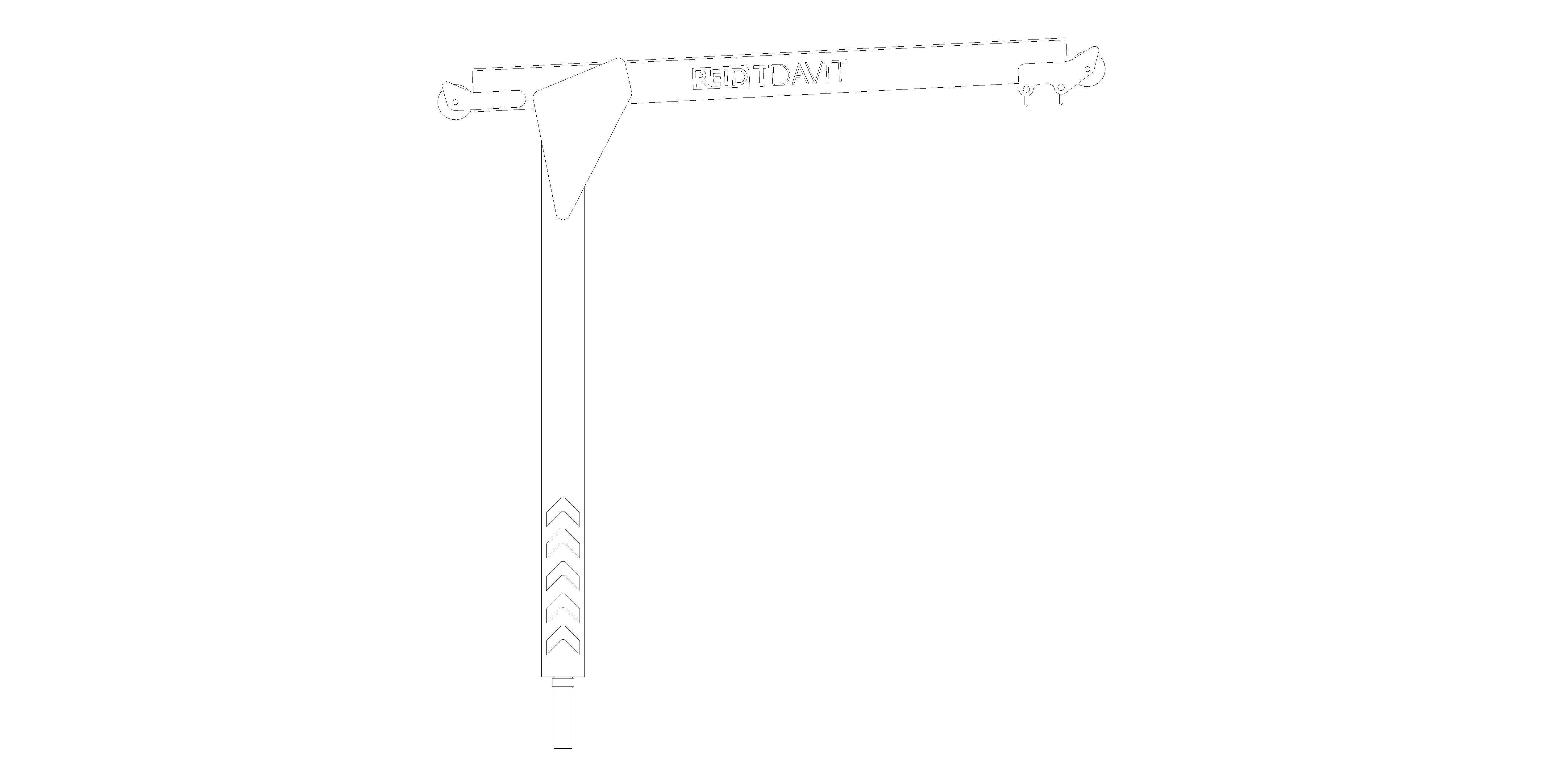

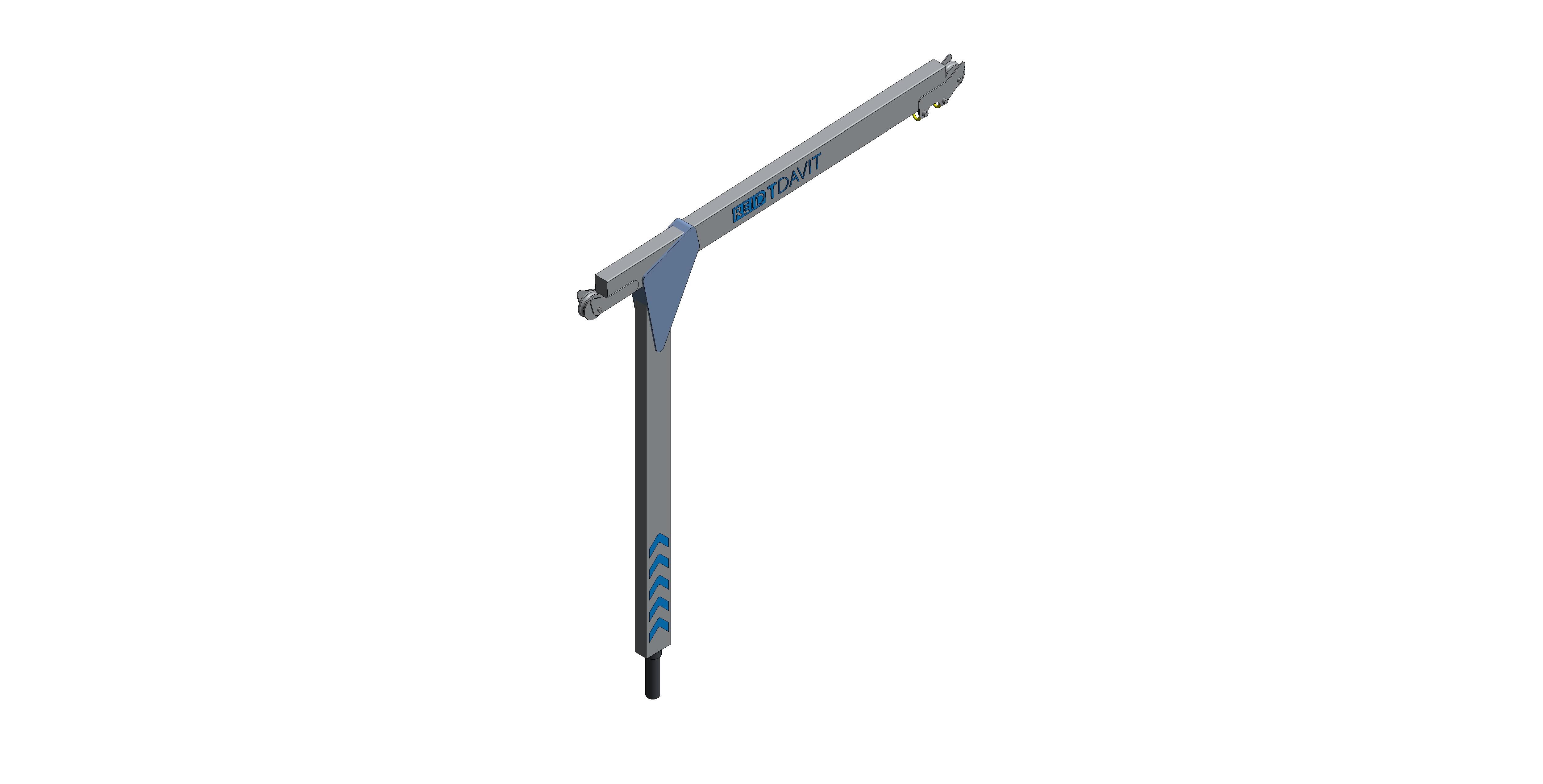

T DAVIT Winched (TDW)

by Reid Lifting

Download Add to collection

Description

Our TDAVIT - TDW has been designed primarily for goods and personnel lifting applications. It is also tested as a fall protection anchor device.

It has been tested to and is fully compliant with EN795:2012 and meets the requirements of IRATA ICOP. The TDW is suitable for use with our range of sockets and portable bases.

Object Data

1 Revision

Last Updated

23/02/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Literature

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/reid-lifting-tdw/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD1010300
Asset TypeFixed
BIM Object NameREIDLifting_TDAVIT_TDW_Winched
Bridge Mount Socket SBMA0500BridgeMountSocket : SBMA0500
Bridge Mount Socket SBMG0500BridgeMountSocket : SBMG0500
Bridge Mount Socket SBMS0500BridgeMountSocket : SBMS0500
Classification NameUniclass2015
Classification ValueTE_30_30_10
Code Performancen/a
ColorGrey & Blue
Constituentsn/a
Created Byenquiries@reidlifting.com
Created On2023-03-01T09:00:00
DescriptionOur TDAVIT - TDW has been designed primarily for goods and personnel lifting applications. It is also tested as a fall protection anchor device.
Documentation Certificateswww.bimstore.co/products/reid-lifting-tdw/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/reid-lifting-tdw/document/installation-guide
Documentation Literaturewww.bimstore.co/products/reid-lifting-tdw/document/product-literature
Documentation Maintenancewww.bimstore.co/products/reid-lifting-tdw/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/reid-lifting-tdw/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
FinishPainted Steel
Graden/a
Ifc Export AsIfcBuildingElementProxy
Ifc Export TypeIfcBuildingElementProxy
KeynoteN
ManufacturerREID Lifting
Manufacturer NameREID Lifting
MaterialSteel
ModelTDAVIT TDW - Winched
Model NumberTDWA1A0
Model ReferenceTDAVIT TDW - Winched
NBS DescriptionConstruction lifts
NBS Noten/a
NBS Object NameREID Lifting - Construction lifts
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Production Year2023
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Side Mount Socket SSMA0500SideMountSocket : SSMA0500
Side Mount Socket SSMG0500 V2SideMountSocket : SSMG0500V2
Side Mount Socket SSMG1000SideMountSocket : SSMG1000
Side Mount Socket SSMS0500 V2SideMountSocket : SSMS0500V2
Side Mount Socket SSMS1000SideMountSocket : SSMS1000
Sizen/a
Socket Extension SE0500SocketExtension : SE0500
Socket Extension SE0800SocketExtension : SE0800
Socket Extension SE1100SocketExtension : SE1100
Socket Pedestals SP0500SocketPedestals : SP0500
Socket Pedestals SP0800SocketPedestals : SP0800
Socket Pedestals SP1100SocketPedestals : SP1100
Spare Partsenquiries@reidlifting.com
Top Beam Length694 mm
Top Mount Socket STMA0500TopMountSocket : STMA0500
Top Mount Socket STMG0500 V2TopMountSocket : STMG0500V2
Top Mount Socket STMG1000TopMountSocket : STMG1000
Top Mount Socket STMS0500 V2TopMountSocket : STMS0500V2
Top Mount Socket STMS1000TopMountSocket : STMS1000
Type CommentsTDWA1A0
Type NameTDAVIT TDW - Winched
URLuk.reidlifting.com/
Vertical Beam Length883 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborenquiries@reidlifting.com
Warranty Guarantor Partsenquiries@reidlifting.com
