Glidevale Protect AV50 Abutment Vent

by Glidevale Protect

Download Add to collection

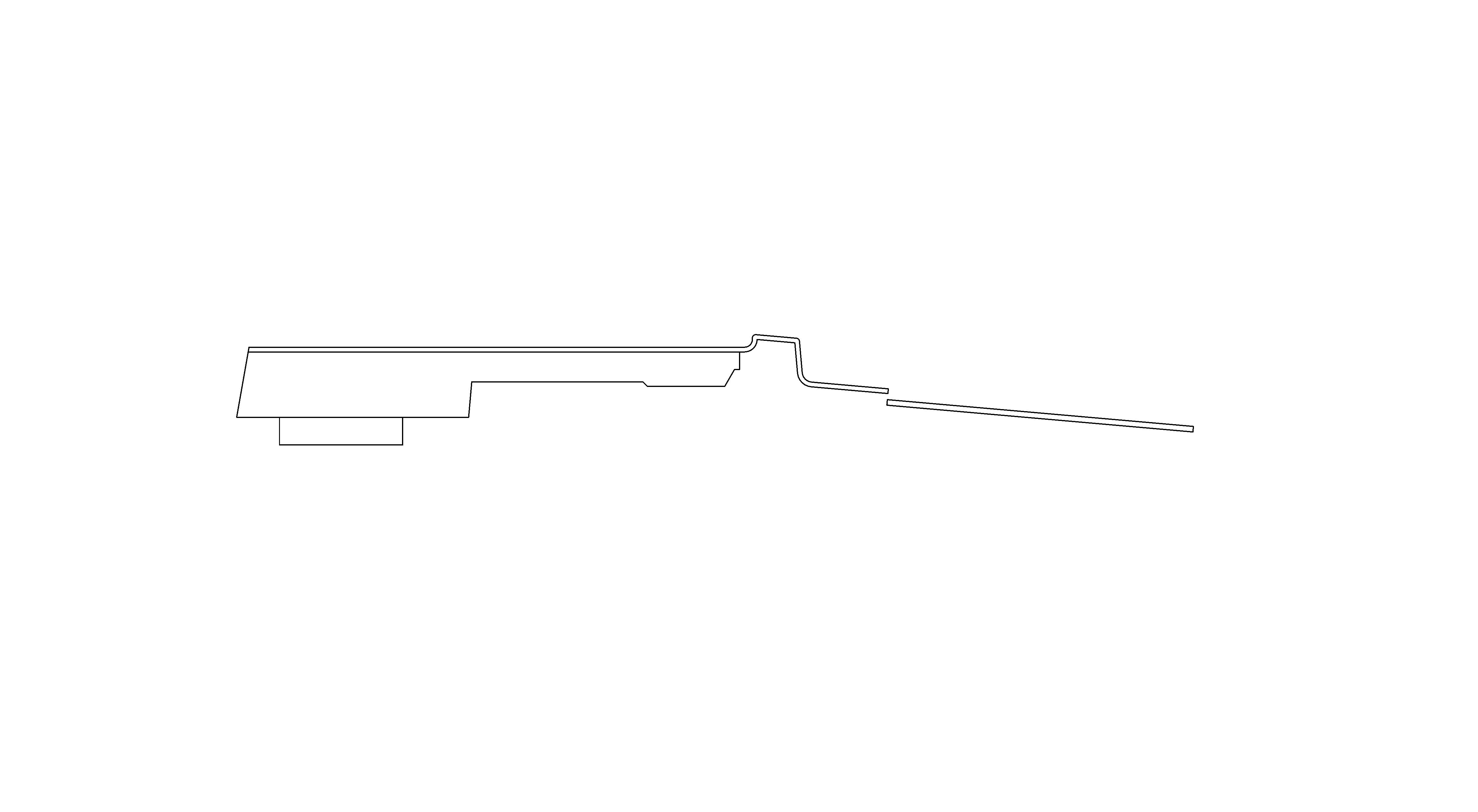

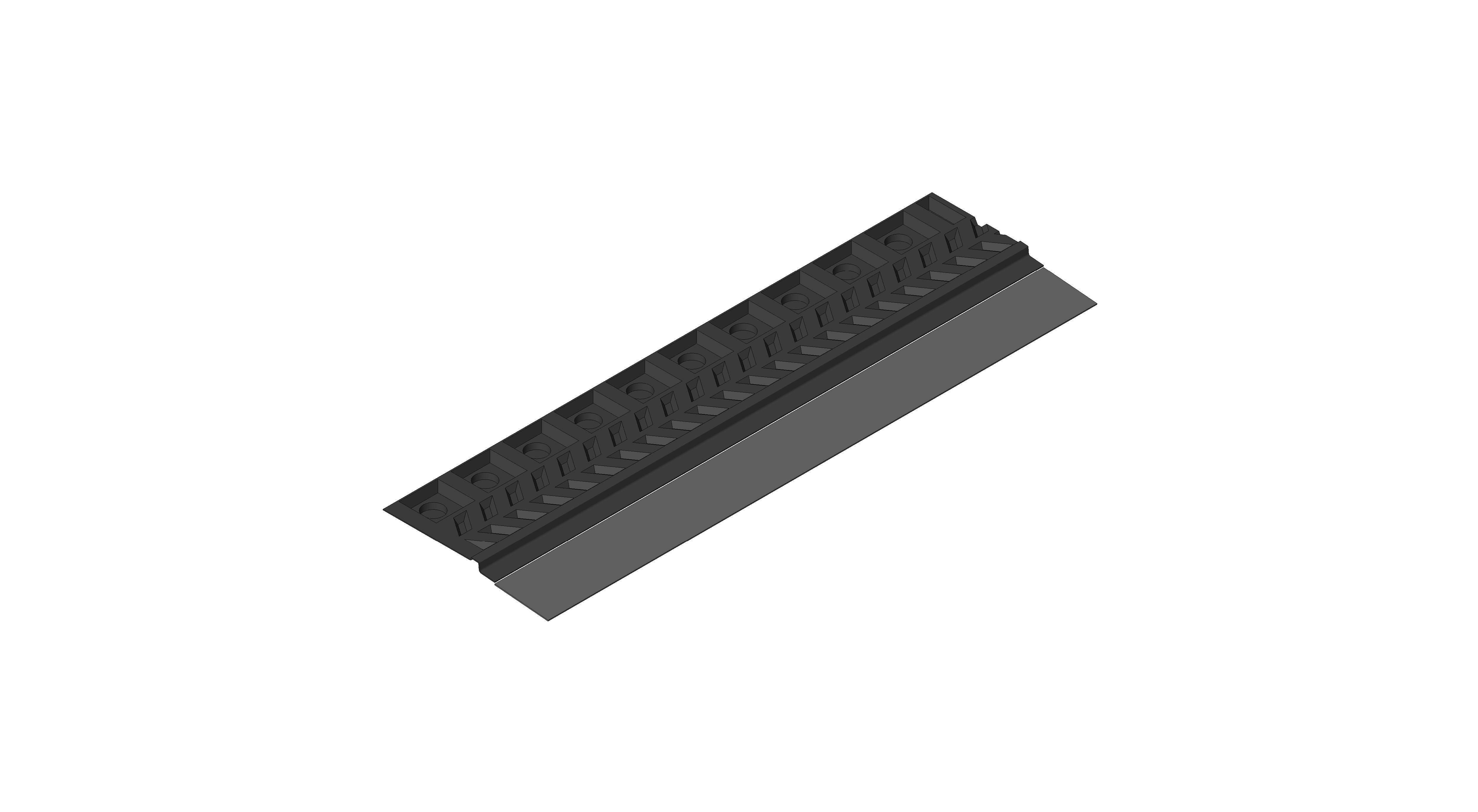

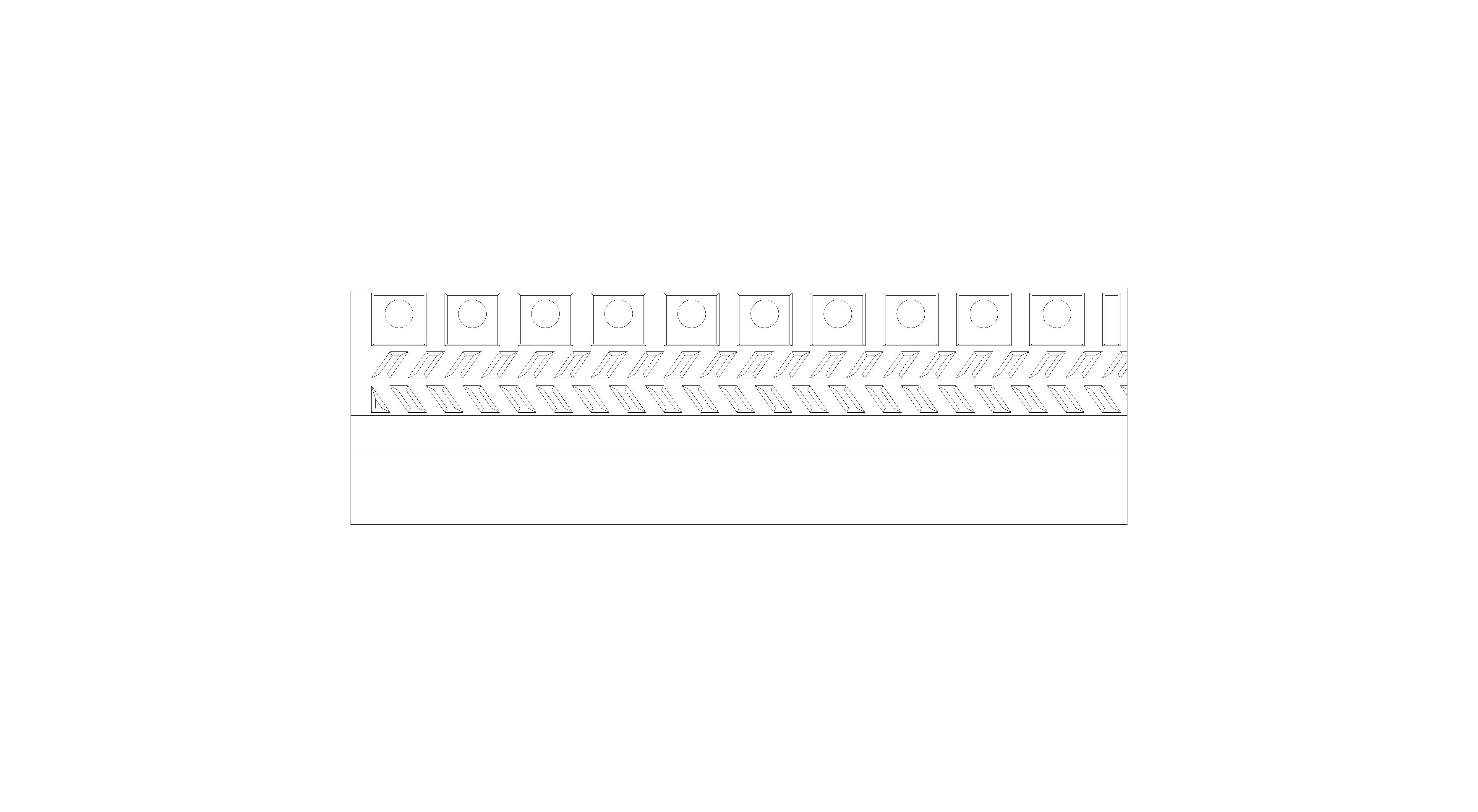

Description

Glidevale AV50 AbVent provides unobtrusive high-level ventilation and can be used in conjunction with traditional ‘lead roll’ details on plain tile and slate roofs. It is also particularly useful in top edge abutment situations where MR50 Monovent cannot be installed because of limited vertical clearance. AluFlash apron flashing for dressing over the tiles is supplied. AV50 AbVent can also be supplied with code 4 lead flashing to order.

Object Data

1 Revision

Last Updated

29/07/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

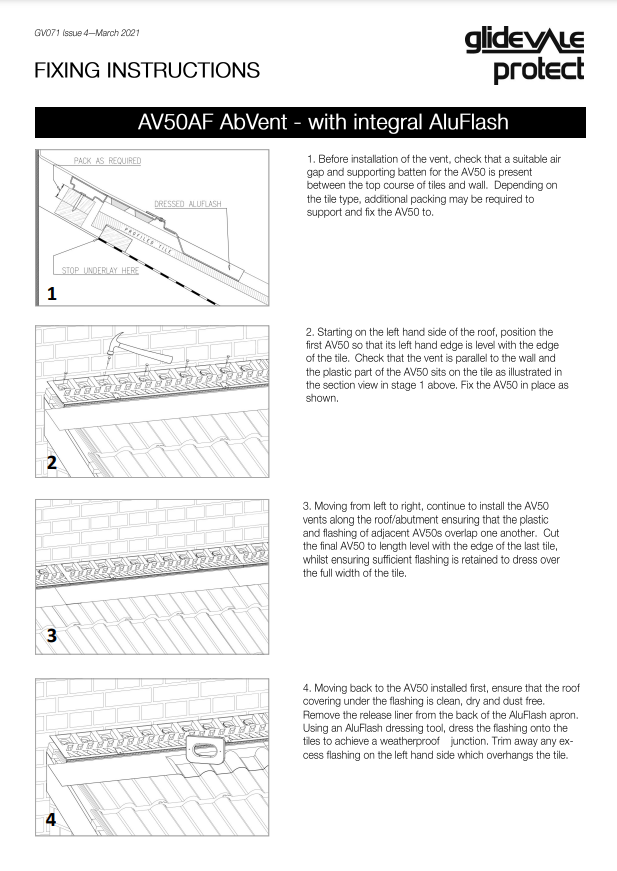

Installation Guide

Product Literature

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision0
_Distributed Bywww.bimstore.co/
_Object User Guideglidevaleprotect.com/technical-resources/downloads/
Accessibility Performancen/a
Assembly Coden/a
Asset TypeFixed
BIM Object NameWBR_GlidevaleProtect_AbutmentVentilators_AV50
Classification NameUniclass2015
Classification ValuePr_30_59_29_02
Code PerformanceBS EN ISO 9001
ColorBlack
ConstituentsHT Horizontal cavity trays
Created ByTechnical@glidevaleprotect.com
Created On2022-06-28T09:00:00
Default Elevation0 mm
DescriptionGlidevale Universal In-Line Flat Interlocking Tile Vent is a universal tile ventilator and terminal solution which matches with various interlocking tile profiles. It can be used for all roof space ventilation requirements and can also be adapted into an SVP and mechanical extraction terminal by means of a pipe adaptor and flexible pipe. (Matches: Condron Concrete Slate Tile, Lagan Flat, Marley Modern, Marley Duo Modern, Northstone Donard or Penrose, Quinn Western Slate, Redland Mini Stonewold, Redland Mockbond Mini Stonewold, Russell Grampian, Russell Highland, Sandtoft Calderdale, Sandtoft Dual Calderdale)
Documentation Certificatesglidevaleprotect.com/product/av50-abvent-ventilator/
Documentation Installation Guideglidevaleprotect.com/product/av50-abvent-ventilator/
Documentation Literatureglidevaleprotect.com/product/av50-abvent-ventilator/
Documentation Maintenanceglidevaleprotect.com/product/av50-abvent-ventilator/
Documentation Technicalglidevaleprotect.com/product/av50-abvent-ventilator/
Duration UnitYear
Expected Life0
FeaturesGuaranteed 5000mm²/m ventilation provision to comply with BS 5250 and Building Regulations. Minimum pitch 20°. Deluge and driving rain resistant as well as preventing large insect ingress. Suitable for installation under dormer window sills when insulation is at rafter level. Unobtrusive when installed. Hidden within the roof flashings. Available with integral AluFlash the revolutionary lead free alternative. Each unit overlaps the next to ensure integrity of flashing. Quick and easy to install.
