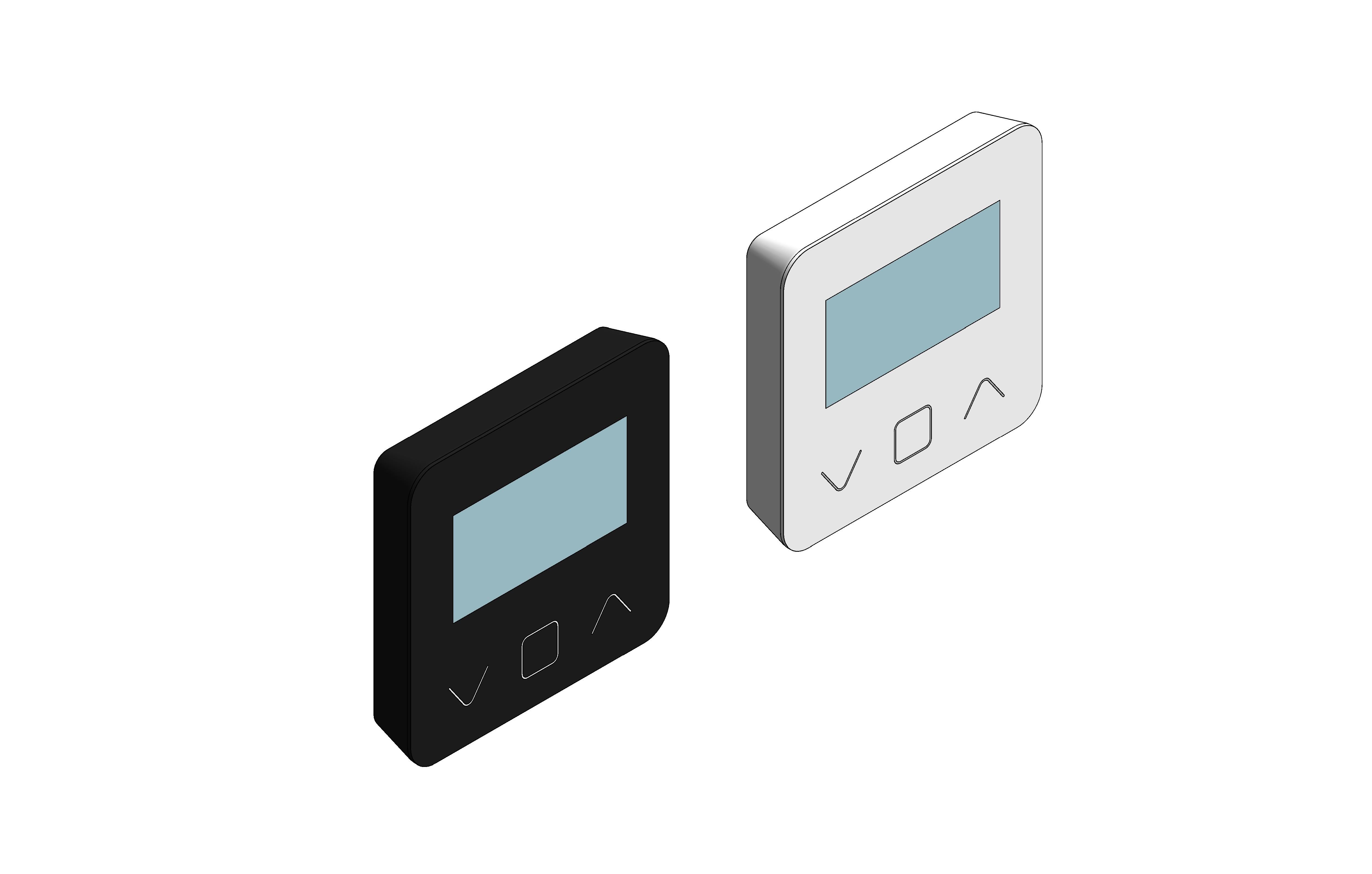

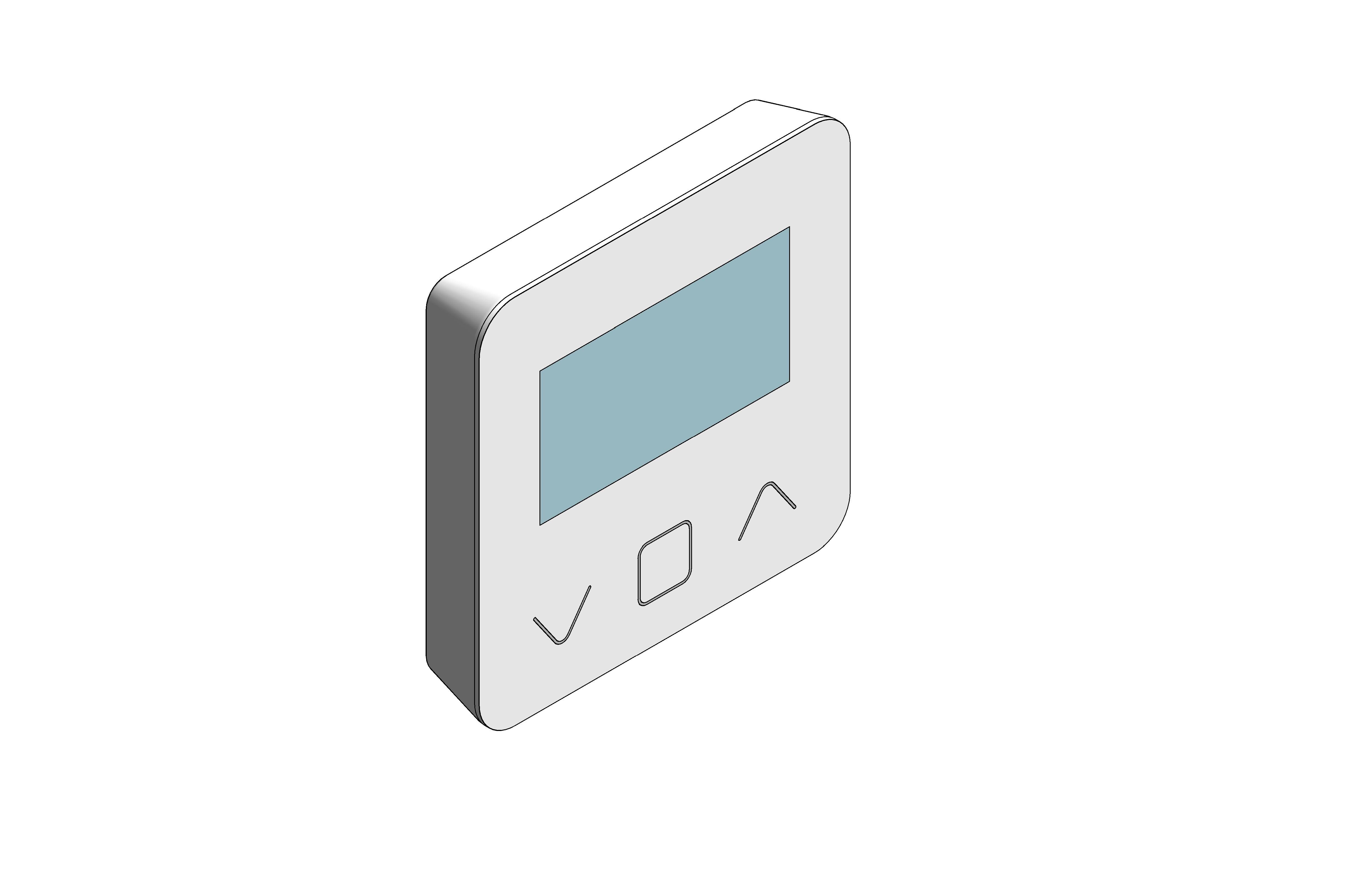

BT-D03-RF - Wireless digital room thermostat

Description

The Wireless digital room thermostat with back-light LCD display is designed to control different types of heating and cooling systems. Temperature control is based on internal sensors. An external sensor (SENSOR 10K - P01228) can be connected without any additional external power supply. A logo on display indicates whether the heating switch-on signal is activated.

Features:

• Thermostat compatible with WATTS Vision® system
• Smartphone App control capability when associated to Central Unit BT-CT02 RF
• LCD display with back-light
• 3 sensitive touch buttons
• Open window detection
• Different temperature modes setting
• Anti-freeze function
• Configurable Hysteresis or PWM regulation
• Pin Code & screws lock for public area
• Wall or Desk mounting with a stand (included)
• 2 parameter menus User and Pro

Technical Features

• Operating temperature 0÷40°C
• Shipping and storage temperature: -10°C to +50°C
• IP rating IP30
• Protection class Class II
• Temperature accuracy 0.1°C
• Regulation type : Proportional Band (PWM 2°C/10min) or Hysteresis 0.2°C to 3.0°C
• Temperature ranges: Comfort / Reduced / Anti-freeze 5÷37°C / 5÷37°C / 0.5÷10°C / (increments of 0.5°C)
• Power supply 2 AAA LR03 1.5V Alkaline, Life ~2 years
• Radio frequency 868 MHz, <10mW, Bidirectional communication
• Sensor Internal and/or external (opt.) NTC 10kW at 25°C
• Firmware version Shown on thermostat menu N°14
• Memory EEPROM non volatile
• Directives
• EMC 2014/30/EU
• RoHS 2011/65/EU
