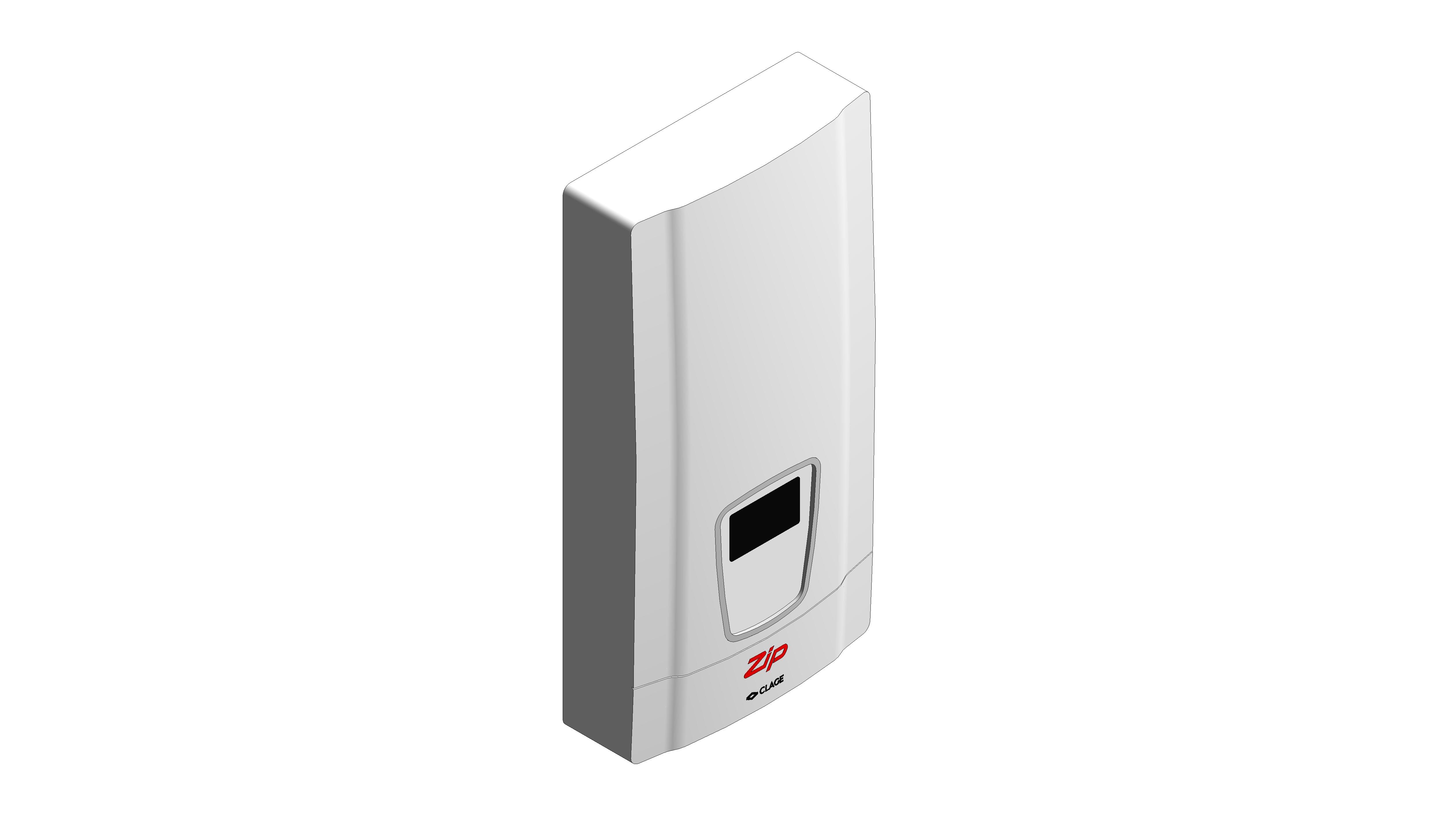

DSX Touch

by Zip Water

Download Add to collection

Description

DSX Touch Three Phase 18-27kW 26-39 amp

Order Code	DSX Touch - 50 Degree (CL2001)
	DSX Touch - 60 Degree (CL2509)

3 phase. Fully electronically controlled instantaneous water heater for single or multipoint applications. Servotronic control automatically regulates the water flow rate for optimum performance. No tempering valve required. The integrated real glass touch display allows individual user profile settings and temperature settings.

Object Data

1 Revision

Last Updated

23/10/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_Authorwww.zipwater.com/contact-us
_Authorized ByBS
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.zipwater.com/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/dsx-touch/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameZipAU_InstantaneousHotWater_DSXSeries
BracketMetal_BrushedStainlessSteel_Zip
Capacity50 DEG
Classification NameUniclass2015
Classification ValuePr_60_60_96_27
Code Performancen/a
ColorWhite
Connection Diameter13 mm
Constituentsn/a
Created Bywww.zipwater.com/contact-us
Created On2024-05-24T09:00:00
CW ConnectionYes
Default Elevation0 mm
Depth96 mm
DescriptionDSX Touch Three Phase 18-27kW 26-39 amp 50 deg C
Documentation Certificateswww.bimstore.co/products/dsx-touch/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/dsx-touch/document/installation-guide
Documentation Literaturewww.bimstore.co/products/dsx-touch/document/product-literature
Documentation Maintenancewww.bimstore.co/products/dsx-touch/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/dsx-touch/document/technical-data-sheet
Duration UnitYears
Electrical Cover BlackPlastic_Black_Zip
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Height468 mm
HW ConnectionYes
Ifc Export AsIfcElectricApplianceType
Ifc Export TypeWATERHEATER
KeynoteN13
Light Grey TrimPlastic_Grey_Zip
Logo BlackPlastic_Black_Zip
Logo RedPlastic_Red_Zip
ManufacturerClage
Manufacturer NameZip AU
Manufacturer Spec CodeCL2001
Manufacturer URL Product Specificwww.zipwater.com/shop/hot-water/
MaterialPlastic
ModelCL2001
Model NumberCL2001
Model ReferenceDSX Touch Three Phase 18-27kW 26-39 amp 50 deg C
NBS DescriptionElectric instantaneous water heaters
NBS Noten/a
NBS Object NameZIP - Electric instantaneous water heaters
NBS Office Master Tagn/a
NBS Reference90-15-35/400
Nominal Depth96 mm
Nominal Height468 mm
Nominal Length239 mm
PipesCopper
Primary MaterialMetal_PowderCoat_Zip_White
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Screen BlackPlastic_Black_Zip
ShapeRectangle
Sizen/a
Spare Partswww.zipwater.com/contact-us
Type CommentsDSX Touch Three Phase 18-27kW 26-39 amp 50 deg C
Type NameDSX Touch Three Phase 18-27kW 26-39 amp 50 deg C
URLwww.zipwater.com/shop/hot-water/
Vent ConnectionNo
Voltage400 V
Warranty Descriptionwww.zipwater.com/support/warranty-policy
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborwww.zipwater.com/contact-us
Warranty Guarantor Partswww.zipwater.com/contact-us
Waste ConnectionNo
Width239 mm
