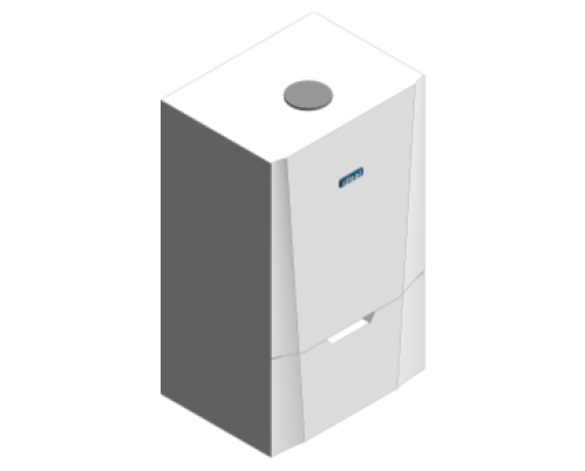

Vogue GEN2 Combi

by Ideal Heating

Download Add to collection

Description

The Vogue GEN2 comes complete with premium components and up to a 10 year warranty* for complete peace of mind. Vogue GEN2 is the ideal solution for customers looking for a premium product for their home.

Backlit 3.5" LCD full colour display
Built using premium components
Low lift weight from 30.7kg (up to 2.6kg lighter than previous models)
Multi-function buttons for simplified end user operation
Easy to read pressure gauge
Uniform control opening across all Ideal products
Quick installation - single piece unit

Ideal boilers are available in a number of sizes and styles to suit a wide range of new domestic boiler installations;

Combi C26
Combi C32
Combi C40

This download is for Ideal Boilers Residential Vogue GEN2 Combi

* 10 year warranty when installed with an Ideal system filter. 8 year parts and labour as standard. Terms and conditions apply.

Object Data

2 Revision

Last Updated

18/10/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorKris Atkinson
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Access Clearance Bottom100 mm
Access Clearance Front450 mm
Access Clearance Left3 mm
Access Clearance Rear0 mm
Access Clearance Right3 mm
Access Clearance Top165 mm
Additional Technical Detailsn/a
Adjustable To LPGYes
Air Inlet Connection Size0 mm
Assembly CodeD3020100
Asset TypeFixed
BIM Object NameMEP-Boiler-Ideal_Heating-Residential-Vogue_GEN2_Combi_C26
BMS LinksNo
Boiler FinishIdeal_Heating-Residential_White
Burner Control TypeSwitched Live
Classification NameUniclass2015
Classification ValuePr_60_60_08_34
ColourWhite
Condensate Drain Size75 mm
Condensate Drain Type75mm
Control TypeOpentherm, Weather compensation
Created Byenquiries@idealboilers.com
Created On2017-02-22-T00:00:00
DescriptionThe Vogue Combi GEN2 range of boilers are wall mounted, full sequence, automatic spark ignition, low water content, fanned flue, high efficiency, condensing, combination gas boilers.
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/2057
Documentation Maintenancespecifi.bimstore.co.uk/document/share/2057
Documentation Technicalspecifi.bimstore.co.uk/document/share/2059
Drain Connection Size0 mm
Drain Connection Type21.5mm
Duration UnitYears
Environmental Product DeclarationEST endorsed
ErP Energy LabelA
ErP Rated Efficiency At Full Load89.7
ErP Rated Efficiency At Part Load97.7
ErP Seasonal Efficiency92.7
Expected Life0
External MaterialMild Steel / Polymer
FeaturesBacklit 3.5” LCD full colour display, Built using premium components, 8 year warranty as standard, 10 year warranty when installed with an Ideal System Filter, Low lift weight from 32.4kg (up to 2.6kg lighter than previous models), Multi-function buttons for simplified end user operation, Easy to read pressure gauge, Uniform control opening across all Ideal products, Quick installation – single piece unit
FinishPainted
Flow And Return Connection Size22 mm
Flow And Return Connection Type22mm copper compression
Flue Connection Size100 mm
Frequency50 Hz
Fuel Connection Size22 mm
Fuel Connection Type22mm copper compression
Fuse RatingExternal: 3A Internal: 4A time delay
Gas Consumption Rate1.869
Gross Weight32.40 kg
Heater OperationCondensing
Heat Exchanger MaterialStainless Steel
Height From Floor900 mm
Ifc Export AsPset_BoilerTypeCommon
Ifc Export TypeIfcBoilerType
InterlocksNo
IP RatingIP20
KeynoteT32
Location Of ManufacturerHull, England
ManufacturerIdeal Boilers
Manufacturer AddressIdeal Boilers, PO Box 103, National Avenue, Kingston Upon Hull, East Yorkshire, HU5 4JN
Manufacturer Fax01482 448858
Manufacturer Tel01482 492251
Manufacturer NameIdeal Boilers
MaterialMild Steel
Maximum Oil Inlet Pressure0
Maximum Operating Pressure2.5
Maximum Power Consumption94
Minimum Flow Rate At 20 C Temperature Differential12.9
Minimum Oil Inlet Pressure0
Minimum Operating Pressure1
ModelVogue GEN2 Combi
Model NumberVogue GEN2 Combi
Model ReferenceC26
MountingWall Mounted
NBS DescriptionGas fired condensing boilers
NBS Noten/a
NBS Office Master Tagn/a
NBS Reference90-40-05/340
Nominal Depth330 mm
Nominal Height740 mm
Nominal Length445 mm
Nominal Oil Inlet Pressure0
NOx EmissionsCLASS 5
O&M Manualspecifi.bimstore.co.uk/document/share/2057
Oil Consumption Rate0
Optional FuelLPG
Overall Length330 mm
Overall Height740 mm
Overall Width445 mm
Primary FuelNatural Gas
Production Year2017
Product Literaturespecifi.bimstore.co.uk/document/share/2059
Product Model NumberC26
Product RangeVogue GEN2 Combi
Rated Output18
Referenced StandardErp Compliant
Safety Valve Connection Size15 mm
Safety Valve Connection Type15mm
ShapeRectangular
Shipping Weight37.60 kg
Size740 x 445 x 330mm
Sound Pressure Level47.1
Spare Partsidealparts.com/
Turndown Ratio07:01
TypeCondensing Boiler
Type CommentsVogue Combi GEN2 C26
Type NameVogue Combi GEN2 C26
URLidealboilers.com/installer/boilers/combi-boilers/vogue-gen2-combi/
Voltage230Vac
Warranty Description10 year warranty when installed with an Ideal filter. 8 years parts and labour warranty as standard. Terms and conditions apply.
Warranty Duration Labor8
Warranty Duration Parts8
Warranty Duration UnitYears
Warranty Guarantor Laborenquiries@idealboilers.com
Warranty Guarantor Partsenquiries@idealboilers.com
Water Content1.5
Water Treatment RequiredSee page 16 of installation manual
