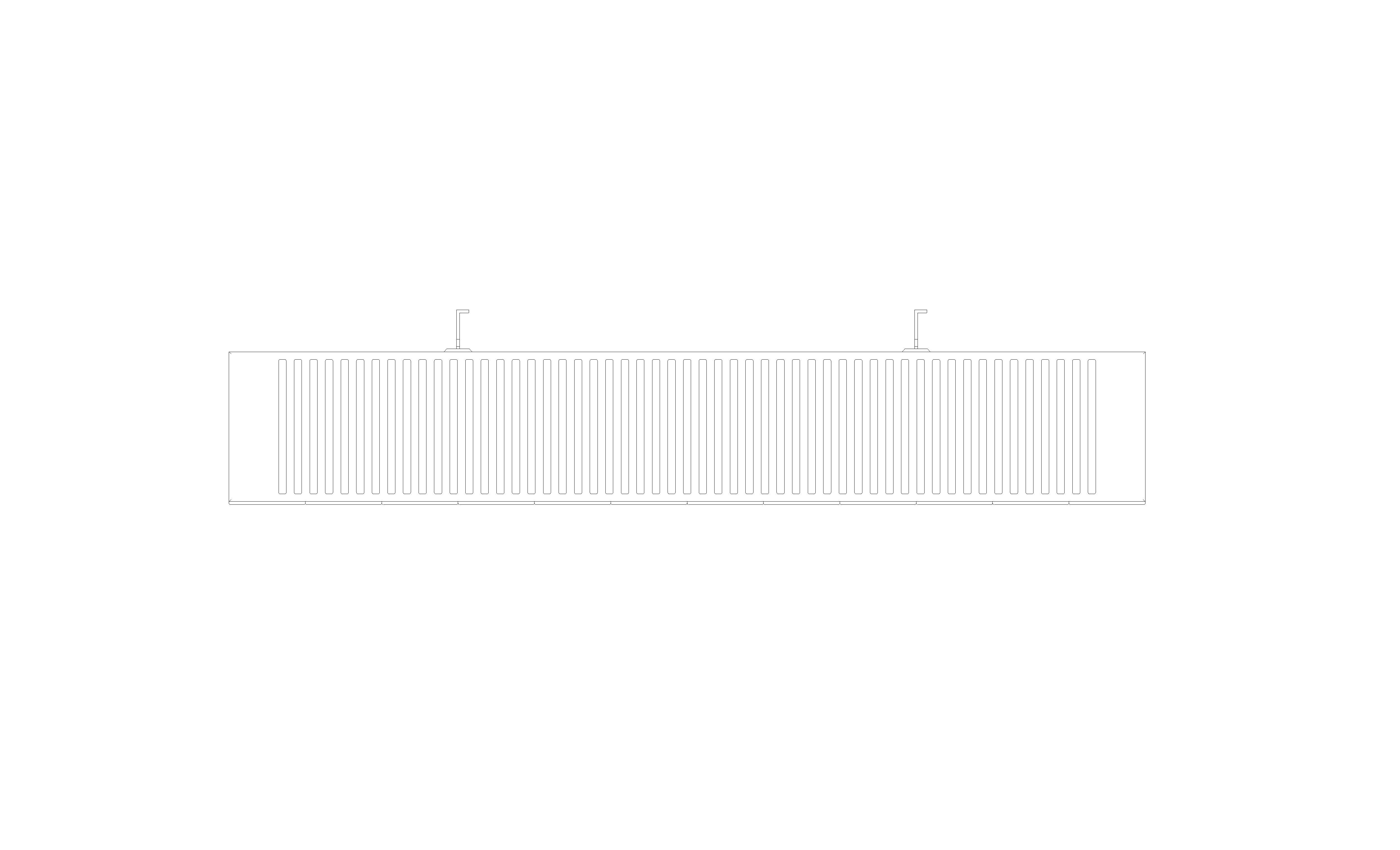

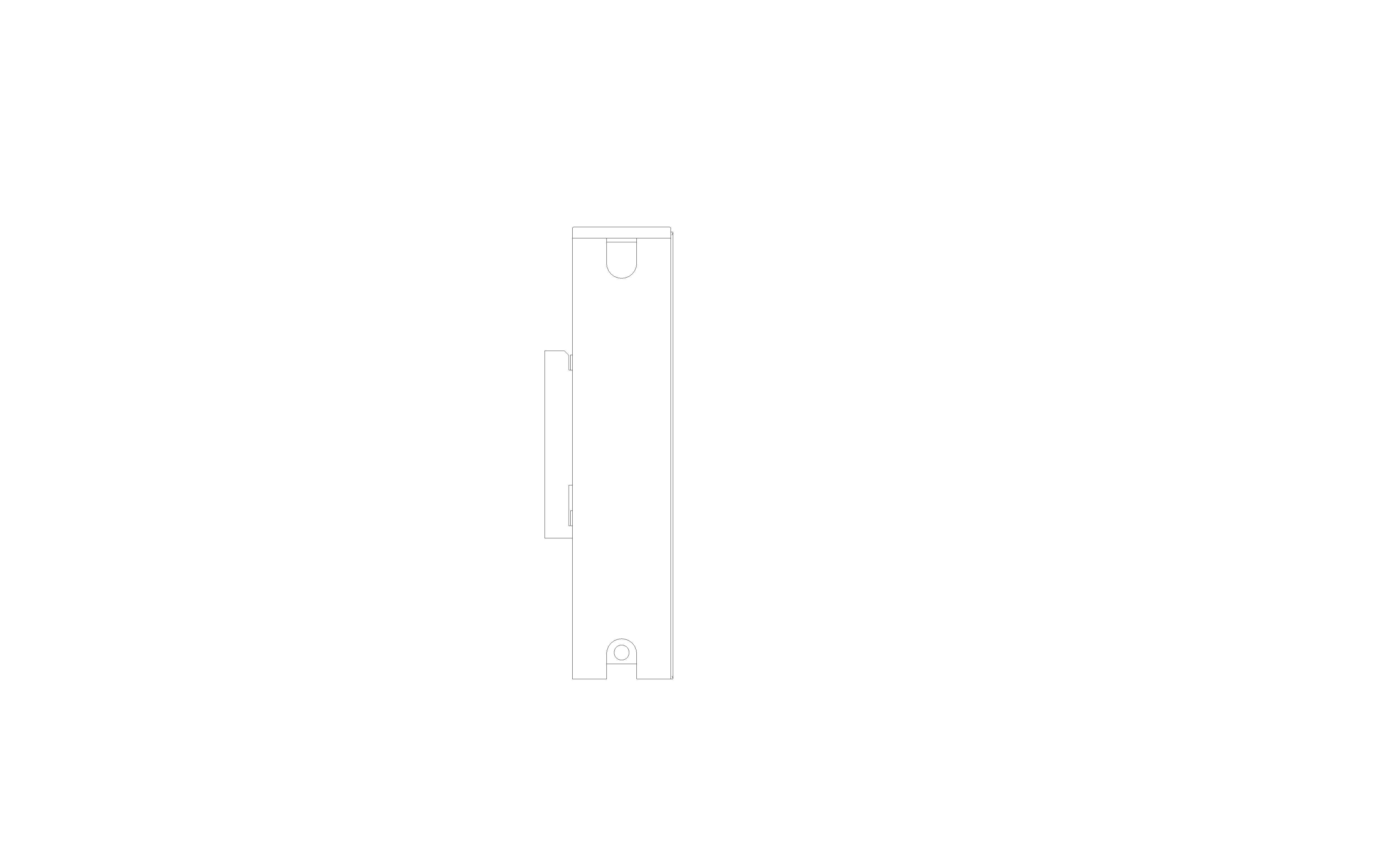

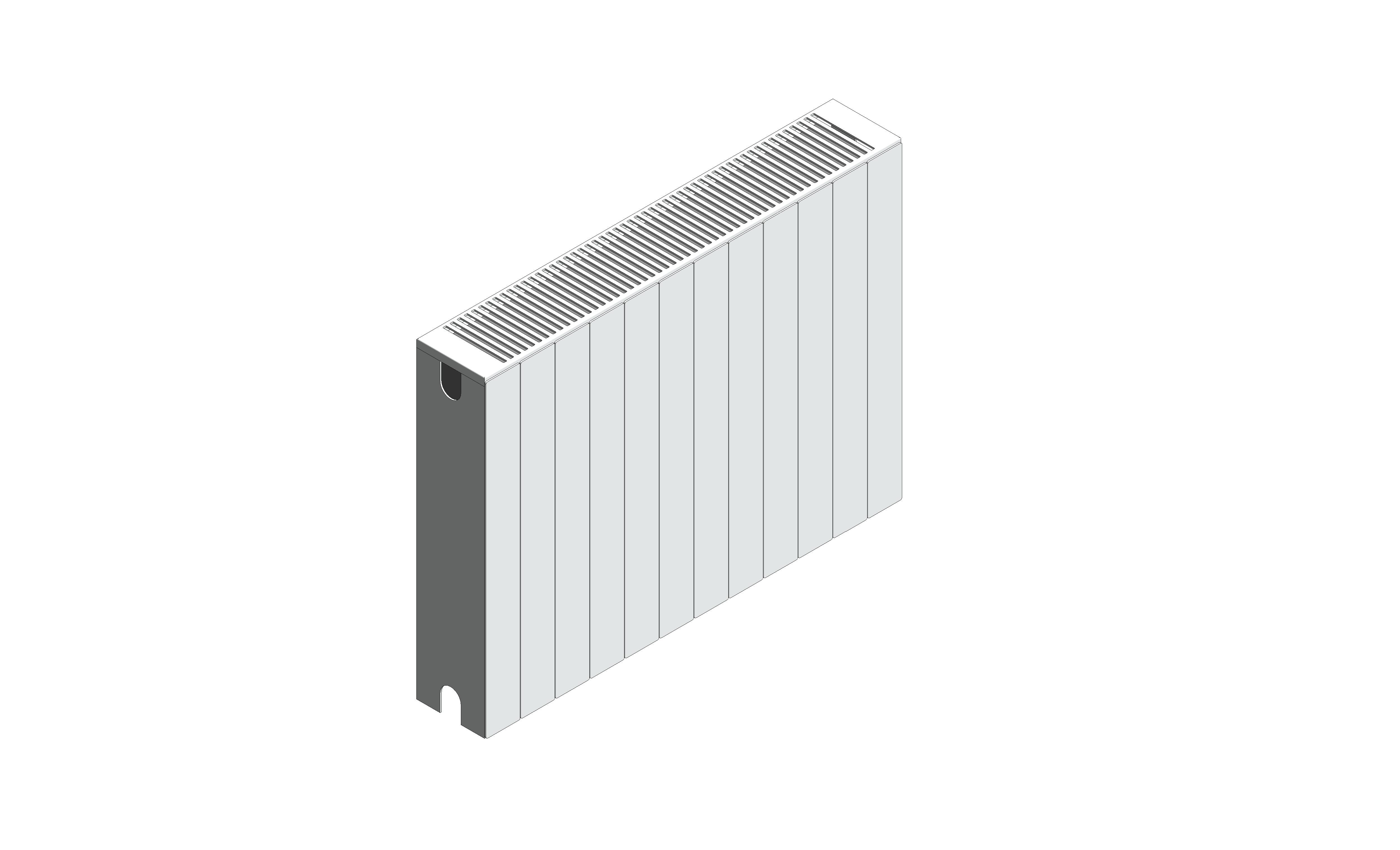

Vita Silhouette Radiator

by Stelrad Radiators Ltd

Download Add to collection

Description

The clean, crisp design of the Stelrad Vita Silhouette make this latest addition to the Vita series a stand out option, with the vertical lines on the casing adding a strong, bold appeal. It offers a cost effective, designer option for the home or the workplace.

Click here to view our interactive brochure

Object Data

1 Revision

Last Updated

21/02/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Literature

Technical Data Sheet

Product Data Sheet

Object metadata

Object

Parameter Type

_AuthorCL
_Authorized ByRW
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Access Clearance Zone Back0 mm
Access Clearance Zone Bottom0 mm
Access Clearance Zone Front0 mm
Access Clearance Zone Left0 mm
Access Clearance Zone Right0 mm
Access Clearance Zone Top0 mm
Accessibility Performancen/a
Air VentNo
Assembly CodeD3020
Asset TypeFixed
BIM Object NameStelrad_MechanicalEquipment_Radiators_VitaSilhouette_K1
Bracket A150 mm
Bracket B60 mm
Bracket C17 mm
Btu/hr1600.697
Case Height300 mm
Case Width1000 mm
Casing Thickness1.2 mm
Classification NameUniclass2015
Classification ValuePr_70_60_36_73
Code Performancen/a
ColorWhite RAL 9010
ColourWhite RAL 9010
Connection Diameter15 mm
Connection Radius7.5 mm
Conn LHS26.25 mm
Conn RHS26.25 mm
Constituentsn/a
Created Byinfo@stelrad.com
Created On2017-02-01T00:00:00
DescriptionLow Surface Temperature Vita Silhouette - K1 Element
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicaln/a
Drain TapNo
Duration Unityear
Element Offset25 mm
Element Offset Btm15 mm
Expected Life0
FeaturesPanelled Radiator
FinnedNo
Floor StandsNo
Graden/a
Grille Depth59 mm
Gross Weight14.13 kg
Heat ReflectorNo
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
Inlet GrilleNo
Integral Locksheild ValveNo
Integral Regulating ValveNo
Integral TRVNo
KeynoteT32
Maintenance Required 0-300hrsPlease record on commissioning
Maintenance Required 1001-2000hrsPlease record on commissioning
Maintenance Required 2001-4000hrsPlease record on commissioning
Maintenance Required 301-600hrsPlease record on commissioning
Maintenance Required 4001-8000hrsPlease record on commissioning
Maintenance Required 601-1000hrsPlease record on commissioning
Maintenance Required 8001-12000hrsPlease record on commissioning
ManufacturerStelrad
Manufacturer NameStelrad
MaterialSteel
Maximum Operating Pressure800 kPa
Maximum Operating Temperature95 °C
Maximum Test Pressure1050 kPa
Middle BracketNo
ModelVita Silhouette K1
Model Number92301110
Model ReferenceVita Silhouette K1
NBS DescriptionRadiators
NBS Noten/a
NBS Object NameStelrad - Radiators
NBS Office Master Tagn/a
NBS Reference90-40-35/405
Nominal Depth61 mm
Nominal Height300 mm
Nominal Length1000 mm
Number Of Panels0
Number Of Sections20
Offset From Floor0 mm
Offset From Wall27.5 mm
Outlet GrilleNo
Output_DT50_EN44293 W
Overall Height300 mm
Overall Length1000 mm
Overall Width61 mm
Panel Height295 mm
Panel No20
Panel Width50 mm
Pipe Connection Size15 mm
Production Year2019
Product Literaturen/a
Product RangeVita Silhouette K1
Referenced Standardn/a
Replacement Costn/a
ShapeRectangle
Shipping Weight14.13 kg
Size300mm (h) x 1000mm (l) x 61mm (d)
Spare Partsn/a
Temperature ClassificationEN 442
Thermal Output470 W
Thk2 mm
TypeK1
Type CommentsLow Surface Temperature Vita Silhouette - K1 Element
Type NameLow Surface Temperature Vita Silhouette - K1 Element
UIN92301110
URLwww.stelrad.com
Wall BracketsNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration Unityear
Warranty Guarantor Laborinfo@stelrad.com
Warranty Guarantor Partsinfo@stelrad.com
Warranty IDn/a
Water Content1.81 L
Watts470
Working Pressure10 bar

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
