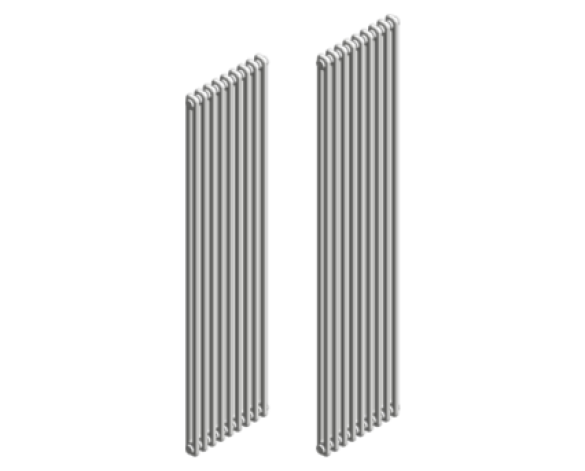

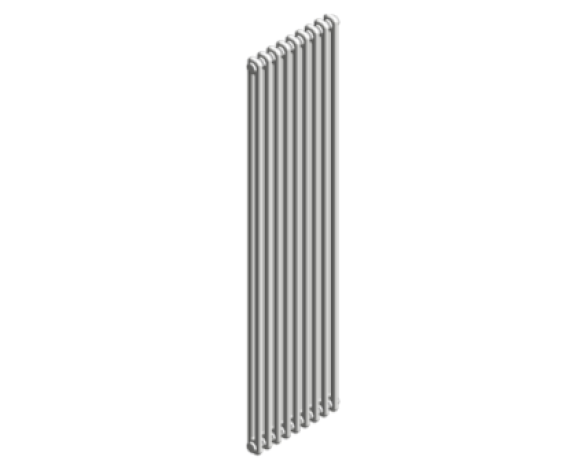

Vita Column Vertical Radiator

by Stelrad Radiators Ltd

Download Add to collection

Description

The new Vita Column Vertical provides a real style statement. Ideal for use in any minimalist projects or where wall space is restricted. Featuring two columns and up to 2000mm height, and all coming with a five-year warranty – these are a classic addition to the already comprehensive Vita Series range that is taking the UK radiator marketplace by storm.

Available in heights of 1800mm & 2000mm and lengths of 444mm.

Click here to view our interactive brochure

Object Data

2 Revision

Last Updated

20/02/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

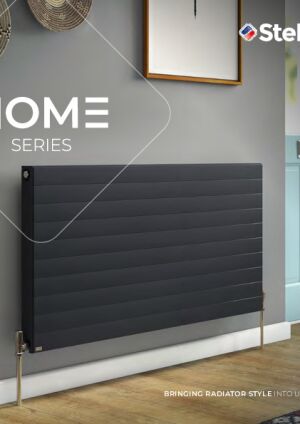

Product Literature

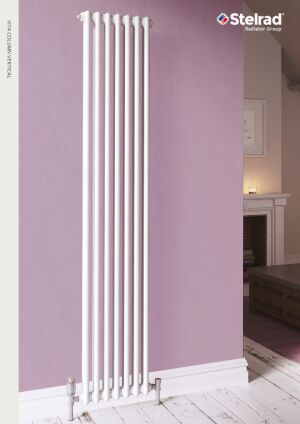

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorKris Atkinson
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision2
_Distributed Bywww.bimstore.co.uk
2 ColYes
6 Monthlyn/a
Access Clearance Zone Back0 mm
Access Clearance Zone Bottom0 mm
Access Clearance Zone Front0 mm
Access Clearance Zone Left0 mm
Access Clearance Zone Right0 mm
Access Clearance Zone Top0 mm
Accessibility Performancen/a
Air VentNo
Annuallyn/a
Assembly CodeD3020
Asset TypeFixed
Bespoke Timeframen/a
BIM Object NameStelrad_MechanicalEquipment_Radiators_VitaColumnVertical
Casing Materialn/a
CE Approvaln/a
Classification NameUniclass2015
Classification ValuePr_70_60_36_73
Code Performancen/a
ColourRAL 9016
Columns2
Constituentsn/a
Created Byinfo@stelrad.com
Created On2017-02-13T09:00:00
D54 mm
D285 mm
Dailyn/a
DescriptionThe new Vita Column Vertical provides a real style statement. Ideal for use in any minimalist projects or where wall space is restricted. Featuring two columns and up to 2000mm height, and all coming with a five-year warranty – these are a classic addition to the already comprehensive Vita Series range that is taking the UK radiator marketplace by storm.
Documentation Certificateswww.bimstore.co/products/vita-column-vertical/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/vita-column-vertical/document/installation-guide
Documentation Literaturewww.bimstore.co/products/vita-column-vertical/document/product-literature
Documentation Maintenancewww.bimstore.co/products/vita-column-vertical/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/vita-column-vertical/document/technical-data-sheet
Drain TapNo
Duration UnitYears
Embodied Carbonn/a
Energy Technology Listn/a
Environmental Product Declarationn/a
Expected Life0
Featuresn/a
FinishPainted
FinnedNo
Graden/a
Green Guide For Specificationn/a
Gross Weight17.57 kg
Heat Emitter MaterialSteel
Heat ReflectorNo
Heat Transfer Mediumn/a
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
Inlet GrilleNo
Integral Locksheild ValveNo
Integral Regulating ValveNo
Integral TRVNo
KeynoteT32
Life Cycle Analysisn/a
Location Of ManufacturerRotherham, UK
Maintenance Required 0-300hrsn/a
Maintenance Required 1001-2000hrsn/a
Maintenance Required 2001-4000hrsn/a
Maintenance Required 301-600hrsn/a
Maintenance Required 4001-8000hrsn/a
Maintenance Required 601-1000hrsn/a
Maintenance Required 8001-12000hrsn/a
ManufacturerStelrad Ltd
Manufacturer NameStelrad Ltd
Manufacturer Websitewww.stelrad.com/
MaterialSteel
Material Ingredient Reportingn/a
Maximum Operating Pressure8.0 kPa
Maximum Operating Temperature0 °C
Maximum Test Pressure10.5 kPa
ModelVita Column Vertical
Model Number463054
Model ReferenceVita Column Vertical
Monthlyn/a
NBS DescriptionRadiators
NBS Noten/a
NBS Object NameStelrad Ltd - Radiators
NBS Office Master Tagn/a
NBS Reference90-40-35/405
Nominal Depth85 mm
Nominal Height1800 mm
Nominal Length352 mm
Number Of Panels0
O&M Manualn/a
Outlet GrilleNo
Overall Height1800 mm
Overall Length352 mm
Overall Width85 mm
Pipe Connection Size26 mm
Pressure Drop0.0 kPa
Production Year2017
Product Literaturewww.bimstore.co/products/vita-column-vertical/document/product-literature
Product Model Number463054
Product RangeVita
Quaterlyn/a
Reference StandardEN 442 Certification - CETIAT tested in accordance with BS EN 442
Replacement Costn/a
Responsible Extraction Of Materialsn/a
Responsible Sourcing Of Materialsn/a
Seam Typen/a
ShapeRectangle
Shipping Weight0.00 kg
Size1800 x 352mm
Spare Partsn/a
Temperature Classificationn/a
Thermal Output868 W
Thermal Output-Btu/hr2962
TypeColumn
Type Comments1800mm High x 352mm Wide - 2 Col
Type Name1800mm High x 352mm Wide - 2 Col
URLwww.stelrad.com/
WA23 mm
Wall Bracket Height Offset100 mm
Wall Bracket Offset71 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo@stelrad.com
Warranty IDn/a
Water Content11.5 L
Water Flow Raten/a
Weeklyn/a
