UPS Trimod HE (10-80kVA)

by Legrand

Download Add to collection

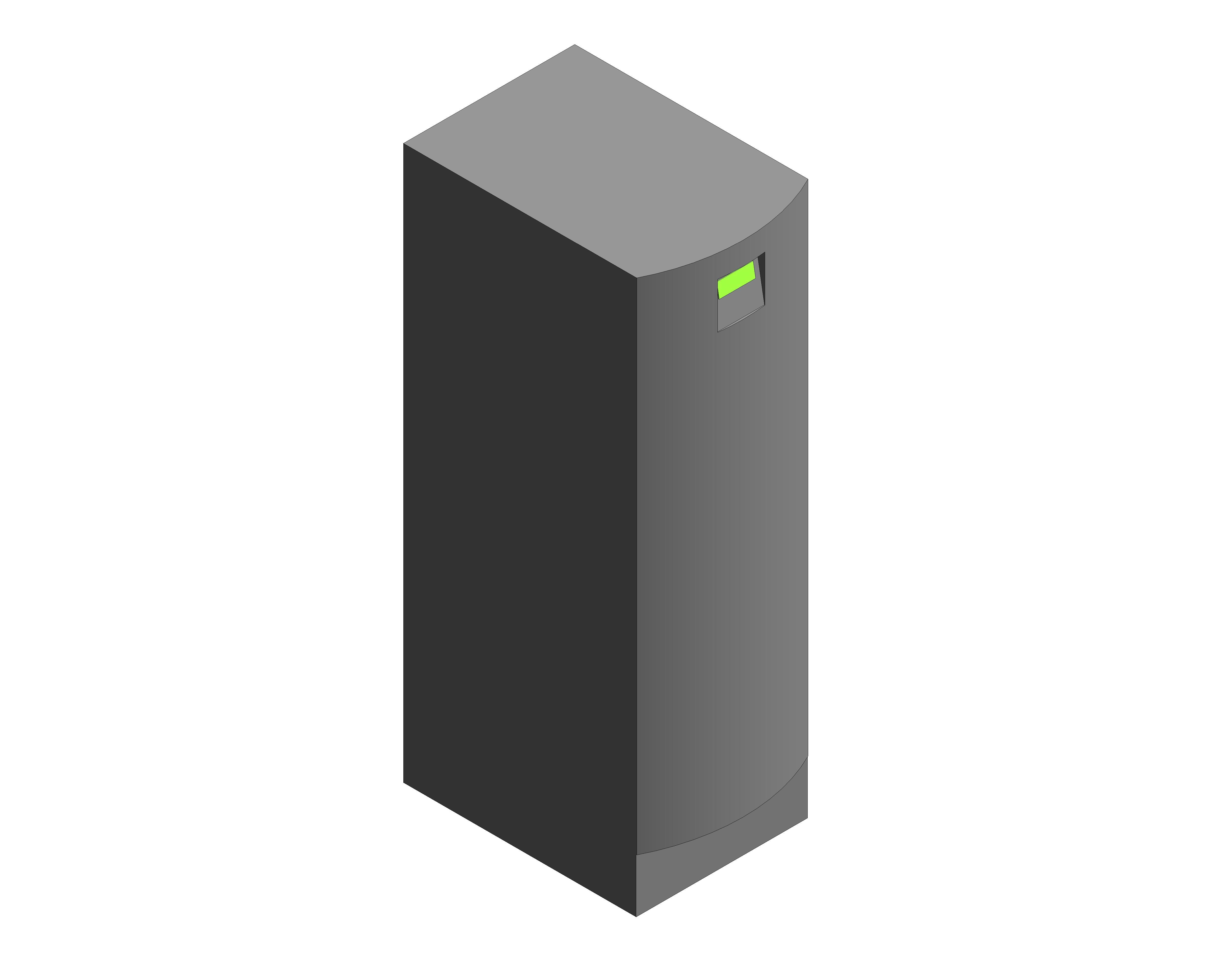

Description

TRIMOD HE UPS is a three-phase uninterruptible power supply on line double conversion with PWM High-Frequency technology, modular architecture with the possibility to have N+X redundancy.

Are made up of individual single phase modules which are redundant and selfconfiguring and it delivers a rated power from 10 to 80kW. Batteries are lead acid, sealed, free maintenance, valve regulated, and arranged, inside the UPS or external battery cabinet, in dedicated Drawers.

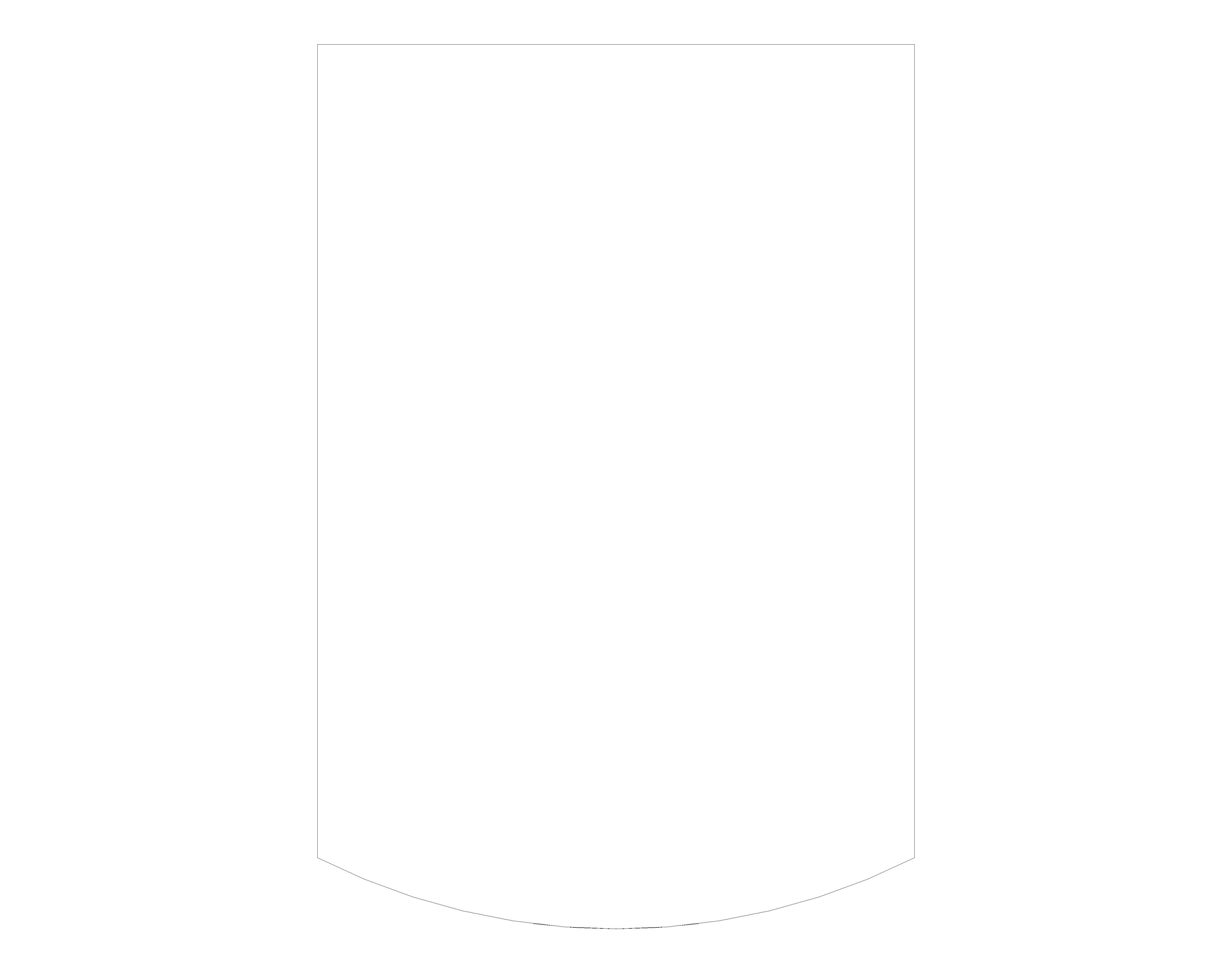

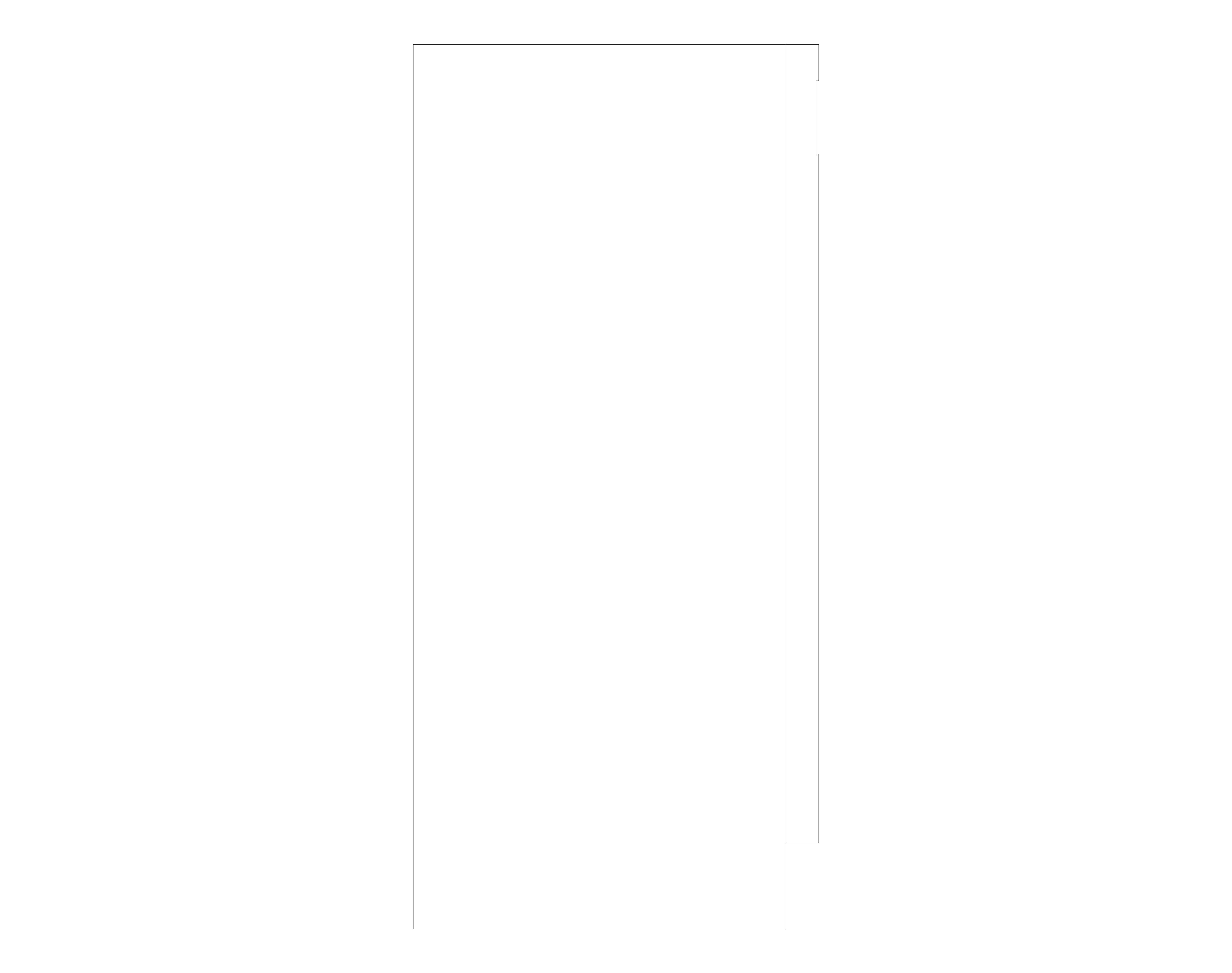

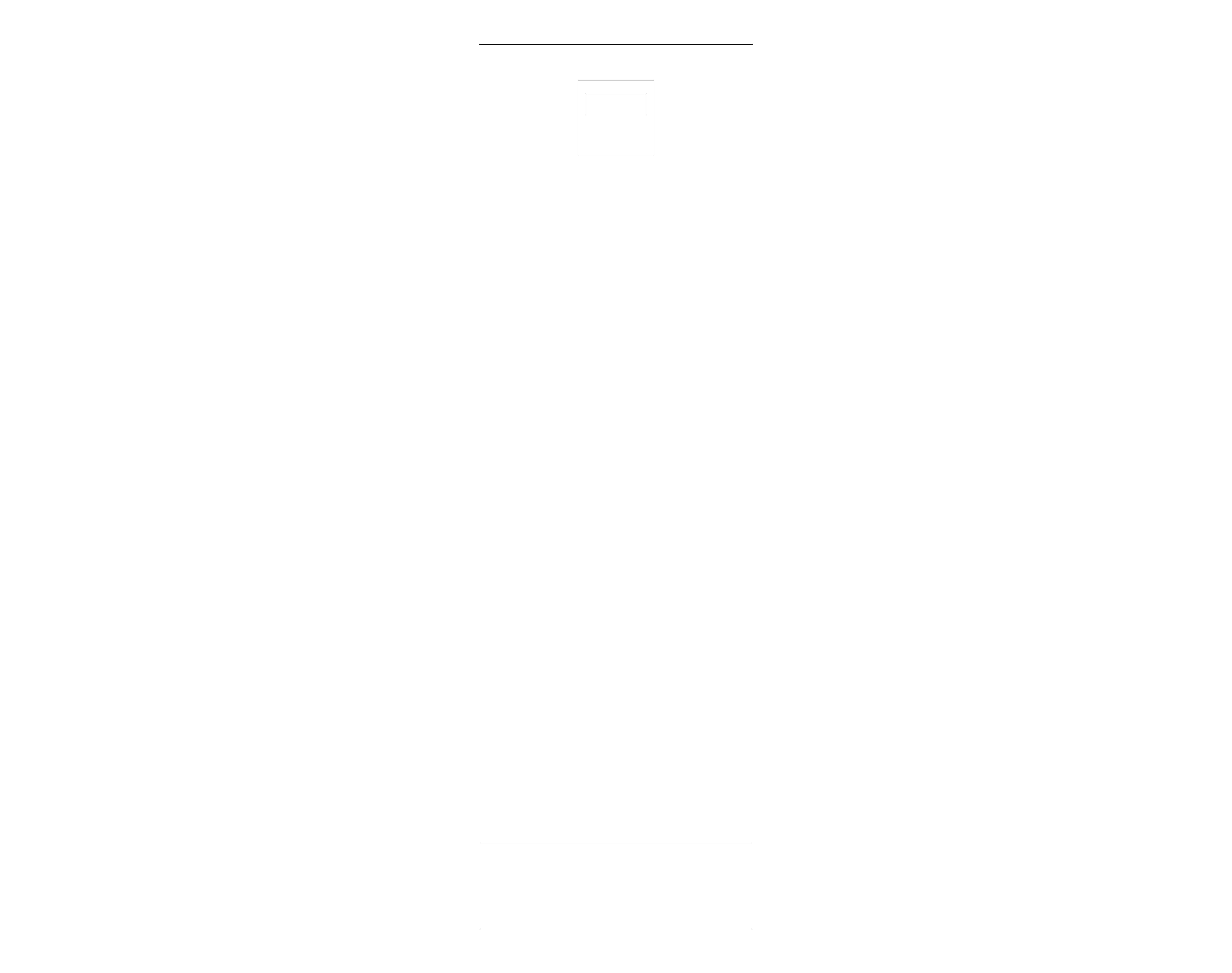

Object Data

1 Revision

Last Updated

22/10/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_Authorlegrand.sales@legrand.co.uk
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bylegrand.sales@legrand.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/ups-trimod-he-10-80kva/document/object-user-guide
Accessibility Performancen/a
Active Power Of Use10 kW
Assembly CodeD5010
Asset TypeFixed
Back Clearance100 mm
BIM Object NameLegrand_ElectricalFixtures_UPS_TrimodHE_(10-80kVA)
Cabinet Depth628 mm
Cabinet Height1370 mm
Cabinet Width414 mm
CertificationEN 62040-1, EN 62040-2, EN 62040-3
Classification NameUniclass2015
Classification ValuePr_75_50_18_92
Code Performancen/a
ColorBlue
ConductorsCables
Connection ConstraintAhead and bottom
Constituentsn/a
Created Bylegrand.sales@legrand.co.uk
Created On2020-05-01T09:00:00
DescriptionTRIMOD HE UPS is a three-phase uninterruptible power supply on line double conversion with PWM High-Frequency technology, modular architecture with the possibility to have N+X redundancy.
Documentation Certificateswww.legrand.co.uk/products/ups/
Documentation Installation Guidewww.legrand.co.uk/products/ups/
Documentation Literaturewww.legrand.co.uk/products/ups/
Documentation Maintenancewww.legrand.co.uk/products/ups/
Documentation Technicalwww.legrand.co.uk/products/ups/
Duration UnitYears
Expected Life0
FeaturesAre made up of individual single phase modules which are redundant and selfconfiguring and it delivers a rated power from 10 to 80kW. Batteries are lead acid, sealed, free maintenance, valve regulated, and arranged, inside the UPS or external battery cabinet, in dedicated Drawers.
Finishn/a
Frequency Of Use50 Hz or 60 Hz selectable
Front Clearance1000 mm
Graden/a
Humidity0-95% not condensing
Ifc Export AsIfcBuildingElementProxy
Ifc Export TypeIfcBuildingElementProxy
Input Output Phase Configuration1ph+N+PE/1ph+N+PE 3ph+N+PE/1ph+N+PE 1ph+N+PE/3ph+N+PE 3ph+N+PE/3ph+N+PE
Installation Space0.35 m³
Installation TypeOn the floor
KeynoteV
ManufacturerLegrand
Manufacturer NameLegrand
Materialn/a
Max Number Of Battery Drawer3 string of 4 drawers (5 pcs 12V 7,2Ah) (N°block - Ah)
Max Number Of PM(N° x kW)
Max Sound Pressure Level< 46 dB at 1m
ModelTrimod HE
Model Number310396
Model ReferenceTrimod HE
NBS Descriptionn/a
NBS Object NameLegrand - n/a
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth628 mm
Nominal Height1370 mm
Nominal Length414 mm
Nominal Power10 kVA
Number Of Installed Battery(N°block - Ah)
Number Of Installed PM3 x 3,4 kW (N° x kW)
Operating Altitudeup to 1000 m altitude without derating
Operating Temperaturefrom 0°C to +40°C
Output Power Factor1
Output Voltage220,230,240 Vac /380,400,415 Vac
Production Year2020
Protection DegreesIP21
Referenced StandardEN 62040-1, EN 62040-2, EN 62040-3
Replacement Costn/a
ShapeRectangle
Side Clearance200 mm
Signal Connection ConstraintBehind and above
Sizen/a
Spare Partsn/a
Type Comments310396
Type NameTrimod HE
URLwww.legrand.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborlegrand.sales@legrand.co.uk
Warranty Guarantor Partslegrand.sales@legrand.co.uk
Weight120.0 kg
