Description

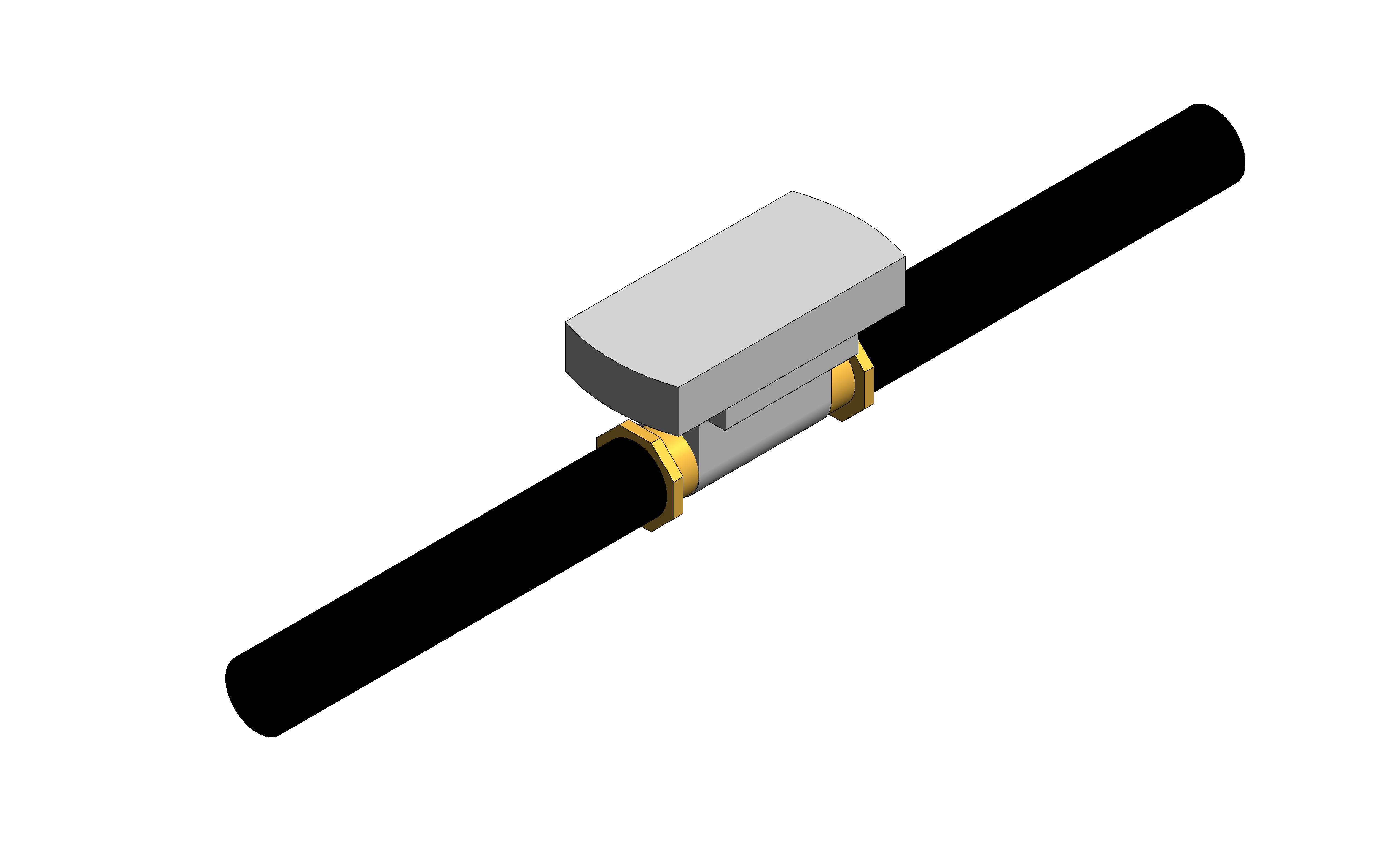

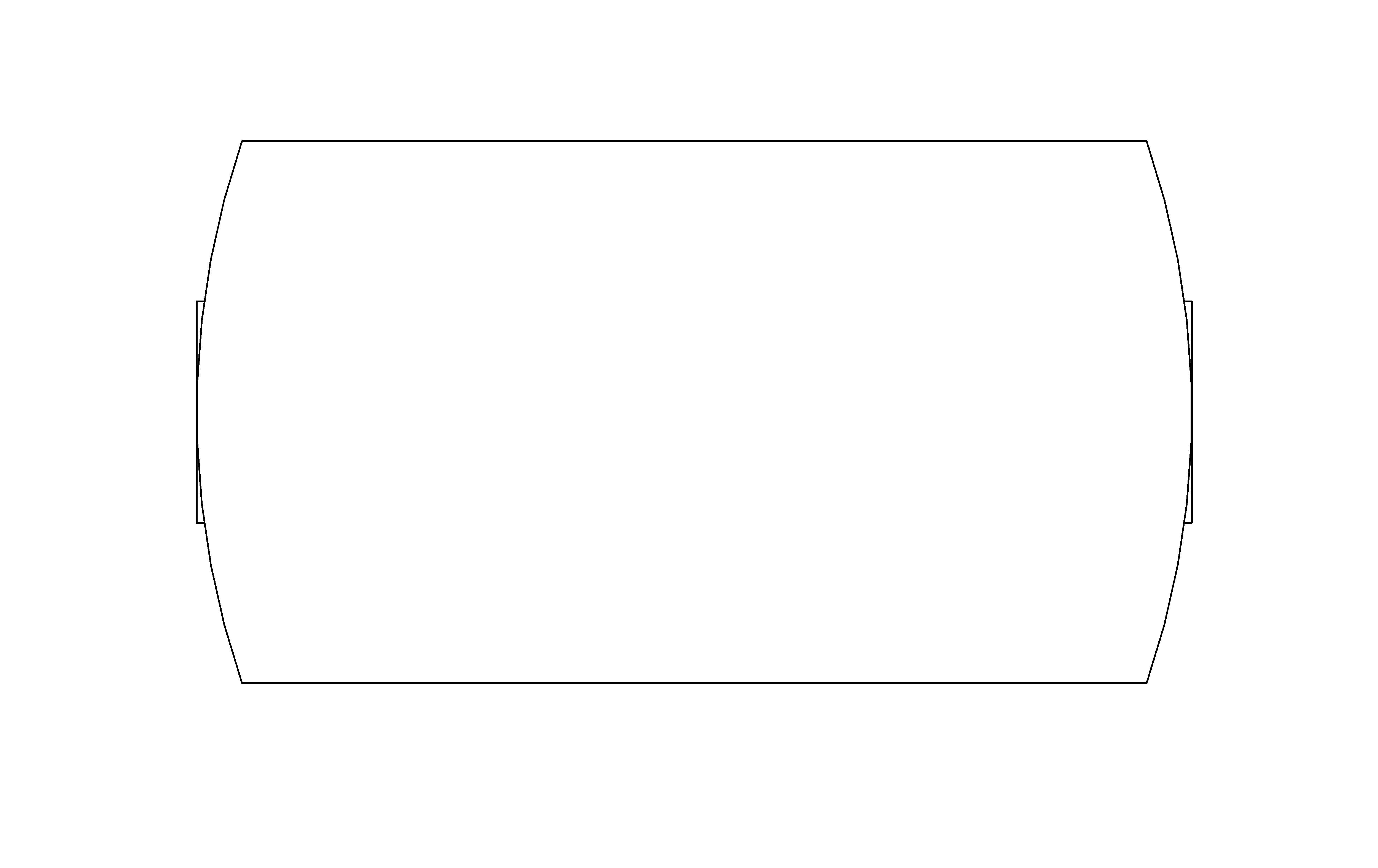

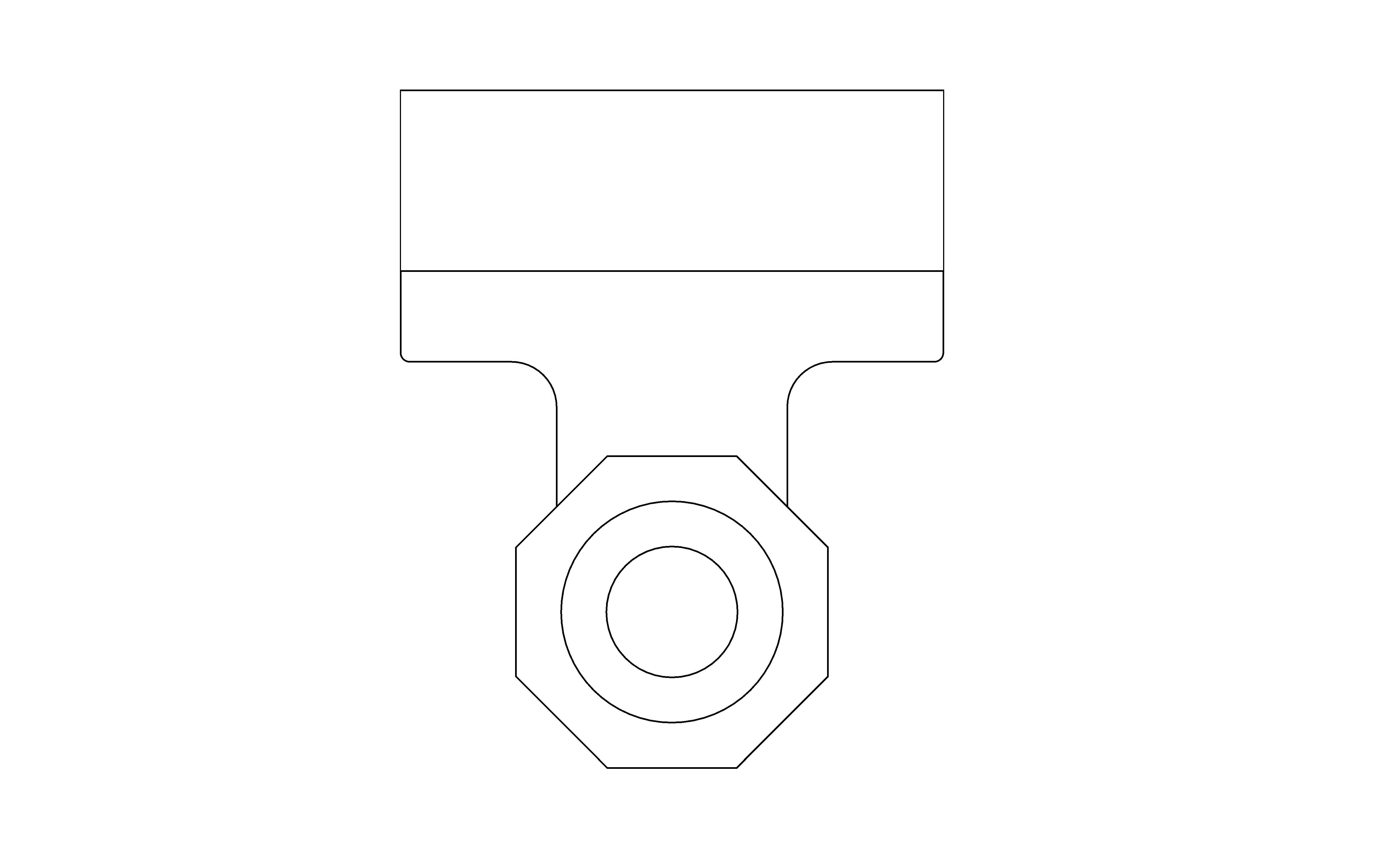

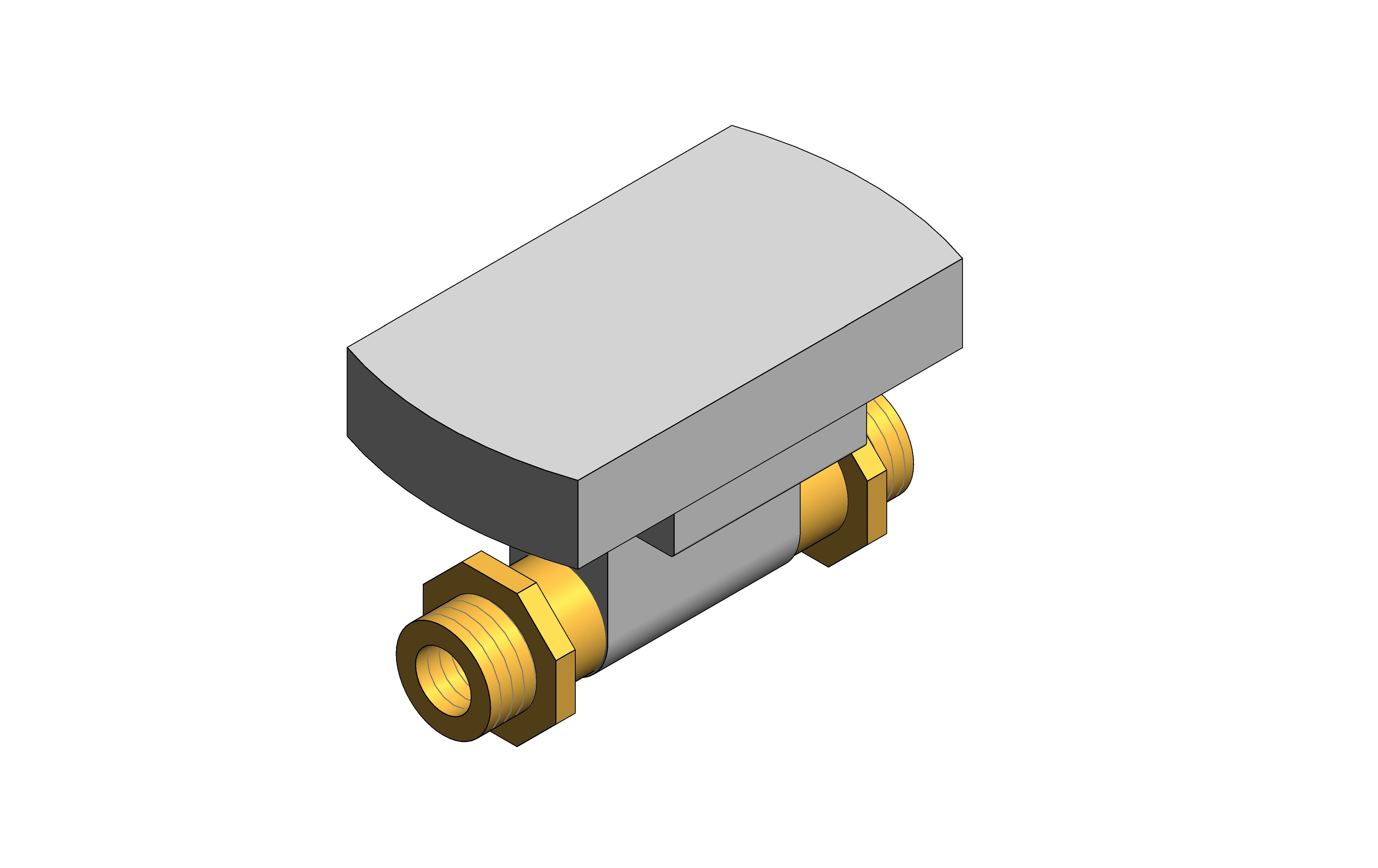

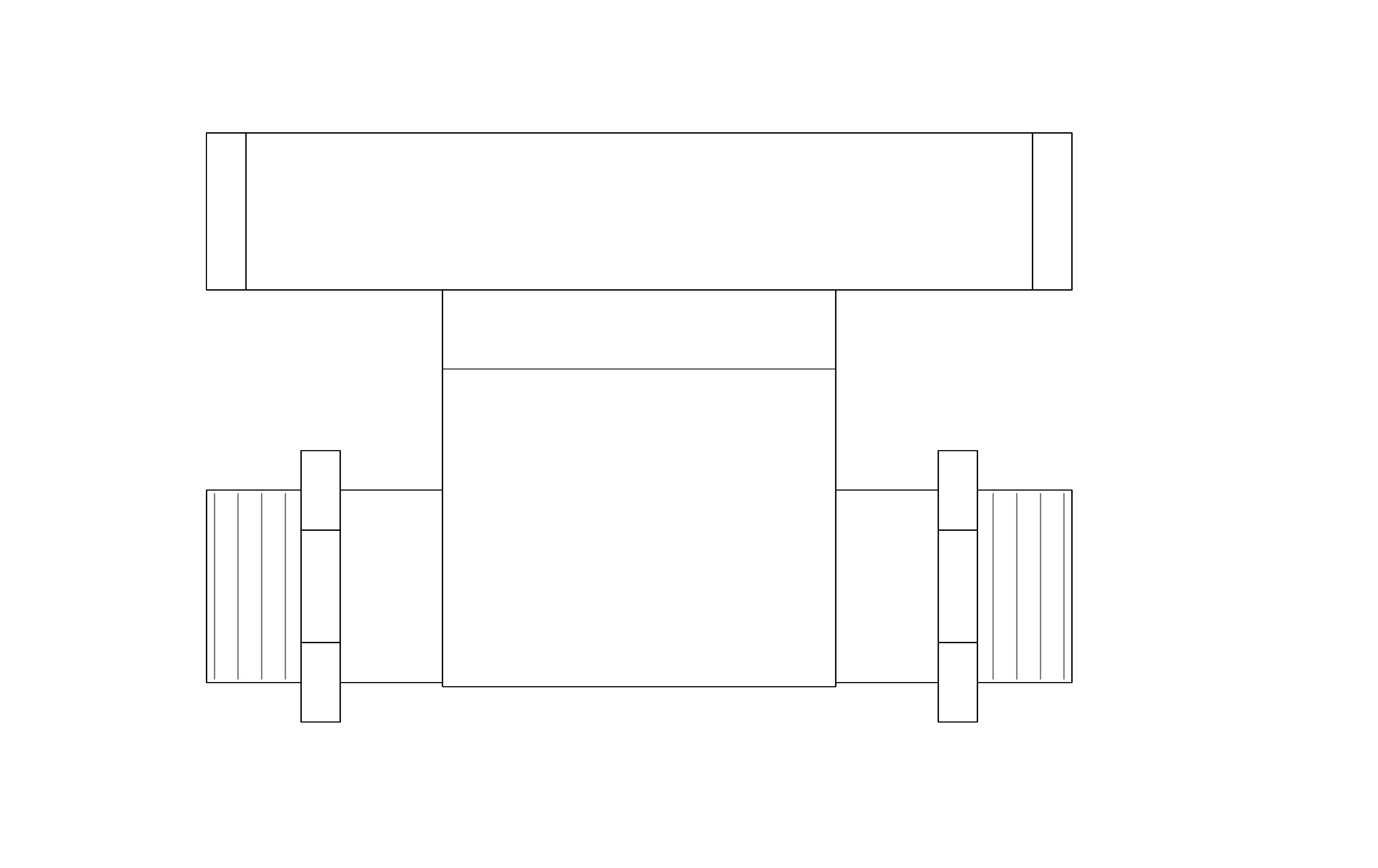

The ultego III smart is a compact heat meter for physically accurate recording of energy consumption. The device comprises a flow sensor, two fixed connected temperature sensors and a calculator that calculates energy consumption using the volume and temperature difference.

Available in the following sizes:

ultego III smart 0.6
ultego III smart 1.5
ultego III smart 2.5

Object Data

1 Revision

Last Updated

18/02/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

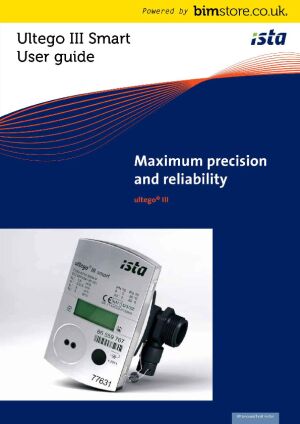

Object User Guide

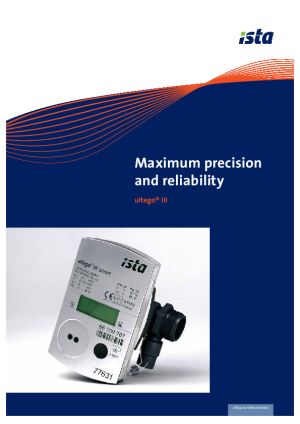

Product Literature

Product Data Sheet

Object metadata

_AuthorIan Holmes
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
0.6Yes
1.5No
2.5No
Accessibility Performancen/a
Ambient ConditionsAcc. to DIN EN 1434
Ambient Temperature5–55 °C
Assembly CodeD20
Asset TypeFixed
B60 mm
BIM Object NameistaEnergySolutions_PipeFitting_UltegoIIISmart
Classification NameUniclass2015
Classification ValuePr_80_51_51_37
Code Performancen/a
ColorBlack & Gold
Constituentsn/a
Created Byinfo@ista-uk.com
Created On2017-02-20:T00:00:00
DG 3/4
DescriptionThe ultego III smart is a compact heat meter for physically accurate recording of energy consumption. The device comprises a flow sensor, two fixed connected temperature sensors and a calculator that calculates energy consumption using the volume and temperature difference.
Display Of Heat Consumption7-digit including one decimal place
Documentation Certificateswww.ista.com/uk/
Documentation Installation Guidewww.ista.com/uk/
Documentation Literaturewww.bimstore.co/products/ultego-iii-smart/document/product-literature
Documentation Maintenancewww.ista.com/uk/
Documentation Technicalwww.bimstore.co/products/ultego-iii-smart/document/product-literature
Duration UnitYears
Expected Life0
FeaturesThe ultego III smart is a compact heat meter for physically accurate recording of energy consumption. The device comprises a flow sensor, two fixed connected temperature sensors and a calculator that calculates energy consumption using the volume and temperature difference.
FinishBrass
Flow Rate Measurement Grid4 sec
Forward Flow Sensor Length1500 mm
Graden/a
Heat Coefficient KVariably compensated rt
Height58 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.STOPCOCK
Inflow And Outflow SectionsNot required
Installation PositionAs required
Internal Diameter15 mm
KeynoteS
Length110 mm
Manufacturerista Energy Solutions
Manufacturer Nameista Energy Solutions
MaterialBrass
Maximum Depth70 mm
Maximum Flow Rate_qs1.2 m3/h
Minimum Flow Rate_qi6 l/h
ModelUltego III Smart
Model NumberUltego III Smart
Model ReferenceSmart 0.6
NBS DescriptionHeat meters
NBS Object Nameista Energy Solutions - Heat meters
NBS Office Master Tagn/a
NBS Reference90-65-55/430
Nominal Depth0 mm
Nominal Height75 mm
Nominal Length110 mm
Nominal Pressure PN16 bar
Nut Dia35 mm
Nut Lenght5 mm
Offset Rad13 mm
Part Number77630
Permissible Metering ErrorAcc. to EN 1434 (class 2/3)
Pipe Connection25 mm
Plastic Housing Materialista_Grey_Plastic
Power SupplyIntegrated 6-year battery*
Pressure Loss Delta P At_qp75 mbar
Production Year2017
Protection ClassIP54 acc. to EN 60529, & IP65
Referenced Standardn/a
Replacement Costn/a
Response Limit1.2 l/h
Return Flow Sensor Length1500 mm
Shapen/a
Sizen/a
Socket Length12 mm
Spare Partsn/a
Temperature Difference Limit Values3–80
Temperature Difference Suppression< 0.2
Temperature Measurement Grid Adaptive60 Standard sec, 4 with surge in flow rate, > 30 % sec
Temperature Range Limit Values0–180
Thread Materialista_Brass_Threaded
Top Plate Thickness10 mm
Type CommentsSmart 0.6
Type NameSmart 0.6
Ultego III Materialista_Brass
URLwww.ista.com/uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@ista-uk.com
Warranty Guarantor Partsinfo@ista-uk.com
