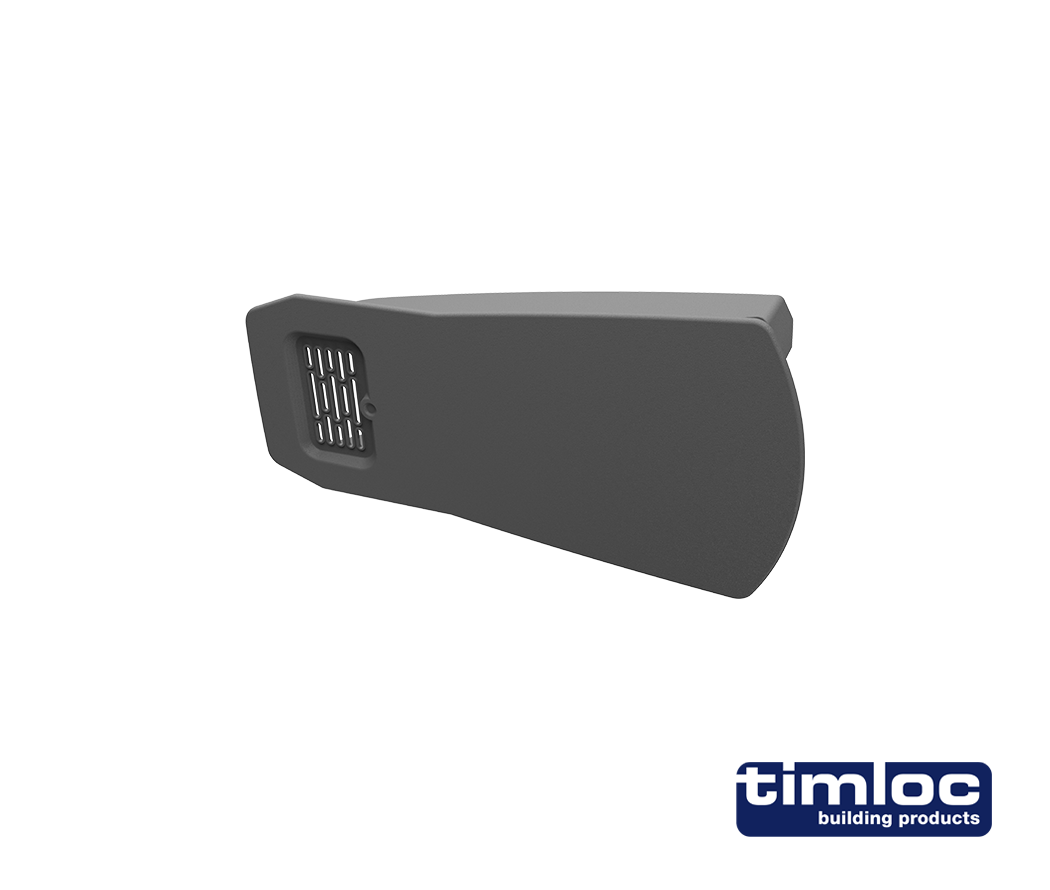

Interlocking Plain Tile Dry Verge

by Timloc Building Products

Download Add to collection

Description

A robust, attractive and weather resistant verge system alternative to wet mortar bedding for Interlocking Plain tiles.

Use:

Developed for Plain Interlocking concrete tiles
Suitable for most pitched roof types from 15-55°
Verges with or without bargeboards
New build and refurbishment projects

Description	Black product codes	Grey product codes	Terracotta product codes	Brown product codes	Red product codes
Interlocking Plain Tile Dry Fix Verge	99173	99174	99175	99176	99182
Interlocking Plain Tile Verge Starter	99177	99178	99179	99180	99181
Universal Dry Fix Angled Ridge End Cap	99107	99109	99110	99108	99183
Universal Dry Fix Half Round Ridge End Cap	99136	99113	99114	99112	99184
Dry Verge Profiled Tile End Grain Batten Bracket (optional)	99124	99124	99124	99124	99124

Object Data

1 Revision

Last Updated

11/09/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

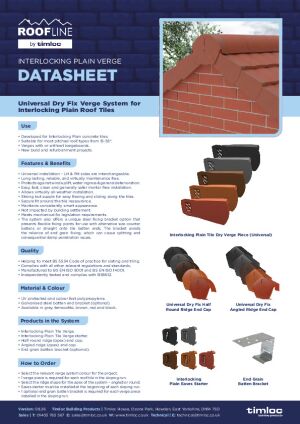

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/timloc-interlocking-plain-tile-dry-verge/document/object-user-guide
Accessibility Performancen/a
Assembly CodeB1020
Asset TypeFixed
BIM Object NameTimloc_DryVerge_InterlockingPlain
Classification NameUniclass2015
Classification ValuePr_35_90_93_30
Code Performancen/a
ColorBlack
Constituentsn/a
Created Bysales@timloc.co.uk
Created On2024-09-01T09:00:00
Default Elevation0 mm
DescriptionA robust, attractive and weather resistant verge system alternative to wet mortar bedding.
Documentation Certificateswww.bimstore.co/products/timloc-interlocking-plain-tile-dry-verge/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/timloc-interlocking-plain-tile-dry-verge/document/installation-guide
Documentation Literaturewww.bimstore.co/products/timloc-interlocking-plain-tile-dry-verge/document/product-literature
Documentation Maintenancewww.bimstore.co/products/timloc-interlocking-plain-tile-dry-verge/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/timloc-interlocking-plain-tile-dry-verge/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeUSERDEFINED
KeynoteH65/405
ManufacturerTimloc Building Products
Manufacturer NameTimloc Building Products
MaterialPolypropylene
ModelInterlocking Plain Tile Dry Verge
Model Number99173
Model ReferenceInterlocking Plain Tile Dry Verge
NBS DescriptionDry fixing verges
NBS Object NameTimloc - Dry fixing verges
NBS Office Master Tagn/a
NBS Reference45-80-90/378
Nominal Depth52 mm
Nominal Height135 mm
Nominal Length281 mm
Primary MaterialTimloc_Black
Production Year2024
Referenced StandardHelping to meet BS 5534 Code of practice for slating and tiling. Complies with all other relevant regulations and standards. Manufactured to BS EN ISO 9001 and BS EN ISO 14001. Independently tested and complies with BS8612.
Replacement Costn/a
ShapeRectangular
Sizen/a
Spare Partsn/a
Type CommentsBlack - 99173
Type NameBlack - 99173
URLtimloc.co.uk/products/interlocking-plain-tile-dry-verge/
Verge Offset From Roof10 mm
Verge Overlap80 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@timloc.co.uk
Warranty Guarantor Partssales@timloc.co.uk
