Stopray Vision 52T energy efficient glazing for curtainwall facades, windows and doors
by AGC Glass
Description

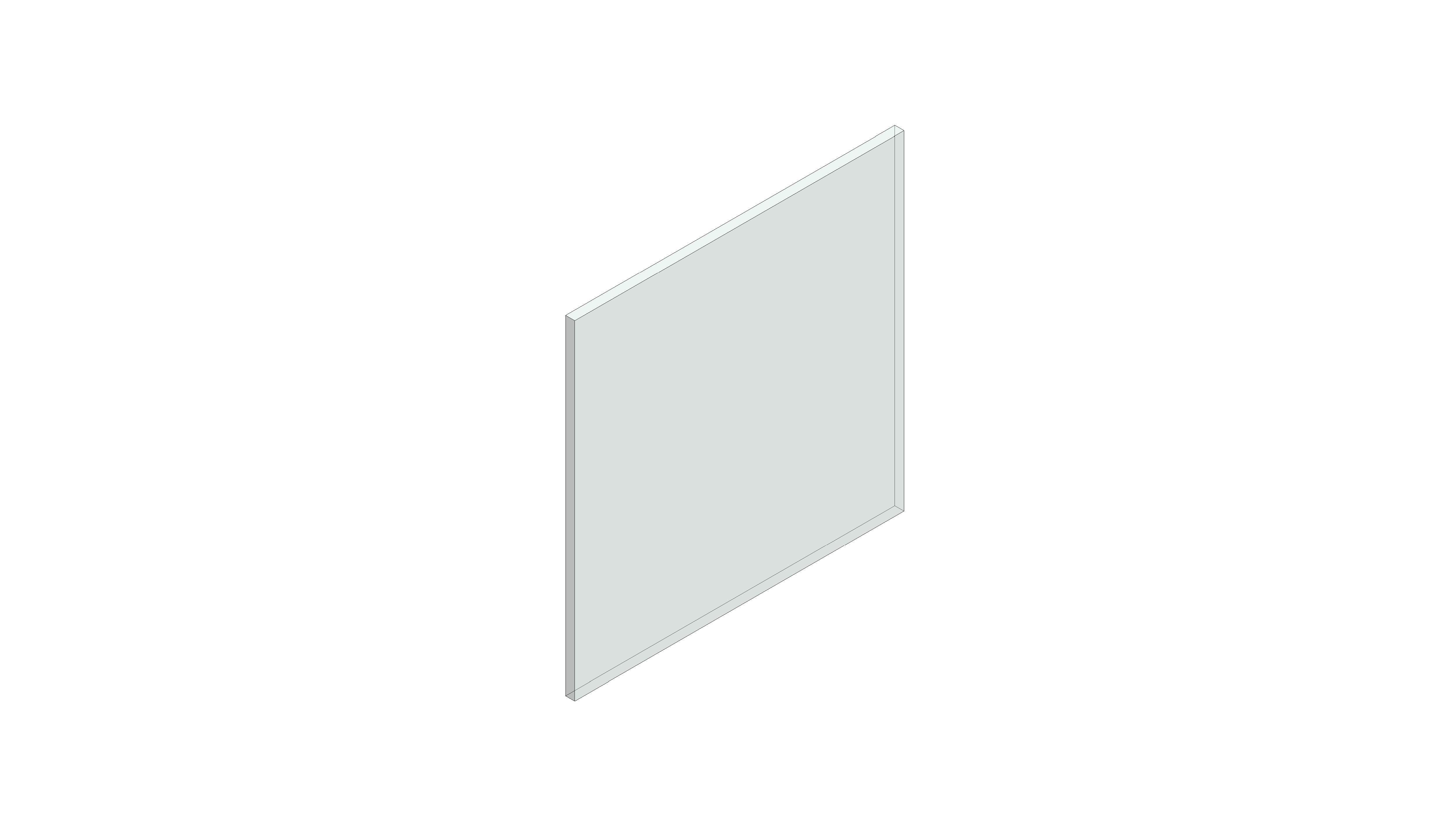

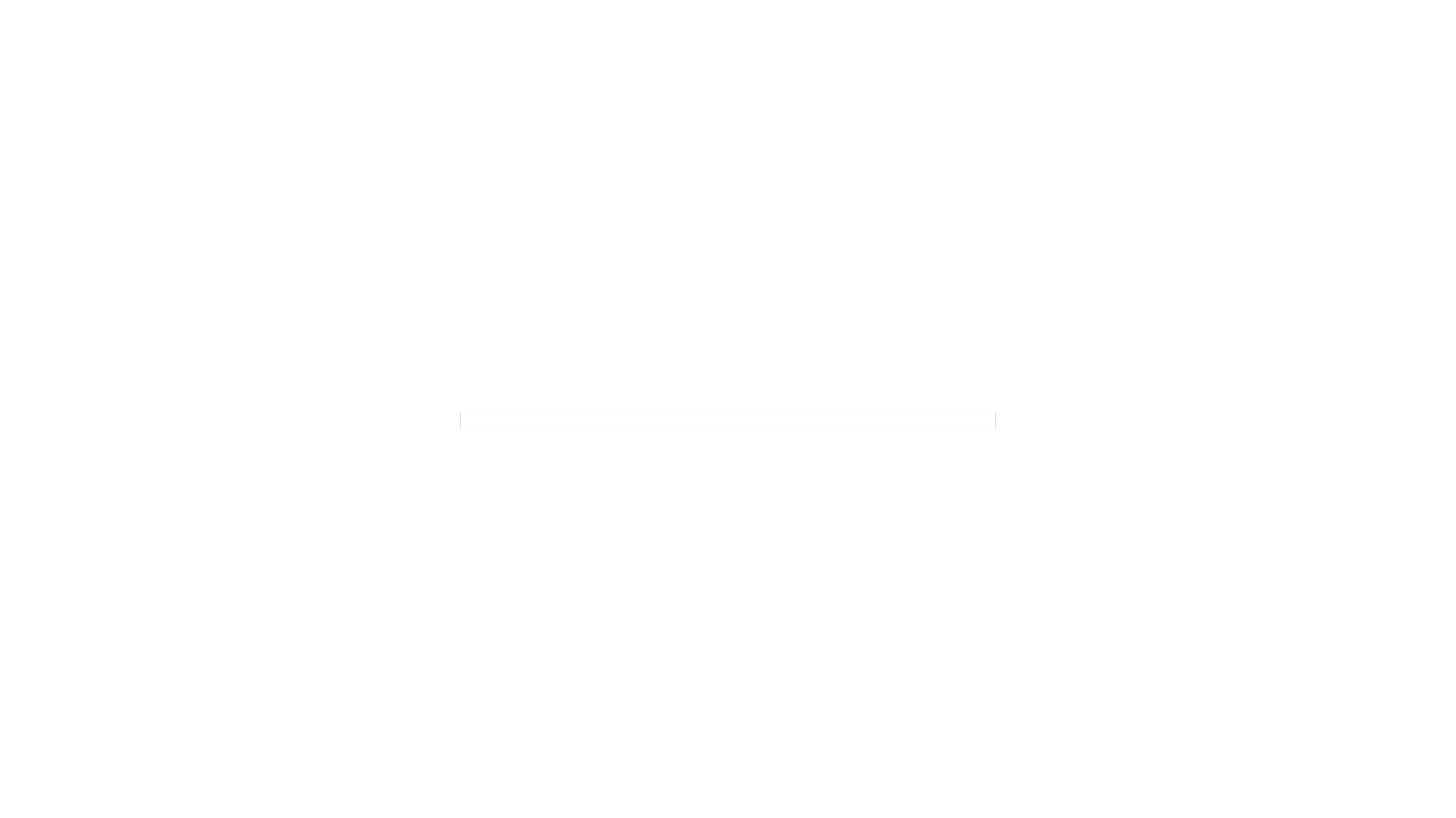

Stopray Vision 52T double glazing is perfectly designed to combine an good light transmission (51%) to allow for high levels of natural daylight whilst offering a low solar factor/g value (27%) to reduce solar gain (overheating) in highly glazed facades. This glazing also offers a low U value of 1.0W.m2.K. A neutral appearance and low light reflection levels mean no compromise on aesthetics. This glazing is available in a toughened/tempered safety glass version and also a laminated safety glass version. This BIM object shows a 6-16-6 glazing configuration. Other glazing configurations are available and can be tailored to any aesthetic, structural and acoustic needs for your project, don’t hesitate to contact us. Samples available on request.
Unapproved
This content has not yet been through the Bimstore QA process and as such may not meet our minimum standards for content hosting.
Read moreObject Data
1 Revision
Last Updated
30/11/2020
Available Software
BS1192:4
Compliant
BSB
Compliant
BS8541-2
Compliant
EPD
Available
Sustainability & Environmental Data
Approved Sustainability Data from an EPD
This data is supplied by the manufacturer and certified by an approved third party.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) kg
- Total CO2e (Fossil) 23.6 kg
- Manufacturing (A1-A3) 22.6 kg
- Transport to Site (A4) 0.712 kg
- On-Site Installation (A5) 0.008 kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) 0.223 kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use 6 L
- Ozone Depletion Potential 0.0211 mg CFC-11eq
- Expiry1st Mar 2029 - 1st Mar 2024

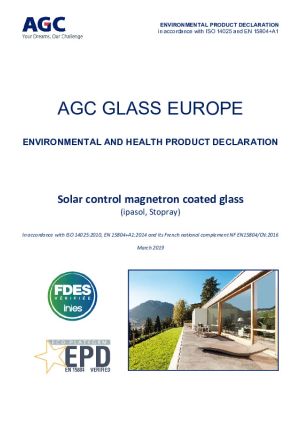

Environmental Product Declarations
Environmental Product Declaration (EPD)
Expired on 31st Mar 2024
