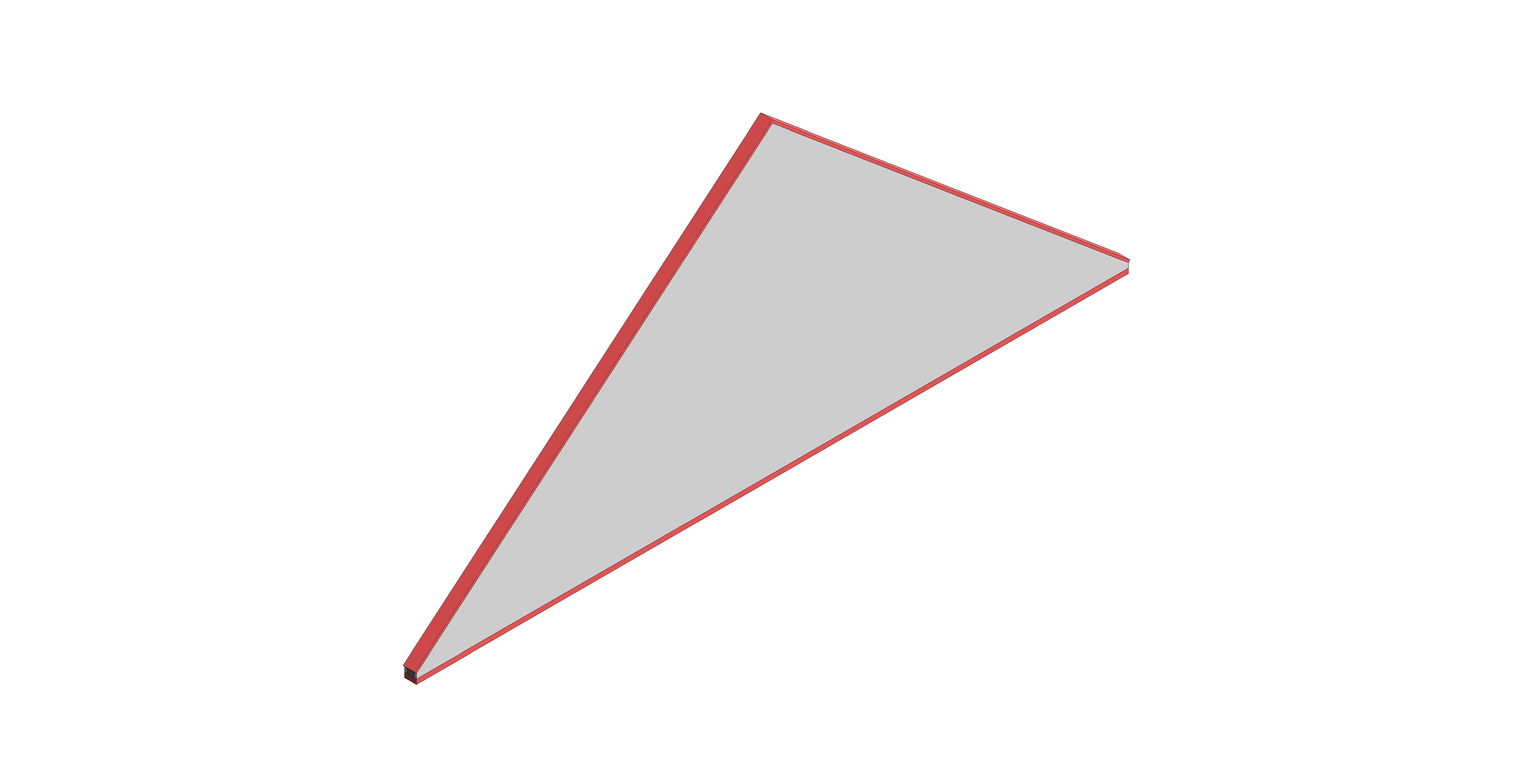

Spandrel Panel

by Donaldson Timber Engineering

Download Add to collection

Description

Donaldsons Timber Engineering pre-fabricated Spandrel panels eliminate blockwork at gables and party walls. The speed of build can help you get the building wind and watertight quicker, allowing follow on trades earlier access to complete their work. Providing an insulated fire barrier at party wall level.

Quick installation for these also means that our customers save time and resources on-site.

Object Data

1 Revision

Last Updated

19/12/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorRW
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
Accessibility Performancen/a
Assembly CodeB1020400
Asset TypeFixed
Base Offset0 mm
BIM Object NameDonaldsonTimberEngineering_StructuralFraming_SpandrelPanel
BoardingFermacell_Gypsum_Fibre_Board
Board Thickness15 mm
Classification NameUniclass2015
Classification ValuePr_25_71_57_60
Code Performancen/a
Colorn/a
Constituentsn/a
Created ByDTEHeadOffice@Donaldson-timber.co.uk
Created On19-12.2019 T09:00:00
DescriptionPre-fabricated Spandrel panels eliminate blockwork at gables and party walls. The speed of build can help you get the building wind and watertight quicker, allowing follow on trades earlier access to complete their work. Floor cassettes are suited to timber frame buildings. Quick installation for these also means that our customers save time and resources on-site.
Documentation Certificateswww.donaldsontimberengineering.co.uk/
Documentation Installation Guidewww.donaldsontimberengineering.co.uk/
Documentation Literaturewww.donaldsontimberengineering.co.uk/products/panels/
Documentation Maintenancewww.donaldsontimberengineering.co.uk/
Documentation Technicalwww.donaldsontimberengineering.co.uk/
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Fire BarrierRock Wool
Fire Barrier Base Height25 mm
Graden/a
Ifc Export AsIfcBeam
Ifc Export TypeIfcBeamTypeEnum.SPANDREL
KeynoteG20
ManufacturerDonaldson Timber Engineering
Manufacturer NameDonaldson Timber Engineering Ltd
MaterialTimber & Fermacell
ModelSpandrel Panel
Model NumberSpandrel Panel
Model Reference10m Wide x 40 Pitch
NBS DescriptionPartition panels
NBS Noten/a
NBS Object NameDonaldson Timber Engineering - Partition panels
NBS Office Master Tagn/a
NBS Reference45-35-80/420
Nominal Depth100 mm
Nominal Height0 mm
Nominal Length10000 mm
Pitch40.00 °
Production Year2019
Referenced Standardn/a
Replacement Cost0
Serial Numbern/a
ShapeTriangle
Sizen/a
Spare Partsn/a
Timber Base Height44 mm
Timber Base Width70 mm
Type Comments10m Wide x 40 Pitch
Type Name10m Wide x 40 Pitch
URLwww.donaldsontimberengineering.co.uk/
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor LaborDTEHeadOffice@Donaldson-timber.co.uk
Warranty Guarantor PartsDTEHeadOffice@Donaldson-timber.co.uk
Width10000 mm
