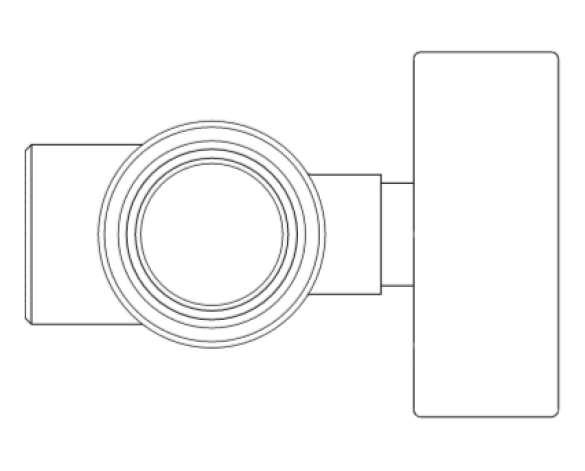

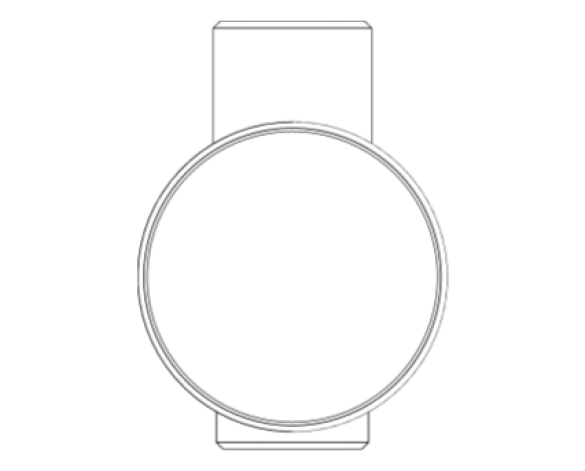

Sealed Heating System Pressure Relief Valve

by Reliance Valves

Download Add to collection

Description

- High capacity gives overpressure protection for heating system- Diaphragm design gives improved resistance to scaling- Cartridge design gives ease of service and replacement without the need to re-set the opening pressure- High lift design for increased discharge capacity- Supplied complete with pressure gauge so the system can easily be monitored

PREL103003

Object Data

1 Revision

Last Updated

31/08/2016

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_authorized byKris Atkinson
_BIMspec_GUID1
_created byElisabeth Matuki
_current revision1
_distributed bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeD2020300
Asset TypeFixed
Classification NameUniclass
Classification ValuePr_65_54_40_44
Code Performancen/a
ColorBrass
Connection Type1/2in x 1/2in FF
Constituentsn/a
Created Bytechnical@rwc.co.uk
Created On2016
D_Gauge Face To Outlet Length82 mm
DescriptionThe Reliance Water Controls brand specialises in pressure, temperature, flow control and washroom products and has a long history in supplying the sanitary plumbing market and hot water system manufacturers. With our heritage and expertise, Reliance Worldwide Corporation (UK) Ltd (RWC UK) played a key role in the development of thermostatic technology and unvented hot water systems in the UK. Today we remain at the forefront of the industry delivering new innovations each year to drive water efficiency and improve water safety in both domestic and commercial applications.
Duration UnitYears
E_Gauge Depth26 mm
Expected Life0
F_Gauge Height50 mm
FeaturesHigh capacity gives overpressure protection for heating system. Diaphragm design gives improved resistance to scaling. Cartridge design gives ease of service and replacement without the need to re-set the opening pressure. High lift design for increased discharge capacity. Supplied complete with pressure gauge so the system can easily be monitored.
FinishDRZ Brass
Fittings MaterialRWC Brass
Gauge MaterialRWC - Black Plastic
Gauge Settings0-4 bar
Graden/a
H_Center To Cap Top49 mm
h_Centre To Inlet21 mm
Inlet 1_Diameter21 mm
Inlet 1_Radius10 mm
KeynoteS12
L_Center To Outlet1 mm
ManufacturerReliance Worldwide Corporation
Manufacturer AddressReliance Worldwide Corporation (UK) Ltd, Worcester Road, Evesham, Worcestershire, WR11 4RA, UK
Manufacturer Fax+44 (0) 1386 712401
Manufacturer Tel+44 (0) 1386 712400
MaterialDRZ Brass
Maximum Pressure3.0 bar
Minimum Pressure1.5 bar
ModelSealed Heating System Pressure Relief Valve
Model NumberPlease record on commissioning
NBS DescriptionIsolating valves;
NBS Object Name90-15-40/325 Isolating valves;
NBS Reference90-15-40/325
Nominal Height69 mm
Nominal Length41 mm
Nominal Width31 mm
Operating Temperature140 °C
Outlet 1_Diameter21 mm
Outlet 1_Radius10 mm
Product CodePREL103003
Production Year2016
Referenced Standardn/a
Replacement Costn/a
ShapeElbow
Size70 x 92 x 26mm
Spare Partsn/a
Test Pressure Of Body25.0 bar
Type NameSealed Heating System Pressure Relief Valve
URLwww.rwc.co.uk
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
