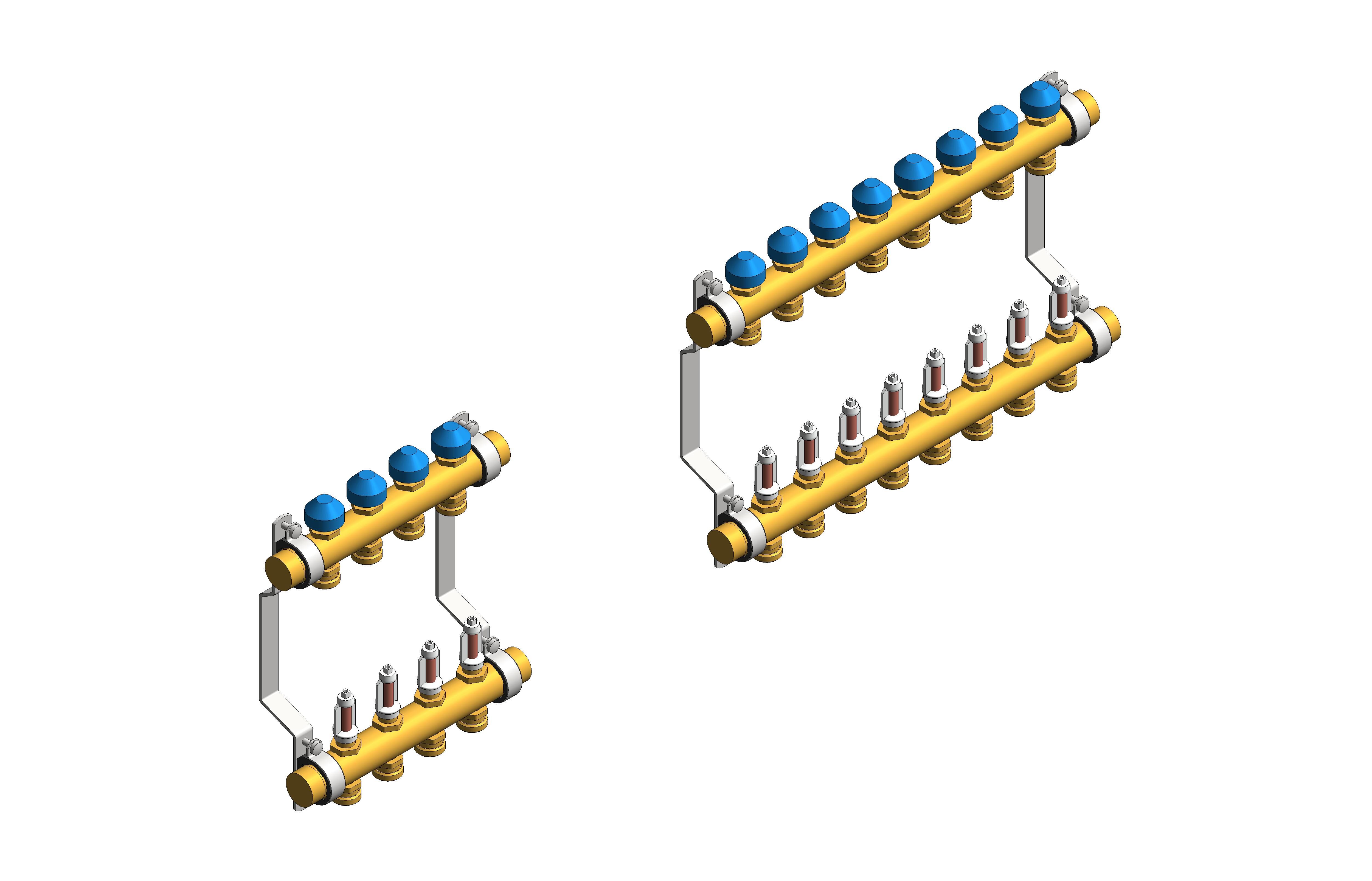

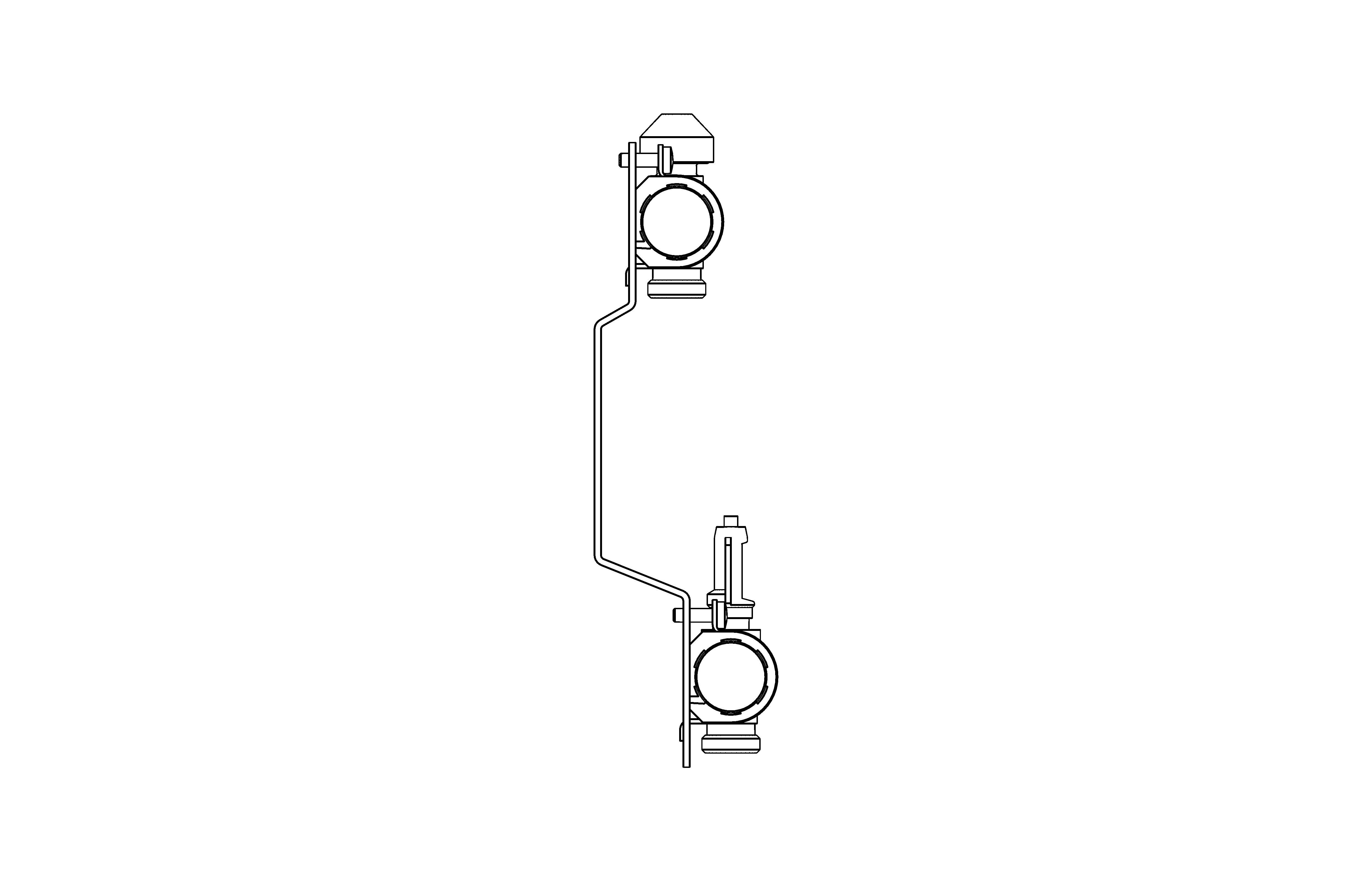

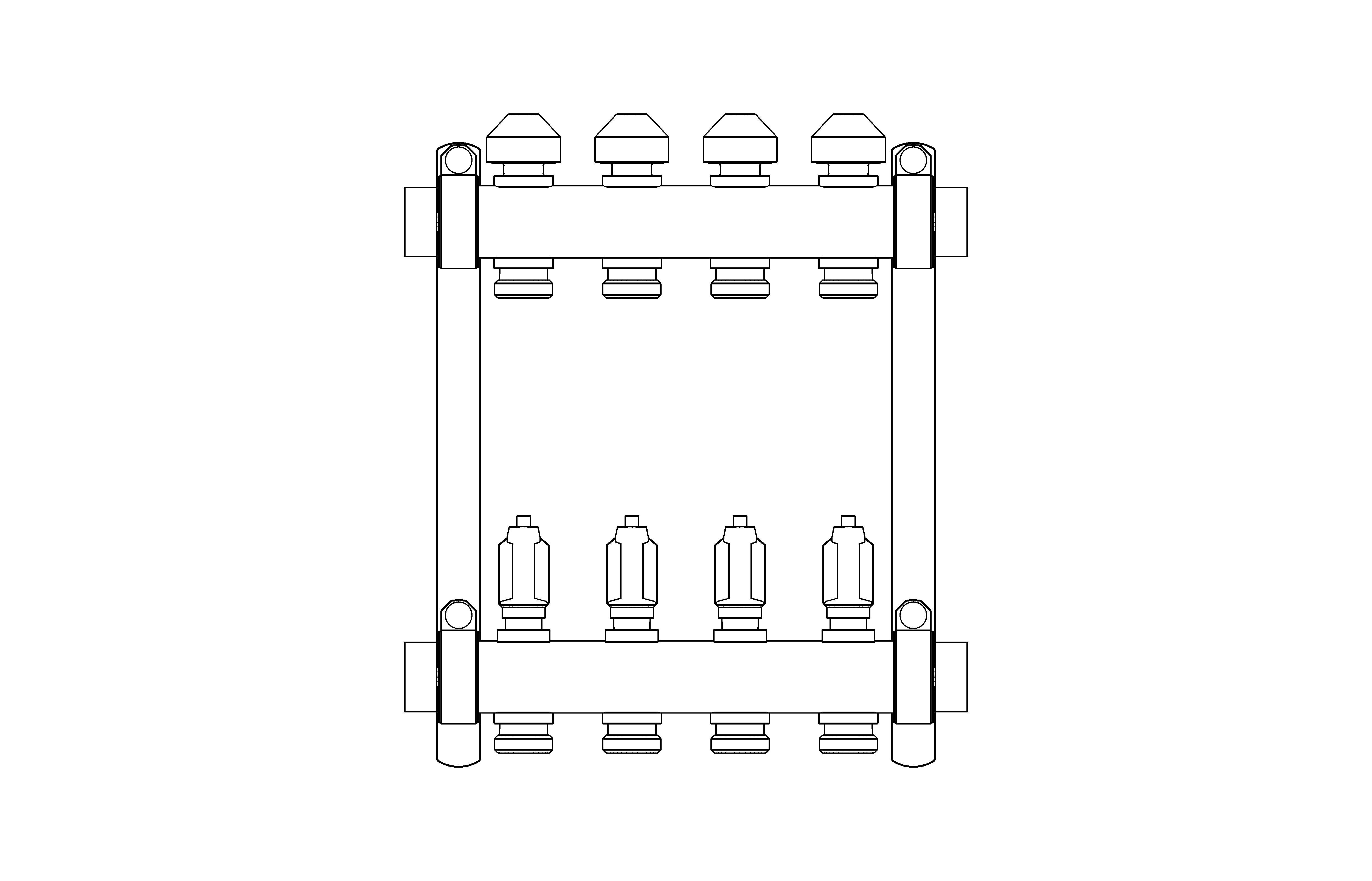

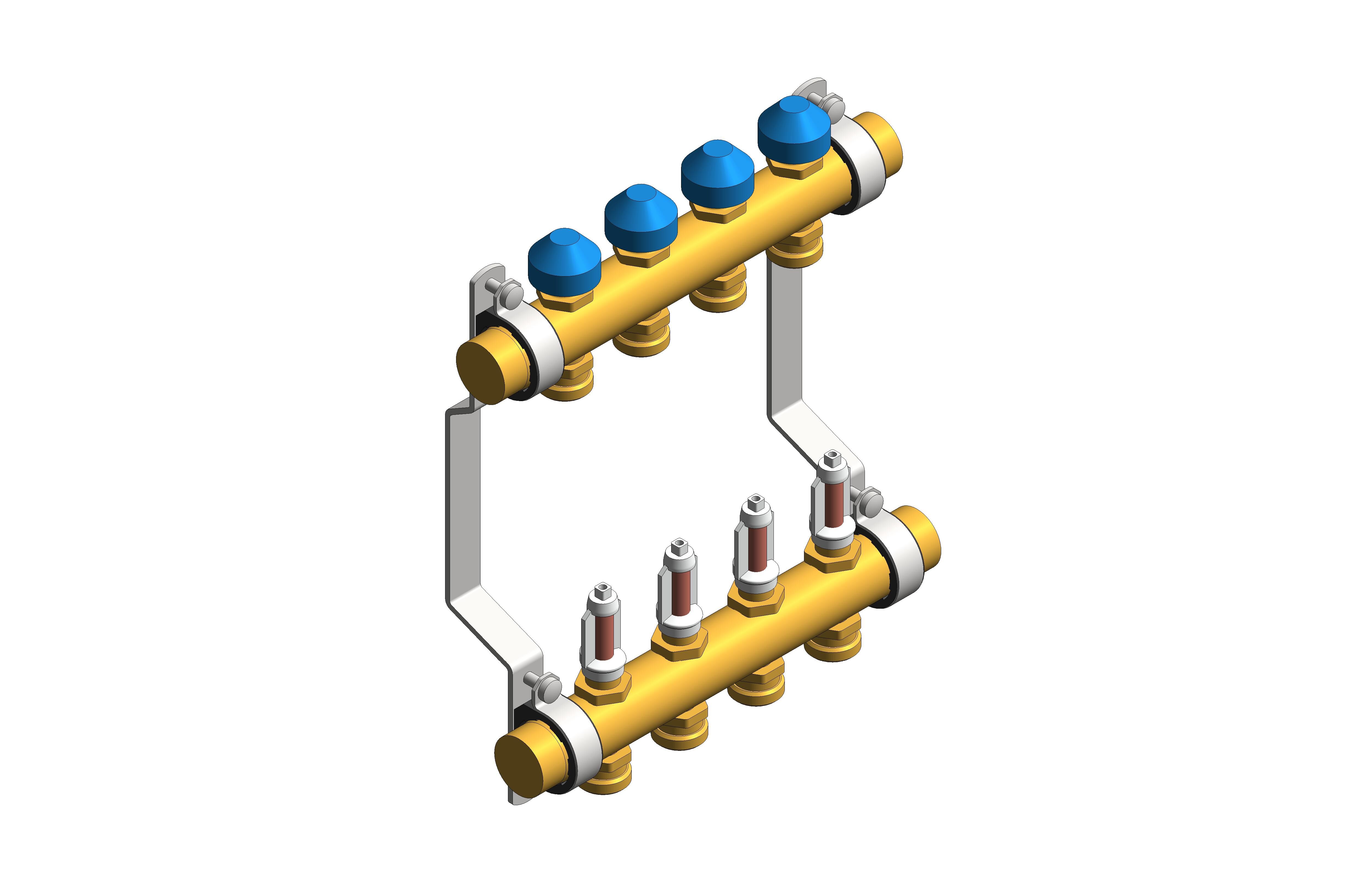

Manifold Brass HKV2013A (0-4L)
Description
Brass round pipe heating circuit manifold according to EN 1264-4. Flat sealing connections 1”M. Low installation depth. Connection nipple G3/4” with Eurocone, 50 mm distance. Function and pressure tested.
SUPPLY: Flowmeter 0 - 4 l/min with low pressure drop and shut-off function.
RETURN: Control and shut-off valve with adaption M30 x 1,5.
Technical Features:
- Max. admissible operation temperature: +90 °C
- Min. admissible operation temperature: -10 °C
- Max. admissible operation pressure: 10 bar
- Valves and fittings: Brass CW614N
- Manifold Pipe: Brass CW614N
- O-Rings: EPDM Elastomers
- Washers: EPDM Elastomers or Aramid AFM34
- Ball seat: PTFE
- Polymers: Impact- and temperature resistant
- Brackets: Steel, galvanized
Products: HKV2013A-VA MS02 / HKV2013A-VA MS03 / HKV2013A-VA MS04 / HKV2013A-VA MS05 / HKV2013A-VA MS06 / HKV2013A-VA MS07 / HKV2013A-VA MS08 / HKV2013A-VA MS09 / HKV2013A-VA MS10 / HKV2013A-VA MS11 / HKV2013A-VA MS12
Read moreObject Data
1 Revision
Last Updated
24/02/2021
Available Software
BS1192:4
Compliant
BSB
Compliant
EPD
Not Available
Sustainability & Environmental Data
Not available.
Environmental Product Declarations
There are no EPDs.
