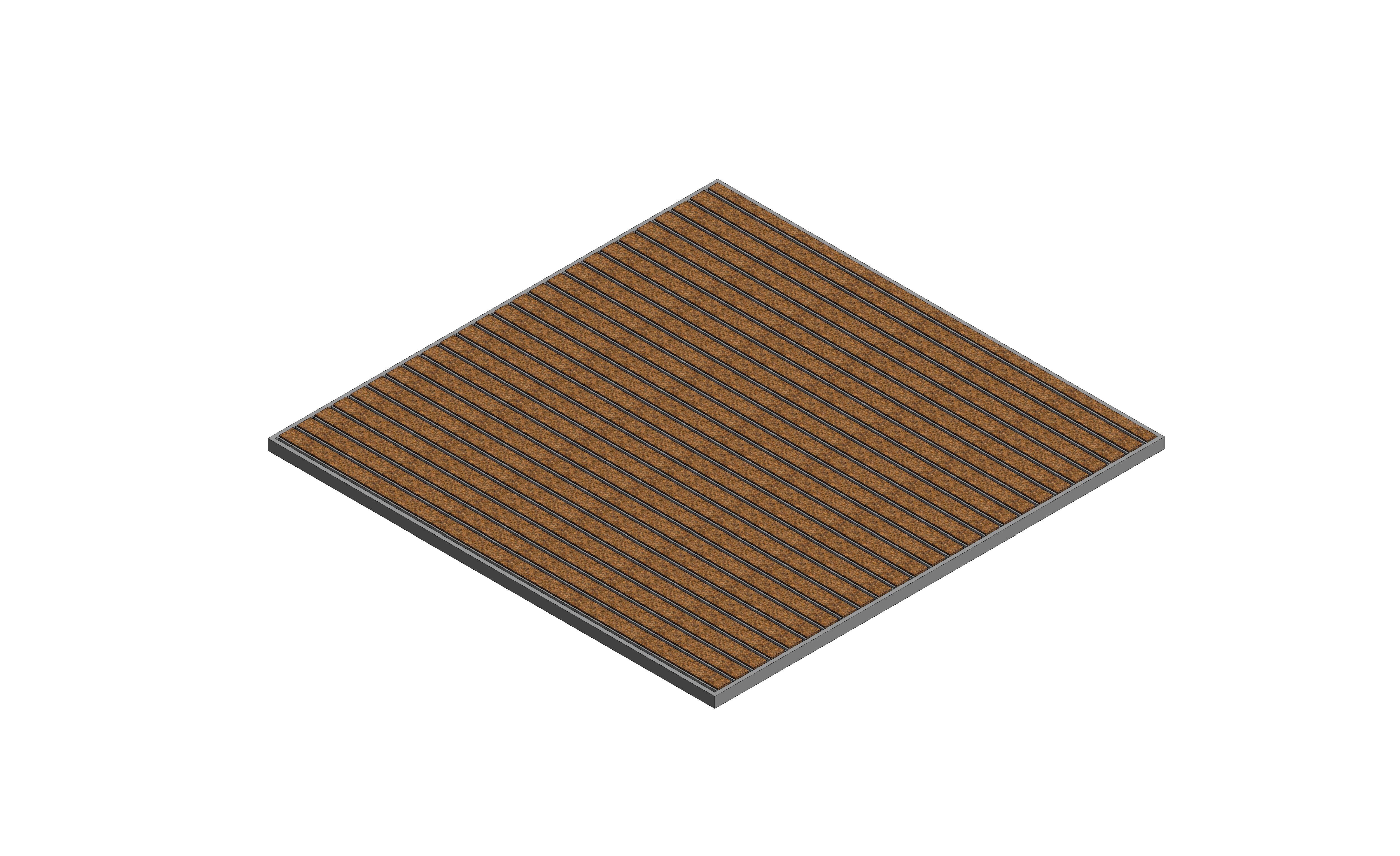

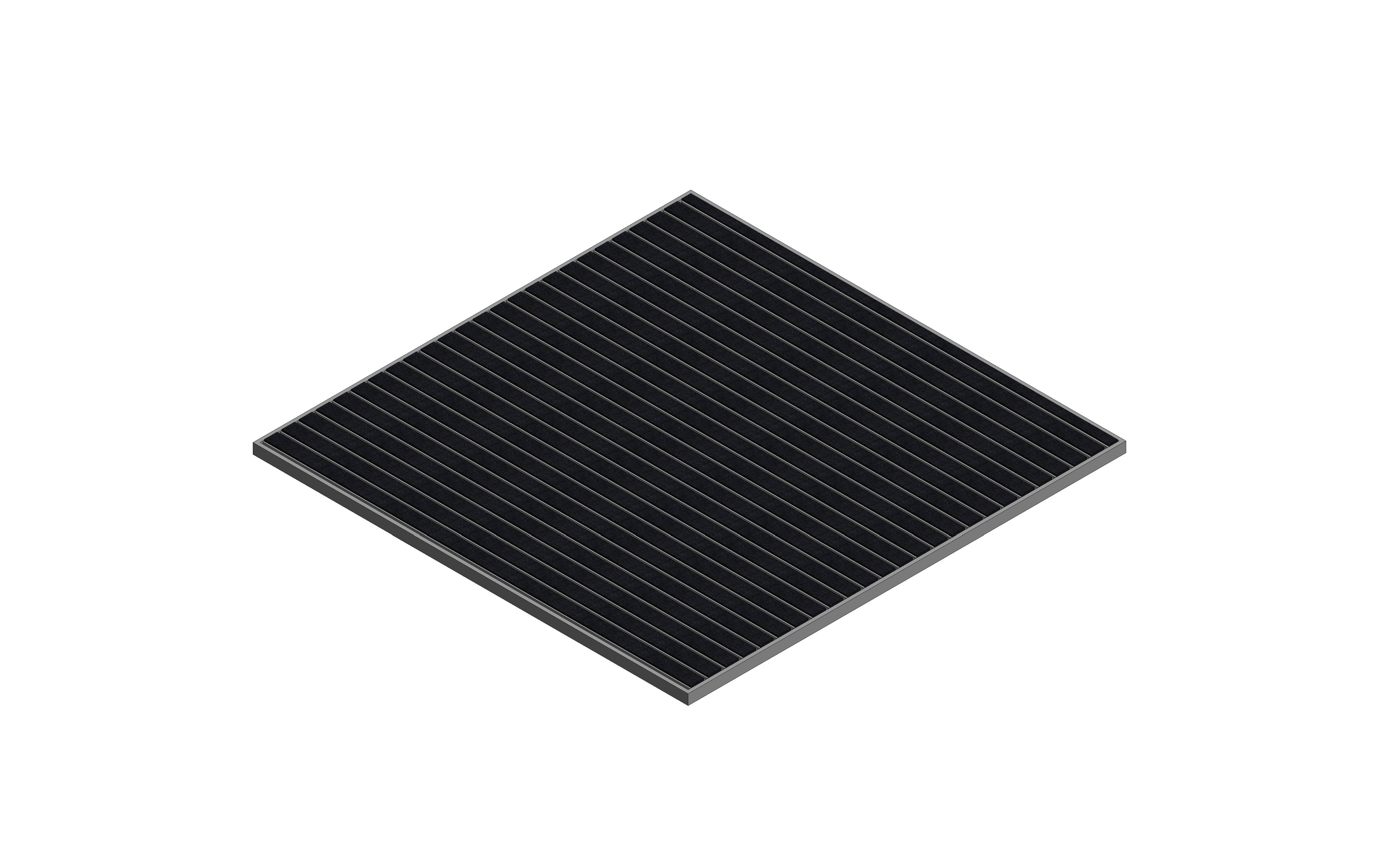

INTRAflow - Entrance Matting

by INTRAsystems

Download Add to collection

Description

Heavy-duty aluminium entrance matting with inbuilt drainage channels for superior moisture removal.

Ideal for external or extreme environments.
Available in open and closed construction
Can be used with Waterlogic system.
Full range of brush, rubber and fibre inserts available for internal and external applications.
Plank system compatible with INTRAform products.
Small sections can be easily replaced in the event of damage.

Object Data

1 Revision

Last Updated

02/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Installation Guide

Product Literature

Product Data Sheet

Object metadata

_AuthorJack Yellop
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
_Object User Guidewww.bimstore.co/product/files/documents/2019/04/12/intrasystems-userguide-v11.pdf
Accessibility Performancen/a
ArrangementInsert Internal
Assembly CodeE2010
Asset TypeFixed
Base ColourAnodised to any RAL colour Anodised to any RAL colour Anodised to any RAL colour Anodised to any RAL colour
Base MaterialAluminium Aluminium Aluminium
BIM Object NameINTRASystems_EntranceMatting_INTRAFlow
Classification NameUniclass2015
Classification ValuePr_35_57_11_26
Code Performancen/a
ColorAluminium
Constituents100% recycled aluminium profiles , choice of rubber, brush, polyamide or polypropylene inserts.
ConstructionClosed
Created Byinfo@intrasystems.co.uk
Created On2019-03-11T09:00:00
Default Elevation1219 mm
DescriptionHeavy duty aluminium Entrance Matting for highly efficient moisture removal and drainage. Ideal for exposed areas with high footfall levels.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturewww.bimstore.co/products/intraflow/document/product-literature
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
Environmental Product Declaration100% Recycled aluminium
Expected Life15
FeaturesAvailable in open and closed construction / Can be used with Waterlogic system. / Full range of brush, rubber and fibre inserts available for internal and external applications / Plank system compatible with INTRAform products. / Small sections can be easily replaced in the event of damage. / Easy to install.
FinishAluminium
Graden/a
Height17 mm
Ifc Export AsIfcCovering IfcCovering IfcCovering
Ifc Export TypeIfcCoveringTypeEnum.FLOORING
Insert Colour OptionsElite polyamide - 608 Black, 607 Anthracite, 606 Grey, 602 Blue, 605 Brown, 609 Purple, 610 Turquoise, 604 Coco, 601 Red. Premier polyamide - 007 Anthracite, 014 Grey. Polypropylene - 443 Anthracite, 451 Grey.
Integral AccessoriesPolypropylene ribbed fibre (colour)/ polyamide fibre (colour) / ribbed rubber/ brush or combination of inserts.
KeynoteM50
Linking Jointsn/a
ManufacturerINTRAsystems
Manufacturer NameINTRAsystems
MaterialHeavy Duty Aluminium
Matting Height16.5mm
Matwell Frame FinishMill finish as standard. Anodized finish in any RAL colour available to special order.
ModelINTRAflow
Model Numbern/a
Model ReferenceINTRA Flow
Module Width66.4mm
NBS DescriptionEntrance matting
NBS Noten/a
NBS Object NameINTRASystems,Entrance matting
NBS Office Master Tagn/a
NBS Reference45-35-35/420
Nominal Depth0 mm
Nominal Height17 mm
Patternn/a
Production Year2019
Radiusn/a
Referenced Standardn/a
Replacement Costn/a
Rubber MaterialIntraSytems_RubberMaterial_Rubber
ShapeRectangular
Sizen/a
Spare Partsn/a
Surface Insert OptionsRubber, Polyamide fibre, Polypropylene fibre, Brush.
Temperature ResistanceAluminium resistance: -50°C to +90°C.
Traffic TypeHeavy / Extreme
Type CommentsRecessed Entrance Mat System
Type NameINTRA Flow
URLwww.intrasystems.co.uk/products/intraflow/
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborwww.intrasystems.co.uk/products/intraflow/
Warranty Guarantor Partswww.intrasystems.co.uk/products/intraflow/
Weight18.4kg/m²

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
