GSF - Automatic Gas Valve

by Albion Valves

Download Add to collection

Description

Description
Automatic Gas Solenoid Valve. Flanged PN16. Approved to EN161. Complies with PED 2014/68/EU. Voltage 230V (-15%+10%) 50-60Hz.

Connection
Flanged PN16

Approvals/ other
EN161.
Complies with PED 2014/68/EU

Pressure
360 mbar

Temperature
-20°C to +60°C

Object Data

1 Revision

Last Updated

09/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

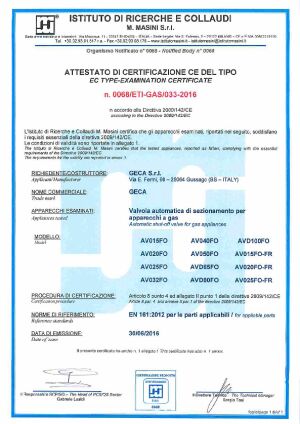

Product Certificates

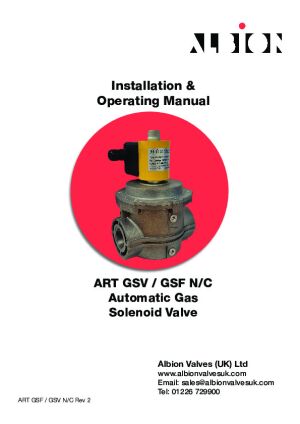

Installation Guide

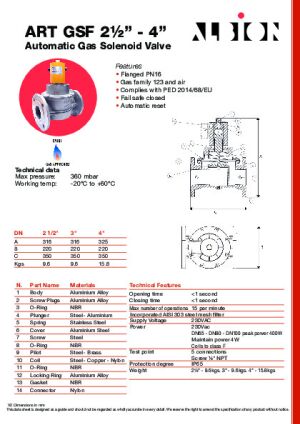

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/gsf/document/object-user-guide
A325.00 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B220.00 mm
B/2110.00 mm

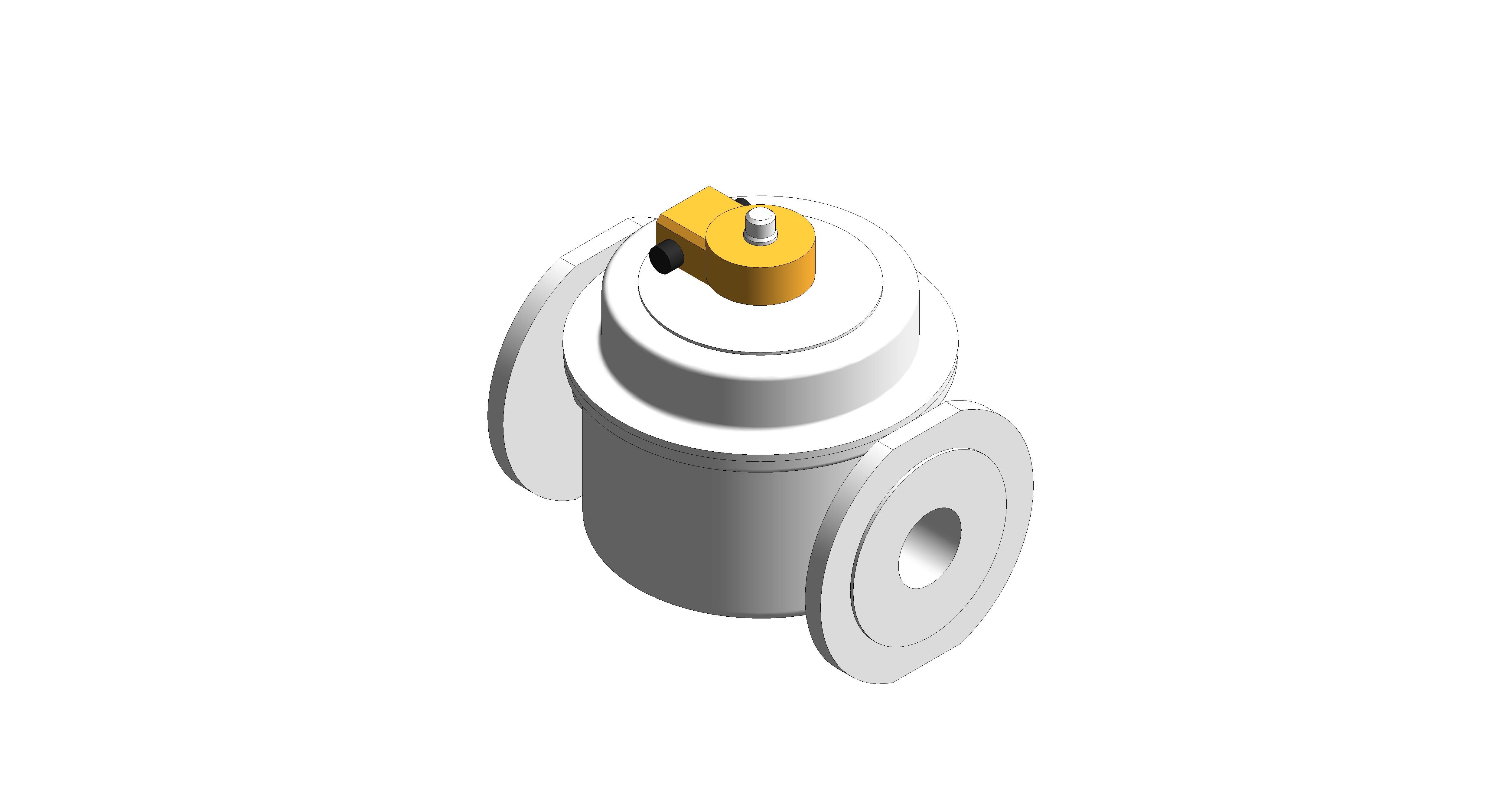

BIM Object NameAlbionValves_PipeAccessories_AutomaticGasValve_GSF
C350.00 mm
Classification NameUniclass2015
Classification ValuePr_65_54_33_38
Code Performancen/a
Coil Housing MaterialNylon - Yellow
ColorSilver
Connection Radius50.00 mm
Connection Size100.00 mm
Connector MaterialPlastic - Black
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2019-08-29 T09:00:00
DescriptionART GSF 2 1/2'' - 4'' Automatic Gas Valve
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/gsf/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
FinishAluminium Alloy
Flange Cut Off5.78 mm
Flange Thickness23.00 mm
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialAluminium Alloy
Max Pressure360 mbar
ModelART GSF Automatic Gas Valve
Model NumberDN 4"
Model ReferenceART GSF Automatic Gas Valve
NBS DescriptionGas solenoid valves
NBS Object NameAlbion Valves - Gas solenoid valves
NBS Office Master Tagn/a
NBS Reference90-30-35/320
Nominal Depth220.00 mm
Nominal Height325.00 mm
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Screw Inner35.00 mm
Screw Outer85.00 mm
Shapen/a
SizeDN 4"
Size DN100
Spare Partsn/a
Symbol Height55.00 mm
Symbol Letter43.75 mm
Symbol Letter/221.88 mm
Symbol Width116.67 mm
Thread Inch4
Thread Millimetre101.60 mm
Type CommentsDN 4"
Type NameART GSF Automatic Gas Valve
URLwww.albionvalvesuk.com/
Valve FinishAluminium Alloy
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor5
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight15.8 kgs
Working Temperature-20°C to 60°C

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
