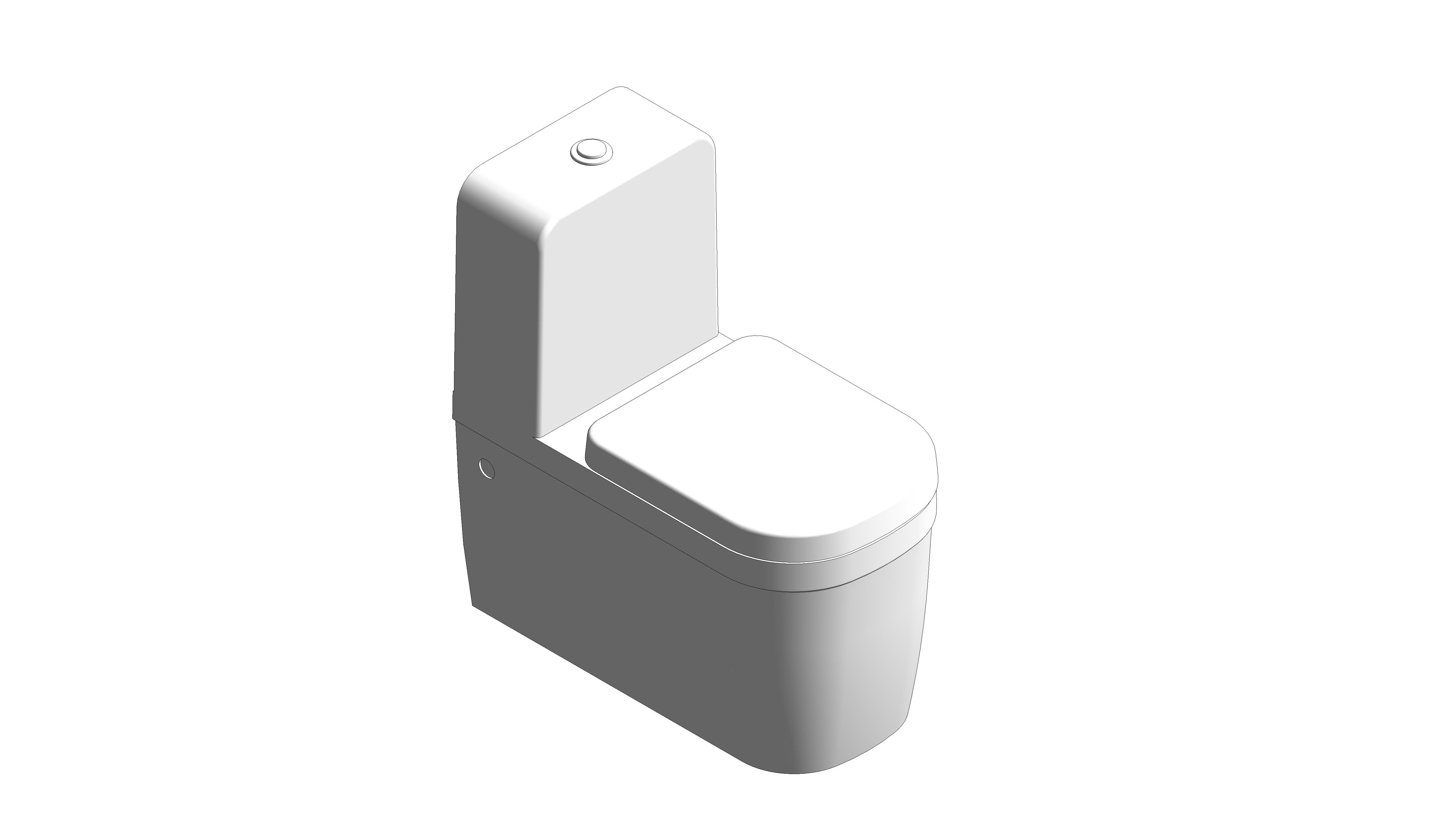

Grohe Eurosmart WC W.Cistern One Piece - 39119001

by GROHE

Download Add to collection

Description

377 x 690 mm
height 765 mm
weight 56 kg
sanitary ware
alpine white
siphonic flush
S trap
drain distance 305 mm
flush volume 5.0/3.5 l
Duroplast WC seat and lid with soft close function
HyperClean
Proguard
including fixation set

Object Data

2 Revision

Last Updated

05/02/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Installation Guide

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
ADA CompliantNo
Assembly CodeD2010310
Asset TypeFixed
BIM Object NameGrohe_PlumbingFixtures_EurosmartWC_39119001
Classification NameUniclass2015
Classification ValuePr_40_20_93_94
Code Performancen/a
ColorAlpine white
Constituentsn/a
Created Byinfo-uk@grohe.com
Created On2019-05-01T09:00:00
CW ConnectionNo
CWFU0
DescriptionEurosmart floor standing 1 piece toilet, 377 x 690mm, height 765mm, weight 56kg, sanitaryware alpine white, siphonic flush, S-trap, drain distance 305mm, flush volume 5.0/3.5 l, Duroplast WC seat and lid with soft close function, HyperClean, Proguard, including fixation set
Documentation Certificateswww.grohe.co.uk/en_gb/
Documentation Installation Guidewww.bimstore.co/product/5fd9e496-e1d9-4854-a8b9-792921557e8f/document/6225f909-2633-4b18-83d8-304b4f30d73b/download
Documentation Literaturewww.bimstore.co/product/5fd9e496-e1d9-4854-a8b9-792921557e8f/document/c6d03a2b-1929-41ae-ba90-59a3c895e3e5/download
Documentation Maintenancewww.grohe.co.uk/en_gb/
Documentation Technicalwww.grohe.co.uk/en_gb/
Duration UnitYears
EcojoyNo
Expected Life0
FeaturesSiphonic flush, S-trap, Duroplast WC seat and lid with soft close function, HyperClean, Proguard, including fixation set
Finishn/a
Graden/a
Height765.00 mm
HW ConnectionNo
HWFU0
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeIfcSanitaryTerminalTypeEnum.TOILETPAN
Industry Standardsn/a
KeynoteN13/110
LEED Creditn/a
Length690.00 mm
Low Emitting MaterialNo
ManufacturerGrohe
Manufacturer NameGrohe
Masterformat Number01 52 16
Masterformat TitleSanitary Facilities
MaterialCeramic
ModelEurosmart floor standing WC
Model Number39119001
Model ReferenceEurosmart floor standing WC
NBS DescriptionWC Pans
NBS Object NameGrohe - WC Pans
NBS Office Master Tagn/a
NBS Reference45-35-70/384
Nominal Depth367.00 mm
Nominal Height765.00 mm
Nominal Length690.00 mm
Percentage Of Recycled Contentn/a
Product Documentation Linkn/a
Production Year2019
Product Page URLn/a
Push Button MaterialGrohe_Metal_Stainless Steel
Referenced Standardn/a
Replacement Costn/a
Seat MaterialGrohe_Plastic_White
Shapen/a
SizeH: 765mm, W: 367mm, L: 690mm
Spare Partsn/a
Type Comments39119001
Type NameEurosmart floor standing WC
URLwww.grohe.co.uk/en_gb/
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionYes
WC MaterialGrohe_Ceramic_AlpineWhite
Width367.00 mm
