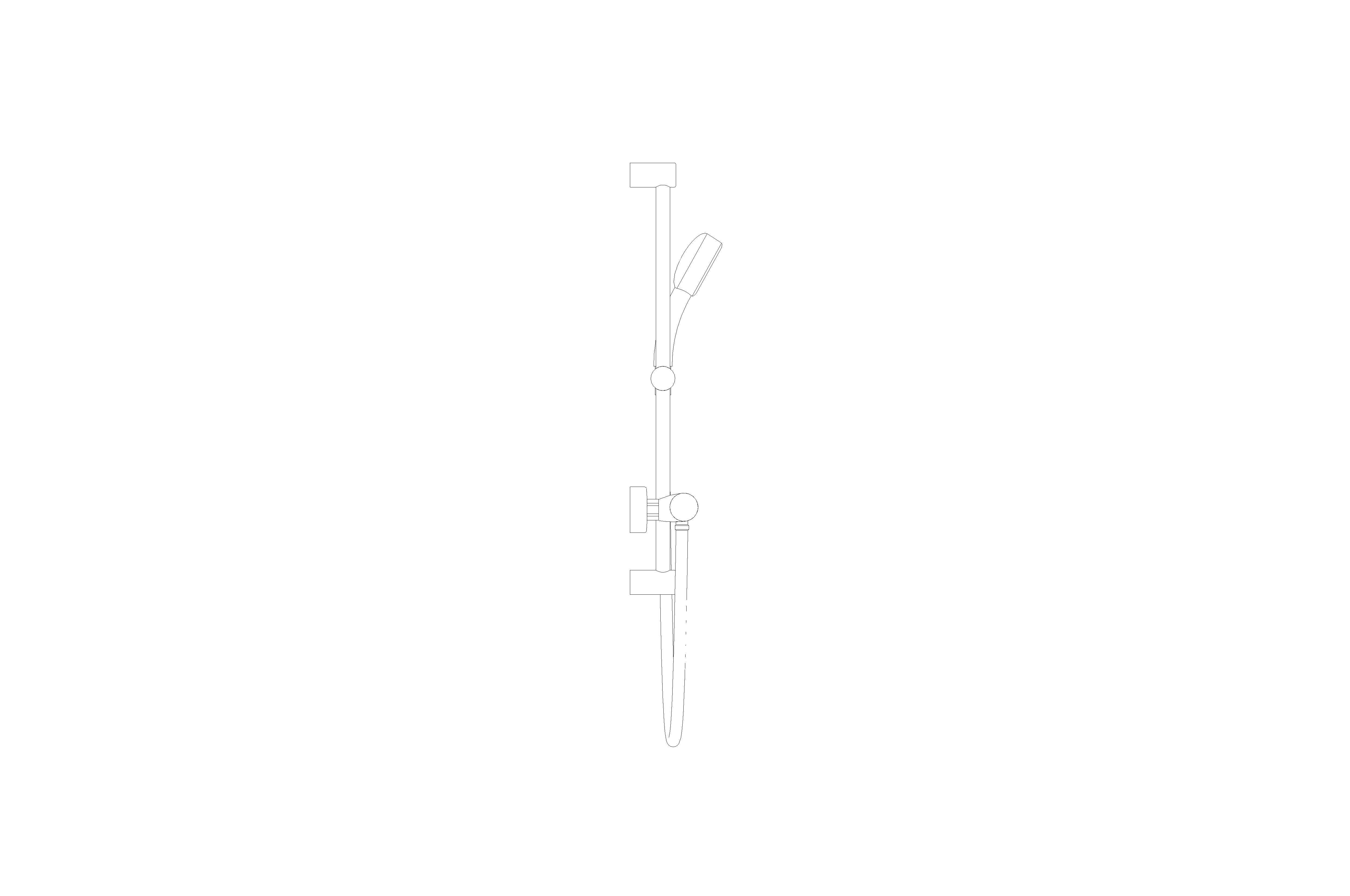

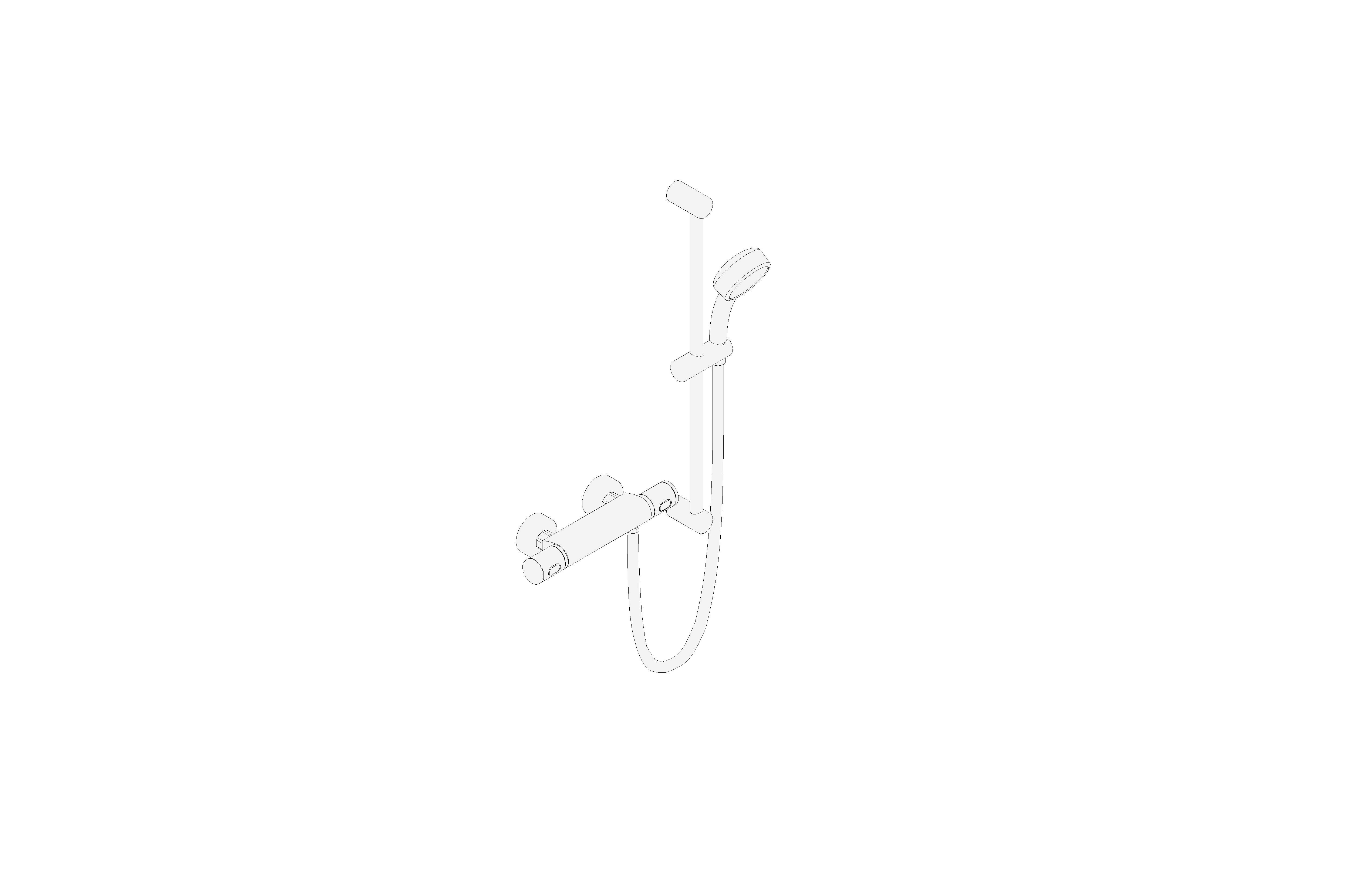

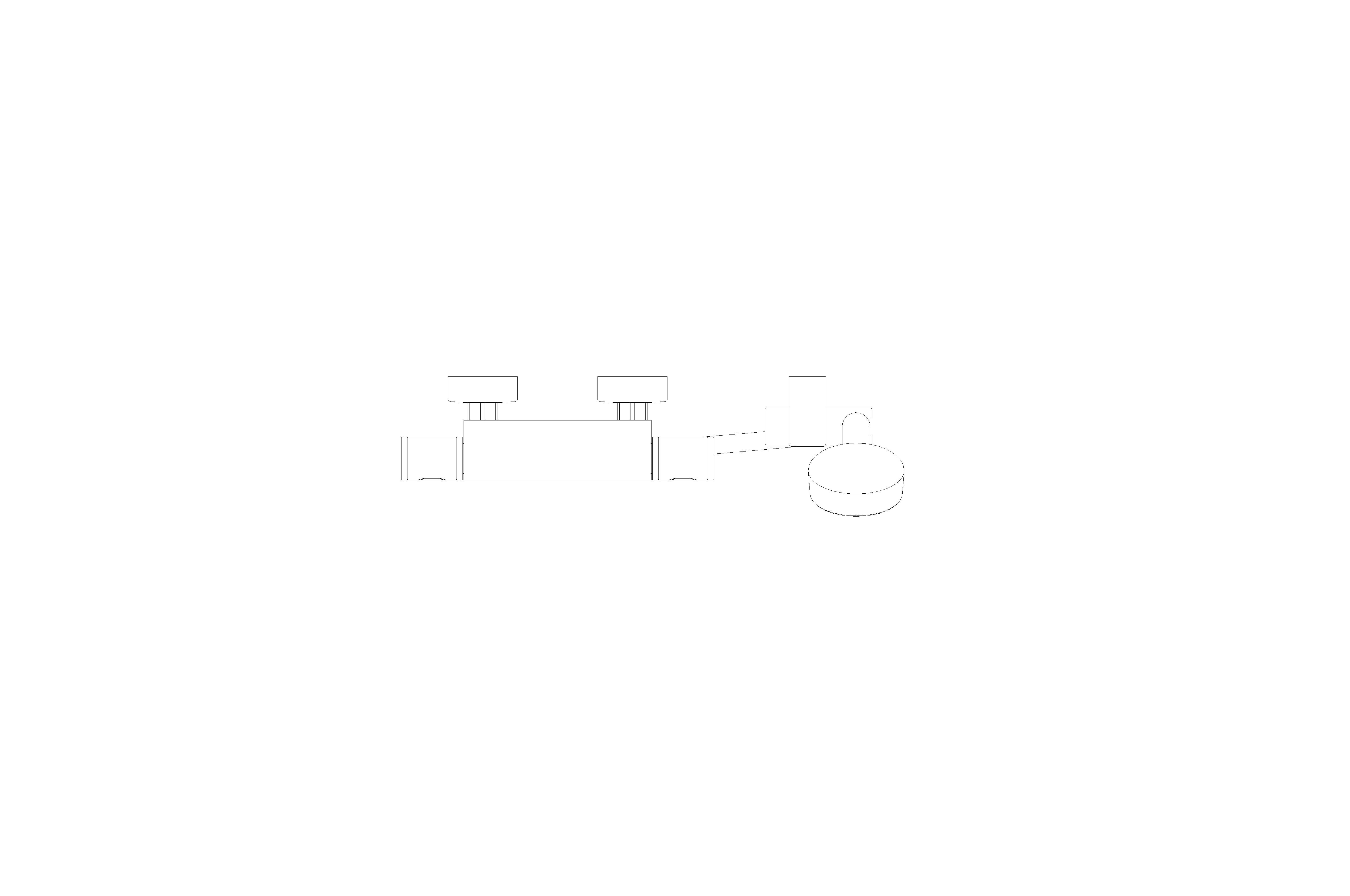

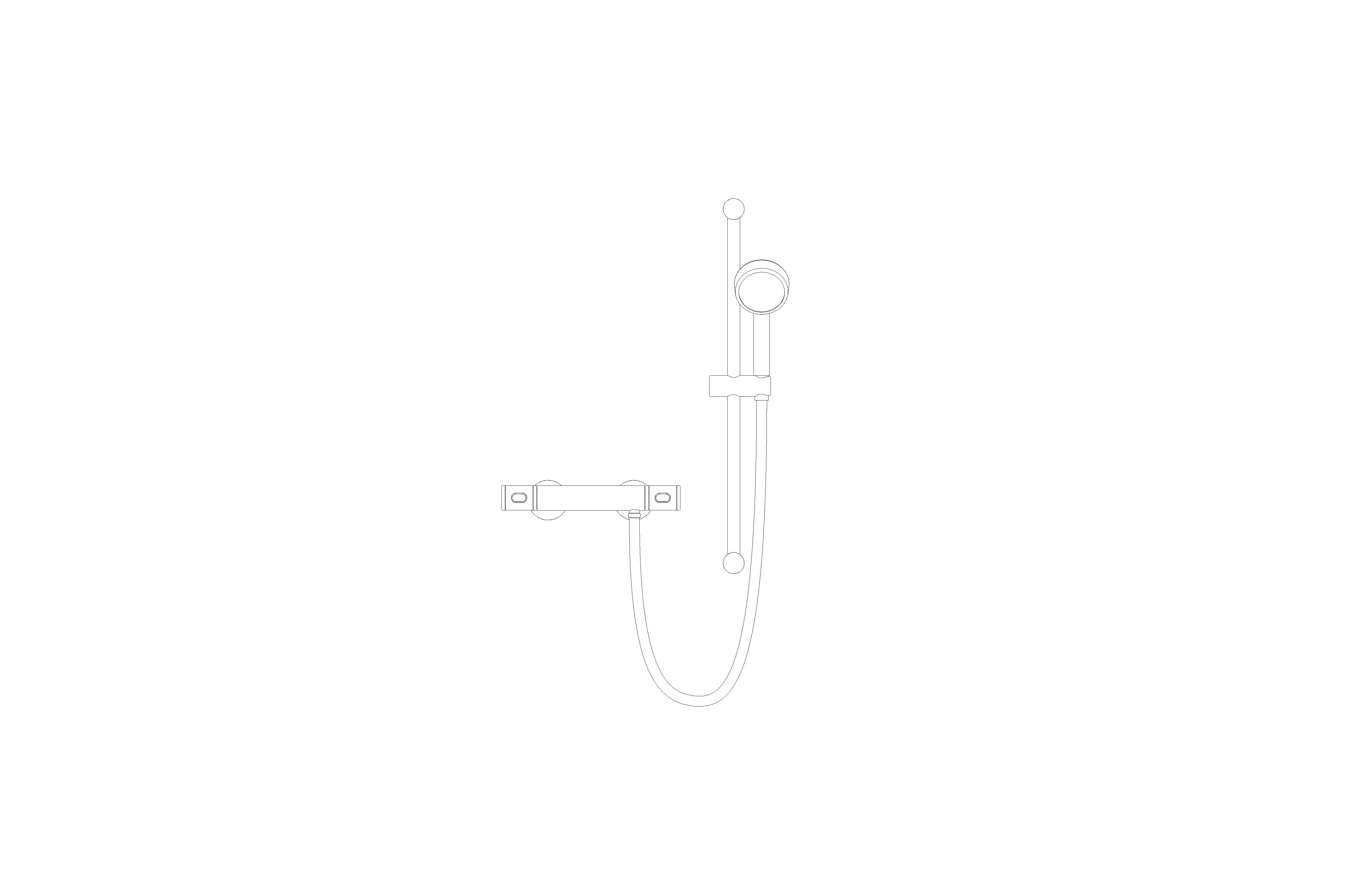

Grohe Grohtherm 1000 Performance Thermostatic shower mixer 1/2" with shower set- 34783000

by GROHE

Download Add to collection

Description

consisting of:

Grohtherm 1000 Performance thermostatic shower mixer 1/2" (34 776 000)
Tempesta Cosmopolitan 100 shower set, 2 sprays, 600 mm (27 578 002)
optional GROHE EcoJoy 5.7 l/min flow limiter included

Object Data

1 Revision

Last Updated

11/05/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Assembly CodeC1030
Asset TypeFixed
BIM Object NameGrohe_PlumbingFixtures_ThermostaticShowerSet_Grohtherm800Cosmopolitan-34783000
Classification NameUniclass2015
Classification ValuePr_40_20_87_81
Code Performancen/a
ColorChrome
Constituentsn/a
Created Byinfo-uk@grohe.com
Created On2020-04-015 T09:00:00
CW ConnectionYes
CWFU0
Default Elevation1016.00 mm
Depth70.00 mm
DescriptionConsisting of: Grohtherm 1000 Performance thermostatic shower mixer 1/2" (34 776 000); Tempesta Cosmopolitan 100 shower set, 2 sprays, 600 mm (27 578 002); Optional GROHE EcoJoy 5.7 l/min flow limiter included.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYear
Expected Life0
FeaturesConsisting of: Grohtherm 1000 Performance thermostatic shower mixer 1/2" (34 776 000); Tempesta Cosmopolitan 100 shower set, 2 sprays, 600 mm (27 578 002); Optional GROHE EcoJoy 5.7 l/min flow limiter included.
FinishChrome
Graden/a
Height96.50 mm
Hose MaterialGrohe - Rubber - Chrome
HW ConnectionYes
HWFU0
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteN13
Length313.00 mm
ManufacturerGrohe
Manufacturer NameGrohe
MaterialChrome
Mixer MaterialGrohe - Metal - Chrome
ModelGrohtherm 800 Cosmopolitan
Model Number34783000
Model ReferenceGrohtherm 800 Cosmopolitan
NBS DescriptionShower mixers
NBS Object NameGrohe - Shower mixers
NBS Office Master Tagn/a
NBS Reference45-35-70/335
Nominal Depth70.00 mm
Nominal Height96.50 mm
Nominal Length313.00 mm
Production Year2020
Rail Depth70.00 mm
Rail Length620.00 mm
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare PartsCeramic headpart 1/2" (45346000); O-ring Ø 18.2 x Ø 1.7 (0392400M); Fitting ring (47743000); Thermostatic compact cartridge 1/2" (47439000); Race (47975000); Non-return valve (47189000); Dirt strainer (0726400M); Non-return valve (08565000); O-ring ø 17 x ø 2 (0305500M); S-union (12662000); Non-return valve (08565000); Shower rail holder (48095000); Glide element (12140000); Dirt strainer (0700200M); Compensation disc (48051000*); Extension 3/4", 20mm (0713000M*); Special spanner (19377000*); Socket spanner (19332000*); GROHE TurboStat cartridge 1/2" (47175000*). *Optional Accessories.
Type Comments34783000
Type NameGrohtherm 800 Cosmopolitan
URLwww.grohe.co.uk/en_gb/
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo
