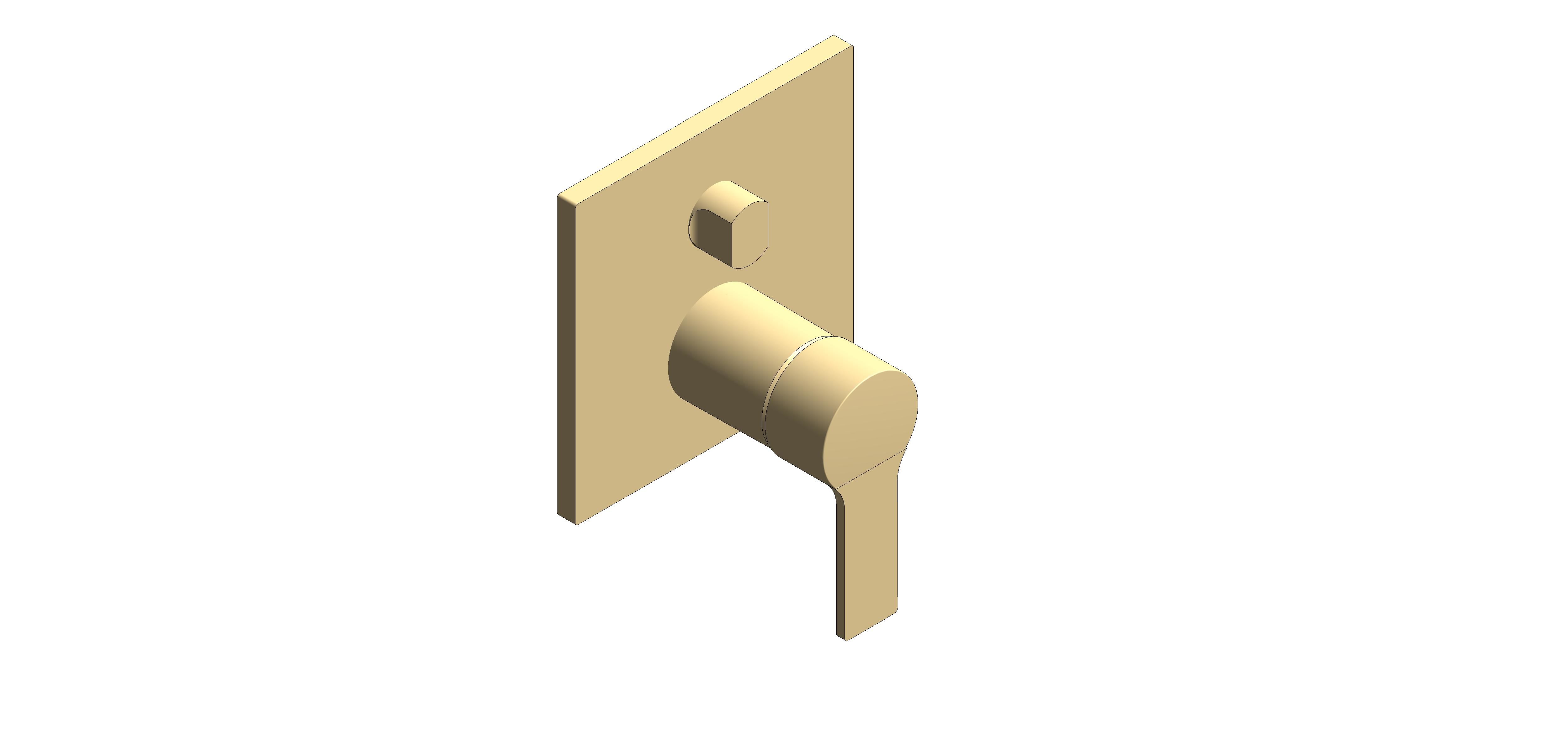

ALLURE Thermostat for concealed installation with 2-way diverter head shower/hand shower (29181GL2)

Download Add to collection

Description

PRODUCT MAIN FEATURES

Set for final installation for
GROHE Rapido SmartBox 35 600/35 604
GROHE TurboStat compact cartridge with wax thermoelement
GROHE Long-Life finish
Wall escutcheon with GROHE FastFixation(covered escutcheon- and shaft sealing, covered fixing)
Metal escutcheon, retroactively 6° adjustable
Printed hand shower and bath filler symbol
GROHE SafeStop safety button at 38°C(calibration required)
GROHE SafeStop Plus optional temperature limiter at 43°C or 46°C included
GROHE AquaDimmer, integrated shut off/diverter valve
Flow performance: outlet B = 27 l/min outlet C = 30 l/min
Without roughing-in-set
Printed head and hand shower symbol

Object Data

1 Revision

Last Updated

28/10/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorRL IH 186
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/grohe-29181gl2/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGroheSpa_Allure_Thermostat_(29181GL2)
Classification NameUniclass2015
Classification ValuePr_40_20_87_80
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorCool Sunrise
Constituentsn/a
Cradle To Cradle CertificationN/A
Created Byinfo-uk@grohe.com
Created On2024-06-11T:09:00:00
Default Elevation0 mm
DescriptionALLURE Thermostat For Concealed Installation With 2-Way Diverter Head Shower / Hand Shower 29181GL2
Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/100000/100000/100000/100200/100240/100243/100243838/1280/100243838.jpg
Documentation Certificateswww.bimstore.co/products/grohe-29181gl2/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/grohe-29181gl2/document/installation-guide
Documentation Literaturewww.bimstore.co/products/grohe-29181gl2/document/product-literature
Documentation Maintenancewww.bimstore.co/products/grohe-29181gl2/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/grohe-29181gl2/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF000010Finishing section
EF002149TRUE
EF002286not applicable
EF002671Other
EF011775EB
EF011779TRUE
EF01275327.00
EF014578true
EF014591true
EF016731Group I,<= 20 dB(A)
EF020105Yes
EF020774false
EF020775false
EF020776true
EF020777false
EF020778false
EF020779false
EF020780Two-grip
EF020781Top section, ceramic
EF020782Stainless steel
EF020783Other
EF020784Other
EF020785not applicable
EF020787Group II, <=30 dB(A)
EF020788false
EF0207890
EF020790true
EF020963true
EF02182727.0
EF021855false
EF022042C
EF023686not applicable
EF023687FALSE
EF023957TRUE
EFDE0022None
EFSE0002false
Expected Life0
Featuresn/a
Finishn/a
Full Recyclability Of PlasticAll plastic components are fully recycable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
Ifc Export AsIfcBuildingElementProxy
Ifc Export TypeIfcBuildingElementProxy
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
ModelALLURE Thermostat For Concealed Installation With 2-Way Diverter Head Shower / Hand Shower 29181GL2
Model Number29181GL2
Model ReferenceALLURE Thermostat For Concealed Installation With 2-Way Diverter Head Shower / Hand Shower 29181GL2
NBS DescriptionShower thermostatic valves
NBS Noten/a
NBS Object NameGrohe - Shower thermostatic valves
NBS Office Master Tagn/a
NBS Reference45-35-70/335
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/2/291/original/29181GL2-pqchart-en_GB.svg cdn.cloud.grohe.com/PQCharts/lores/2/291/original/29181GL2-pqchart-en_GB.svg
Primary MaterialGrohe_CoolSunrise
Product Descriptionset for final installation for GROHE Rapido SmartBox (35 600/35 604) GROHE TurboStat compact cartridge with wax thermoelement GROHE Long-Life finish GROHE FastFixation escutcheon with covered shaft sealing and covered fixing metal escutcheon, retroactively 6° adjustable printed hand shower and bath filler symbol GROHE SafeStop safety button at 38°C GROHE SafeStop Plus optional temperature limiter at 43°C or 46°C included GROHE AquaDimmer, integrated shut off/diverter valve metal handles flow performance: outlet B = 27 l/min, outlet C = 30 l/min without roughing-in set printed head and hand shower symbol
Production Year2024
Product Number29181GL2
Product Page URLwww.grohe.co.uk/en_gb/-29181GL2.html
Product Short TextThermostat for concealed installation with 2-way diverter head shower/hand shower
Product TypeThermostat
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/2000/2200/2200/2208/2208210/original/2208210.pdf
Type CommentsALLURE Thermostat For Concealed Installation With 2-Way Diverter Head Shower / Hand Shower 29181GL2
Type NameALLURE Thermostat For Concealed Installation With 2-Way Diverter Head Shower / Hand Shower 29181GL2
URLwww.grohe.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
