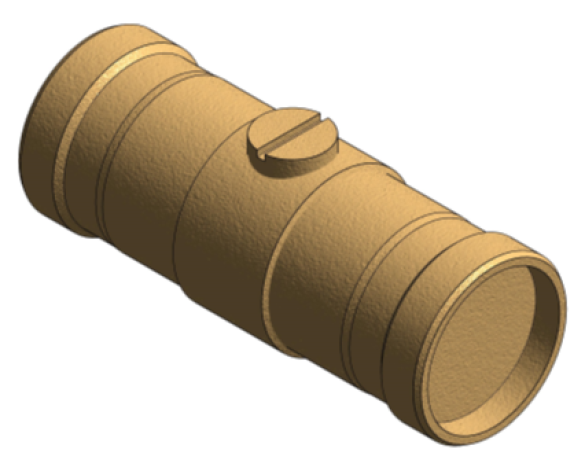

Floguard Double Check valve

by Reliance Valves

Download Add to collection

Description

- Double check valves protect against the risk of back flow and back syphonage contaminations- Compact, lightweight construction for easy installation- Allows a high flow rate with minimum pressure drop- Ideal for all class 3 contamination risks as per water supply (water fittings) Regulations 1999- Integral test point for monitoring correct functioning of the downstream check valve- Available with a comprehensive selection of FBSP and compression connections

FLOW230001FLOW230002FLOW230003FLOW230004FLOW230005FLOW230006FLOW230007FLOW230008FLOW230009FLOW230010

Object Data

1 Revision

Last Updated

31/08/2016

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_authorized byKris Atkinson
_BIMspec_GUID1
_created byElisabath Matuki
_current revision1
_distributed bywww.bimstore.co.uk
AYes
Accessibility Performancen/a
Assembly CodeD2020300
Asset TypeFixed
BNo
Classification NameUniclass
Classification ValuePr_65_54_40_44
Code Performancen/a
ColorSliver
Connection Type15mm FBSP
Constituentsn/a
Created Bytechnical@rwc.co.uk
Created On2016
DescriptionThe Reliance Water Controls brand specialises in pressure, temperature, flow control and washroom products and has a long history in supplying the sanitary plumbing market and hot water system manufacturers. With our heritage and expertise, Reliance Worldwide Corporation (UK) Ltd (RWC UK) played a key role in the development of thermostatic technology and unvented hot water systems in the UK. Today we remain at the forefront of the industry delivering new innovations each year to drive water efficiency and improve water safety in both domestic and commercial applications.
Duration UnitYears
Expected Life0
FeaturesDouble check valves protect against the risk of back flow and back syphonage contaminations. Compact, lightweight construction for easy installation. Allows a high flow rate with minimum pressure drop. Ideal for all class 3 contamination risks as per water supply (water fittings) Regulations 1999. Integral test point for monitoring correct functioning of the downstream check valve. Available with a comprehensive selection of FBSP and compression connections.
FinishDRZ Brass
Fittings MaterialRWC DRZ Brass Sandblasted
Graden/a
Inlet 1_Diameter15 mm
Inlet 1_Radius8 mm
KeynoteS12
ManufacturerReliance Worldwide Corporation
Manufacturer AddressReliance Worldwide Corporation (UK) Ltd, Worcester Road, Evesham, Worcestershire, WR11 4RA, UK
Manufacturer Fax+44 (0) 1386 712401
Manufacturer Tel+44 (0) 1386 712400
MaterialDRZ Brass
Max Temperature85 °C
ModelFlored Isolating Valve/Strainer
Model NumberPlease record on commissioning
NBS DescriptionIsolating valves;
NBS Object Name90-15-40/325 Isolating valves;
NBS Reference90-15-40/325
Nominal Length82 mm
Nominal Width24 mm
Outlet 1_Diameter15 mm
Outlet 1_Radius8 mm
Product CodeFLOW230001
Production Year2016
Referenced StandardWRAS Approved, BS EN 13959
Replacement Costn/a
Shapen/a
Size70 x 92 x 26mm
Spare Partsn/a
Type NameFlored Isolating Valve/Strainer
URLwww.rwc.co.uk
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Working Pressure Max16.0 bar
Working Pressure Min0.1 bar
