Flat Roof Dome

by Keylite Roof Windows

Download Add to collection

Description

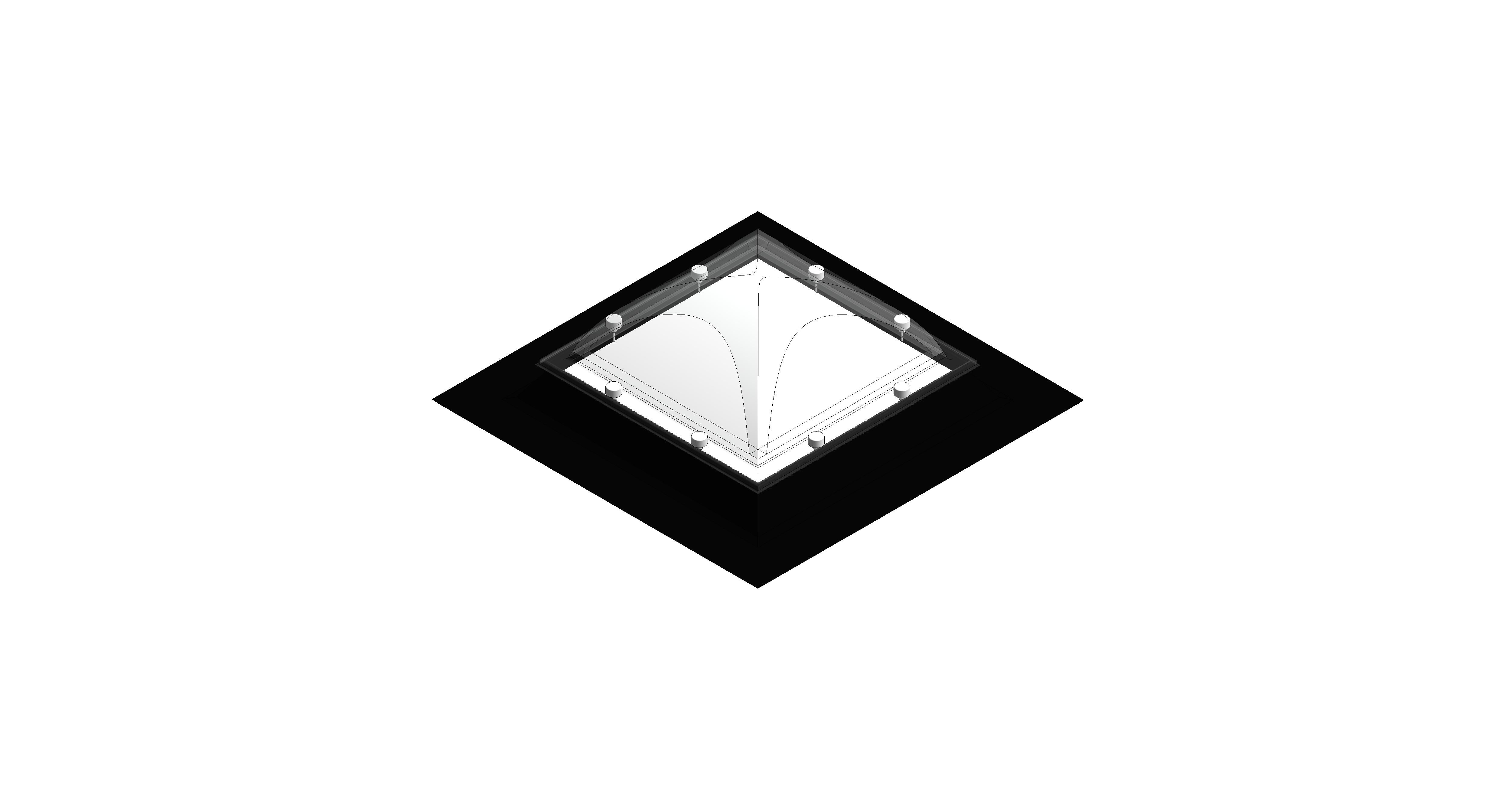

Keylite Flat Roof Dome

Keylite Flat Roof Domes are thermoformed with a triple skin construction. Polycarbonate is virtually unbreakable, with an impact strength 250 times greater than glass. Keylite Flat Roof Domes can be supplied with a clear or frosted finish.

Object Data

1 Revision

Last Updated

01/07/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

BS8541-2

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Installation Guide

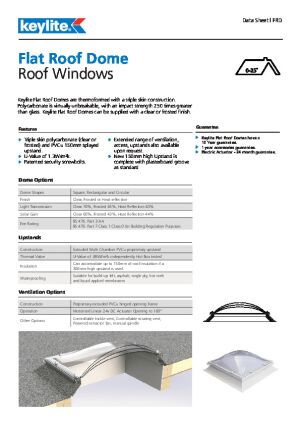

Product Literature

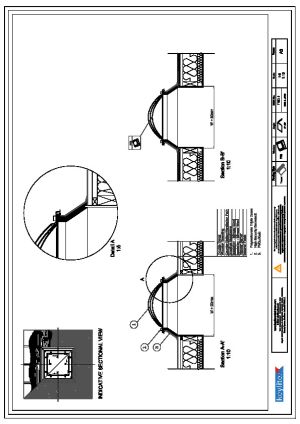

Technical Data Sheet

Product Data Sheet

Object metadata

_Authorinfo@keylite.co.uk
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Byinfo@keylite.co.uk
_Current Revision2
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Acoustic Performance22
Air PermeabilityClass A4
Assembly CodeB3020100
Asset TypeFixed
BIM Object NameKeylite_Window_FlatRoofDome_FRDR1015
Bolt MaterialKeylite - Plastic - White
Classification NameUniclass2015
Classification ValueSs_30_30_72_72
Code Performancen/a
Colorn/a
Constituentsn/a
Created Byinfo@keylite.co.uk
Created On19-05-2021 T09:00:00
DescriptionKeylite Flat Roof Domes are thermoformed with a triple skin construction. Polycarbonate is virtually unbreakable, with an impact strength 250 times greater than glass. Keylite Flat Roof Domes can be supplied with a clear or frosted finish.
Documentation Certificateswww.bimstore.co/products/flat-roof-dome/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/flat-roof-dome/document/installation-guide
Documentation Literaturewww.bimstore.co/products/flat-roof-dome/document/product-literature
Documentation Maintenancewww.bimstore.co/products/flat-roof-dome/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/flat-roof-dome/document/technical-data-sheet
Dome MaterialKeylite - Polycarbonate - Clear
Duration UnitYear
Expected Life0
FeaturesTriple skin polycarbonate (clear or frosted) and PVCu 150mm splayed upstand; U-Value of 1.3W/m²k; Patented security screwbolts; Extended range of ventilation, access, upstands also available upon request; New 150mm high Upstand is complete with plasterboard groove as standard.
Finishn/a
GlassThermal double glazed
Graden/a
Height1500 mm
Ifc Export AsIfcWindow
Ifc Export TypeIfcWindowTypeEnum.WINDOW
Impact ResistanceSB 1200
KeynoteL10
Light Transmittance0.85
ManufacturerKeylite
Manufacturer NameKeylite
Materialn/a
ModelKeylite Flat Roof Dome R1015
Model NumberFRD R1015
Model ReferenceKeylite Flat Roof Dome R1015
NBS DescriptionRooflight systems
NBS Object NameKeylite - Rooflight systems
NBS Office Master Tagn/a
NBS Reference20-25-75/170
Nominal Depth1500 mm
Nominal Height0 mm
Nominal Length1000 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
S Bolt Offset Horizontal400 mm
S Bolt Offset Vertical250 mm
ShapeSquare
Size1000mm(W) x 1500mm(L)
Solar Factor G0
Spare Partsn/a
Thermal Transmittance Of Glass1.5
Thermal Transmittance Of Window1.3
Type CommentsFRD R1015
Type NameFRD R1015
URLwww.keyliteroofwindows.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYear
Warranty Guarantor Laborinfo@keylite.co.uk
Warranty Guarantor Partsinfo@keylite.co.uk
Water TightnessE1050
Width1000 mm
