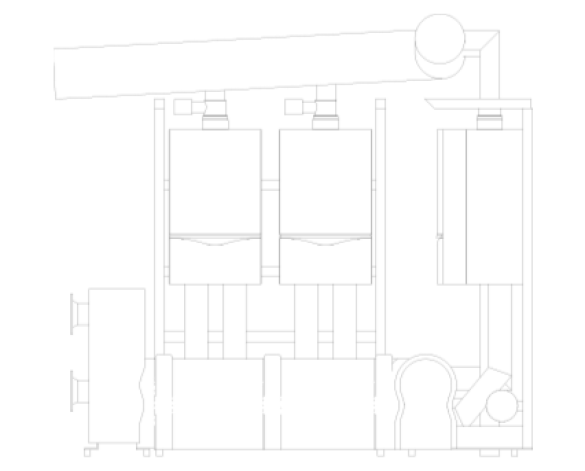

ecoTEC Commercial Corner Cascading Boiler Rig

Description

Vaillant’s precision-engineered cascade rigs offer enhanced efficiency and flexibility on outputs. This easily expandable modular system is available for inline, back to back and corner installations of up to eight ecoTEC 46, 65, 80, 100 or 120 wall hung commercial boilers.

Our cascade rigs allow us to offer tailor-made heat output appliances, which can be switched off individually when not required. They provide a higher modulation range compared to a single boiler, along with maintenance flexibility, as single appliances can be serviced during running operation. What’s more, our plate heat exchangers or hydrauliclow loss headers ensure high installation flexibility.

This Download Includes:

multiple variations of the ecoTEC Corner Casacding Rig including 46, 65, 80, 100, 120kW appliance outputs

Up to 8 appliances used in a cascade providing outputs from 98kW to 960kW outputs.

Rev 4 - Low Loss Header removed
