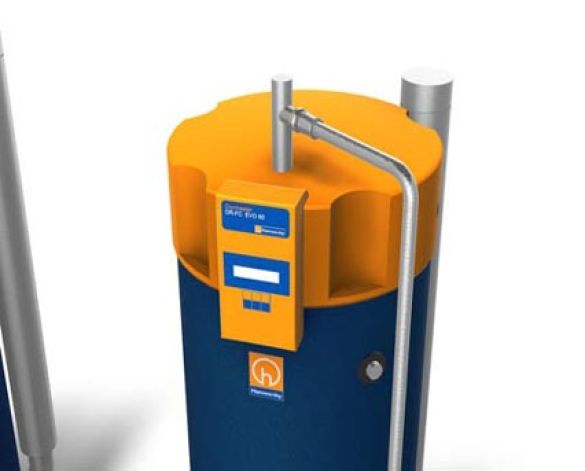

Dorchester DR-FC Evo Condensing Water Heater
Description
The Dorchester DR-FC Evo range of condensing water heaters from Hamworthy replaces the DR-FC range and brings with it even higher outputs, significant performance improvements and seasonal efficiencies up to 107% nett for commercial water heating applications.

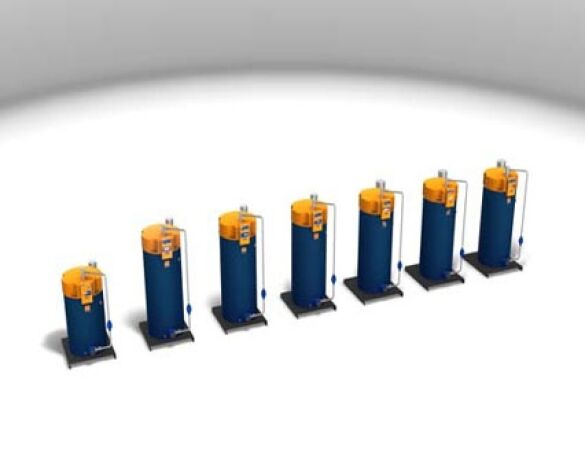

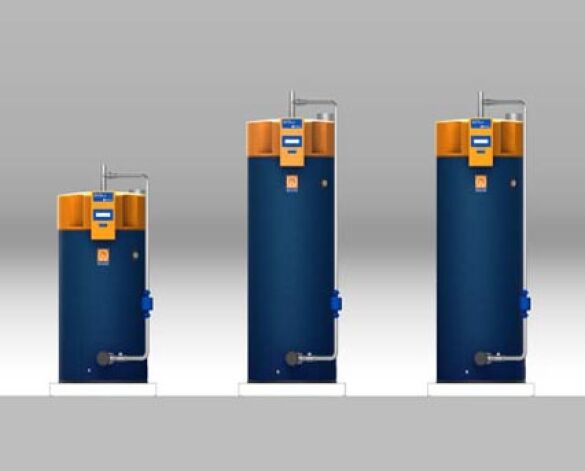

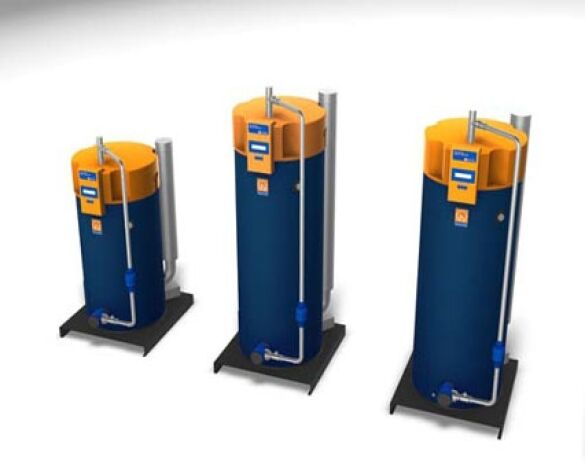

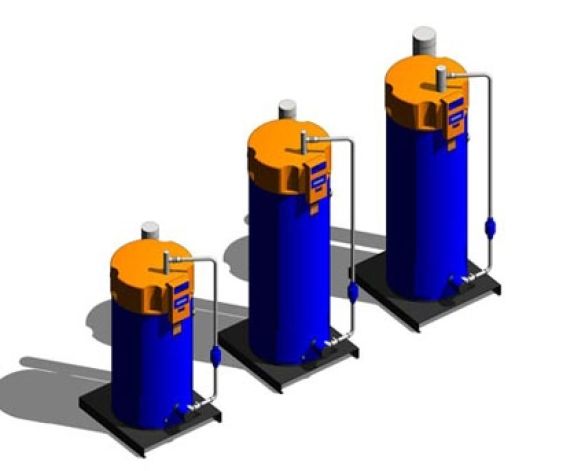

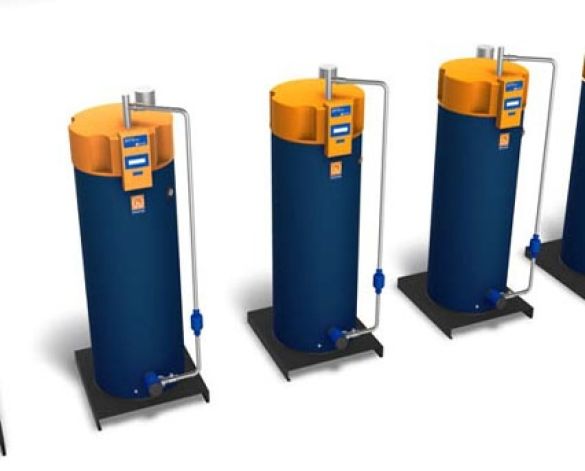

The DR-FC Evo range consists of 7 models with continuous outputs from 596 to 2333 litres/hour, based on a 44°C temperature rise and storage capacities range from 227 to 504 litres. Two or more Dorchester water heaters can be installed where there is demand for larger loads.
Twin duct flue systems can extend to 100m overall length, whilst concentric flues can run up to an impressive 40m in length, meaning, the Dorchester DR-FC Evo can be sited almost anywhere in the building.

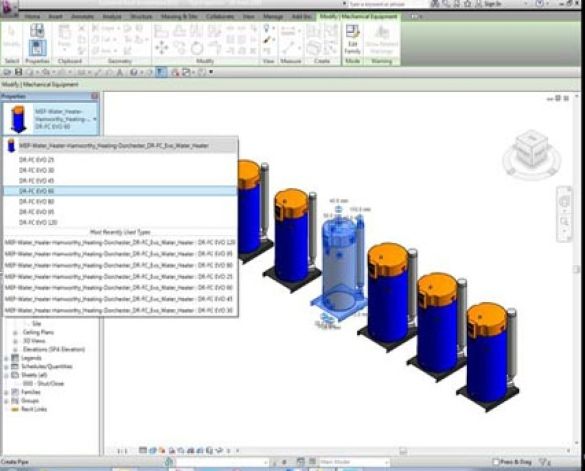

This download includes all 7 Dorchester DR-FC Evo Water Heater Models
rev 3 - March 2016 - update dimensions inline with revised product literature.
Read moreObject Data
3 Revision
Last Updated
19/04/2016
Available Software
BS1192:4
Compliant
BSB
Compliant
EPD
Not Available
Sustainability & Environmental Data
Not available.
Environmental Product Declarations
There are no EPDs.
You must log in to write a comment
Login or Join
Ermintrude Bimstore Cow on 29 June 2017
Daniel,
thank you for your comment, we will take a look into your comment relating to the connectors and update accordingly. Thanks for using bimstore.
Daniel Brook on 27 June 2017
Well detailed model with all data needed! just a couple of connectors facing the wrong way or set to the wrong system classification. Easy to change though.
