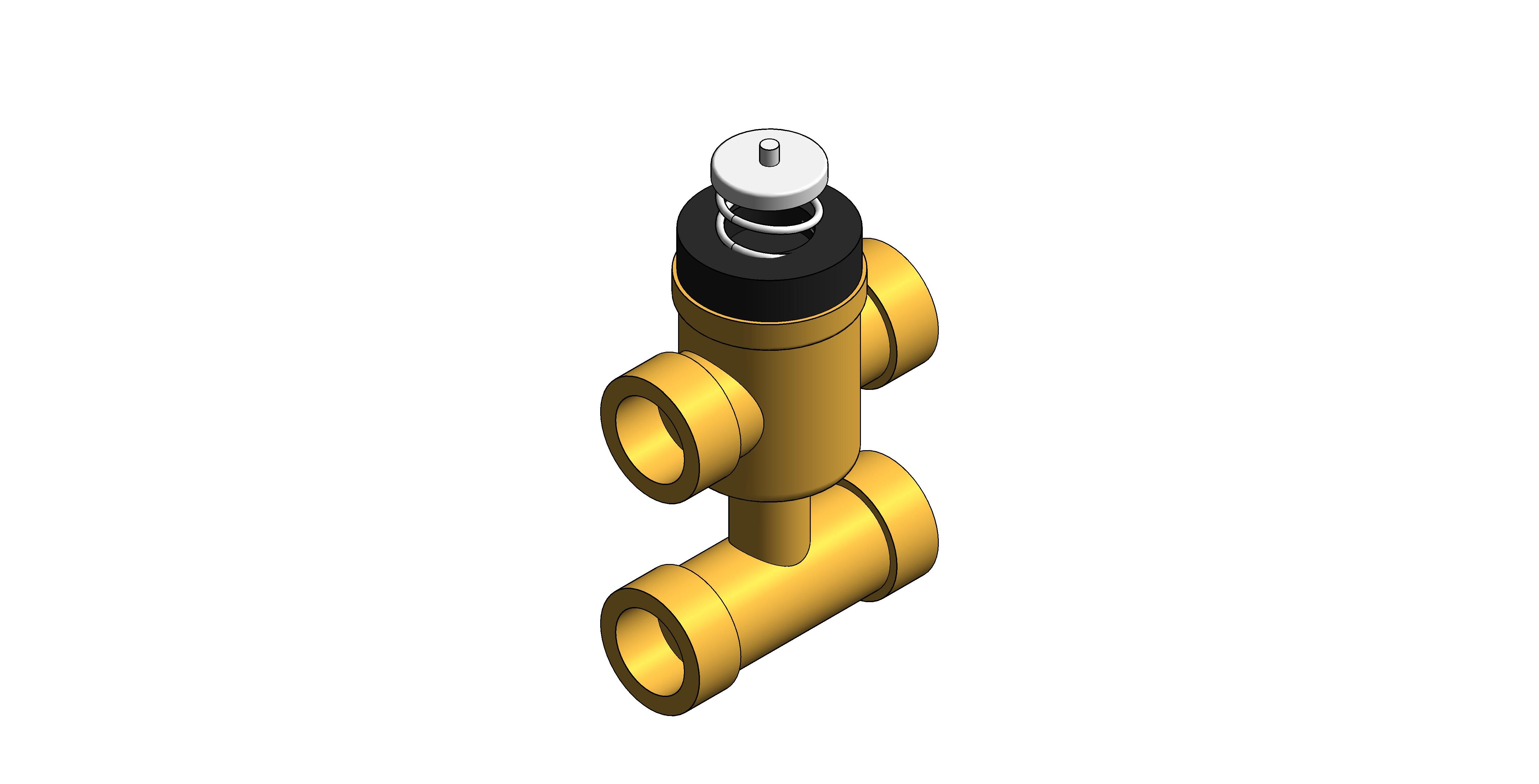

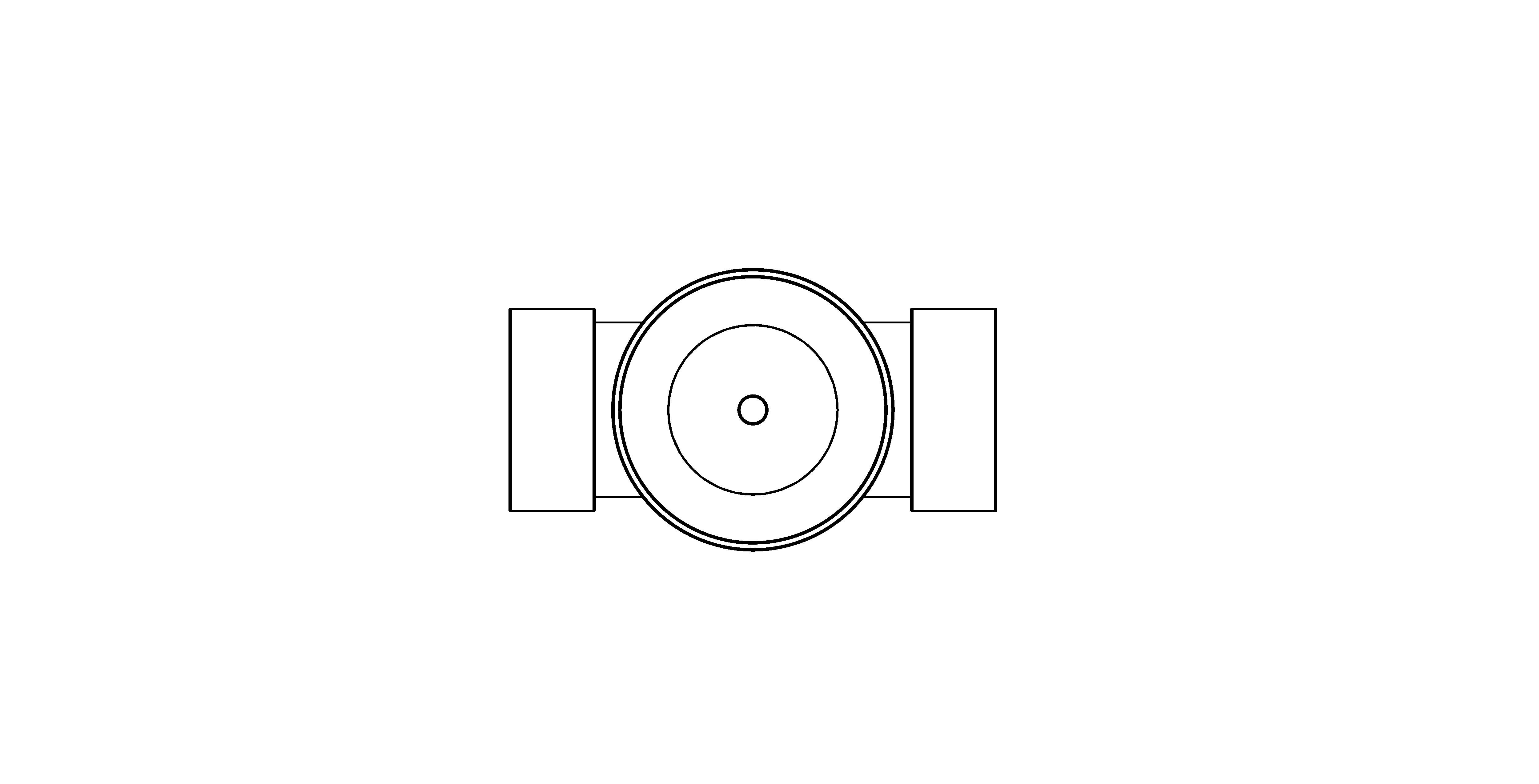

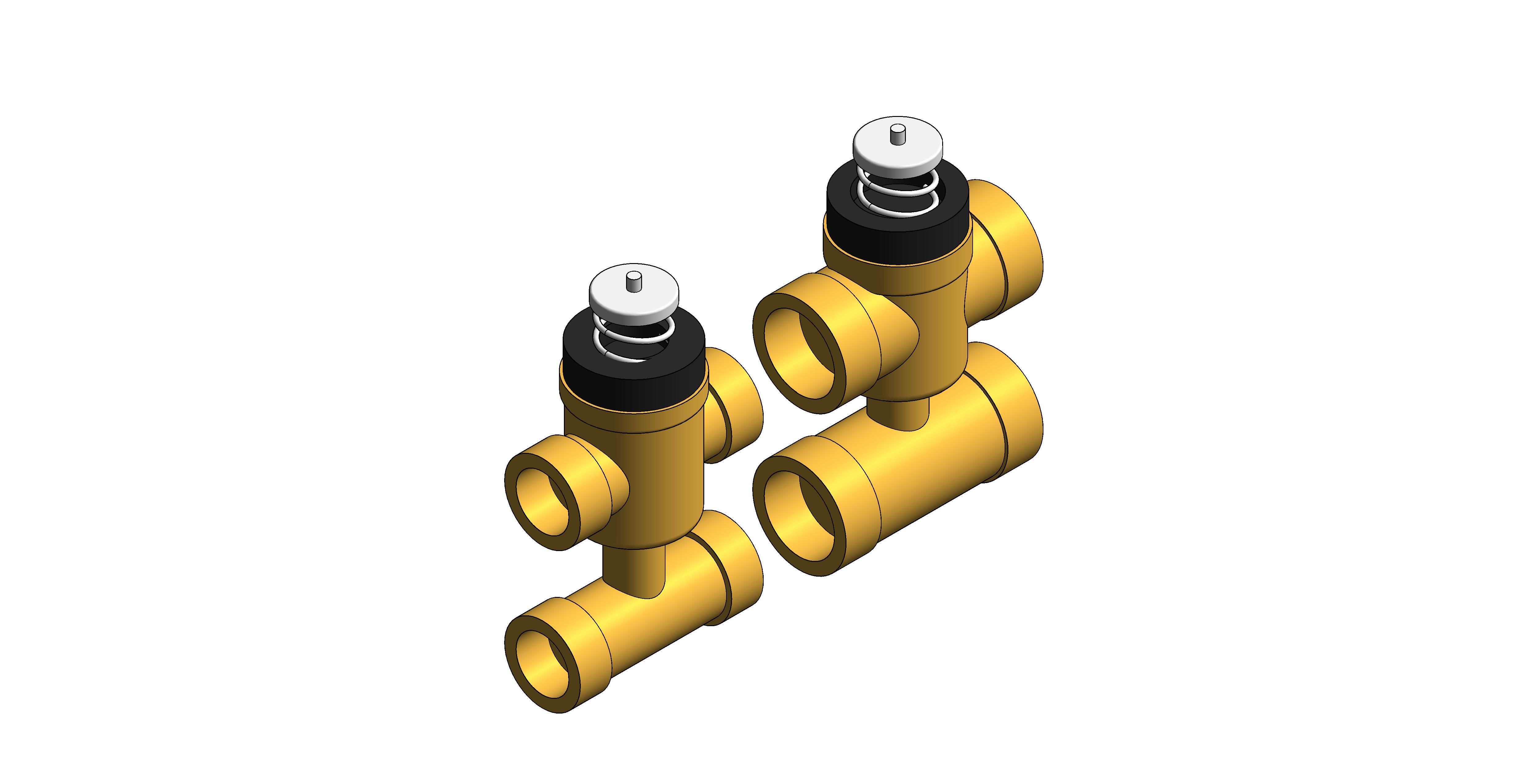

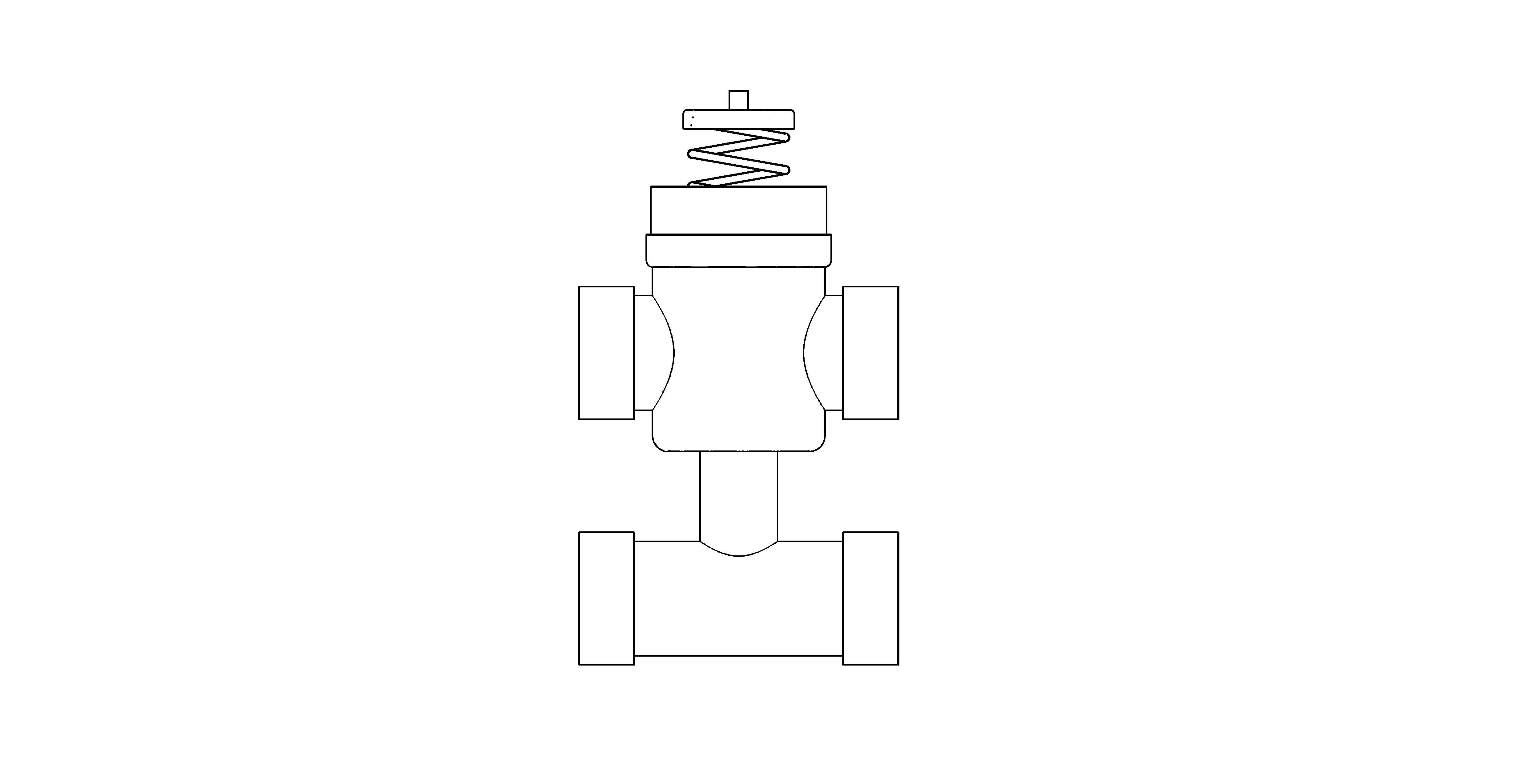

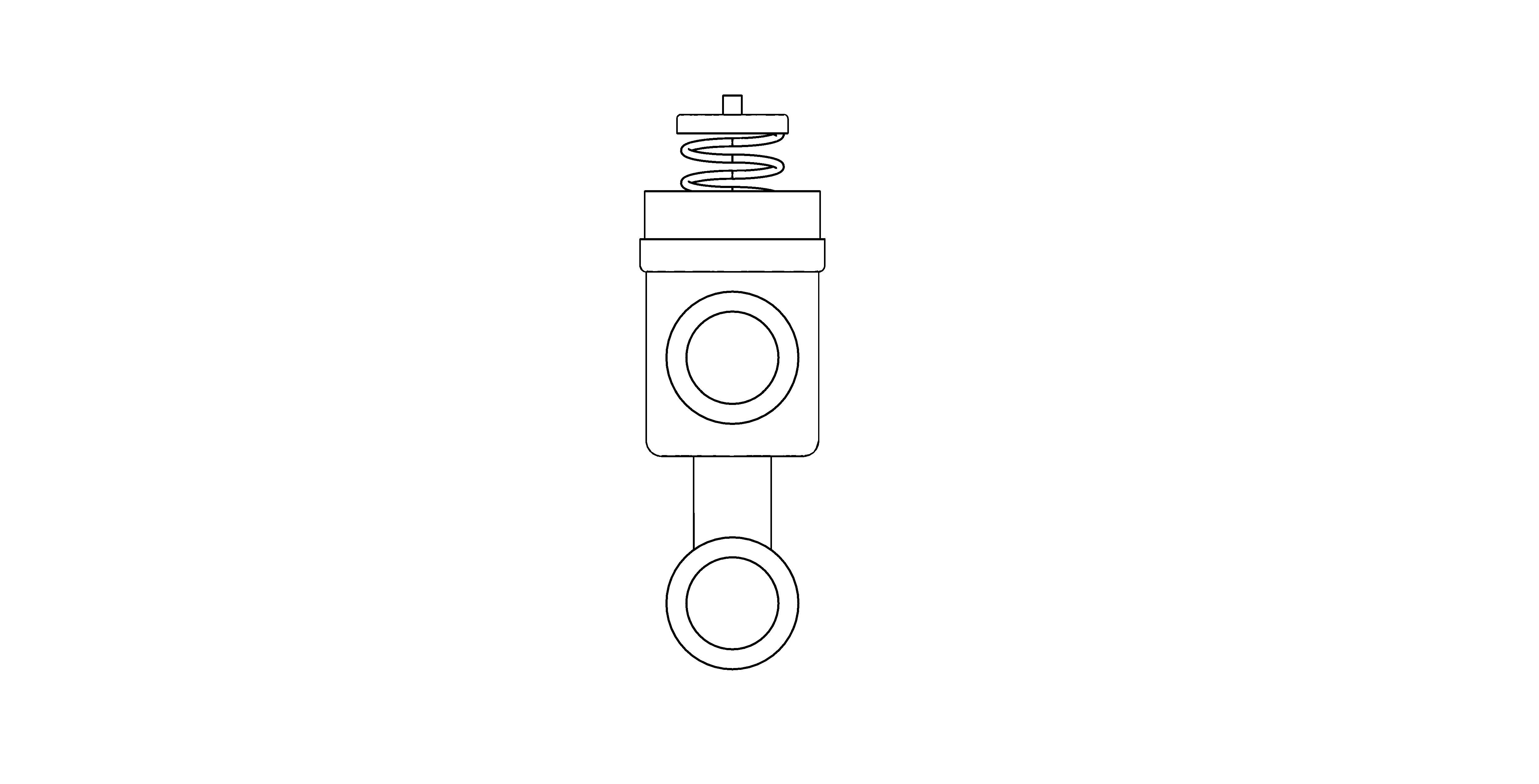

D104B - 4 Port Control Valve

by Crane Fluid Systems

Download Add to collection

Description

The D102B, D103B & D104B valves:

Can be used in variable volume heating and chilled water systems
Have an operating temperature: 5°C to 95°C
Have a maximum operating pressure of 16 bar
Have a stroke of 2.5mm
Are normally closed, i.e. the action of the valve spring makes the plug move to the upper seat
Achieve class IV leakage to 225kPa
Are compatible with ACT995M and ACT992TH
Are not compatible with ACT991TH
Are not suitable for end of line service

Features & Benefits

Offers zone, terminal bypass and end of line applications
Simple integration into the BMS using the Crane FS Modulating (ACT991M), 3 Point (ACT991TP) and Thermic (ACT992TH 140N) actuators
Easy mounting to pipework or terminal units in confined spaces due to the compact and lightweight design
Isolation function with Class IV leakage up to 225kPa
PN16 rated product, suitable for building services applications and services with up to 30% Glycol

Object Data

1 Revision

Last Updated

23/08/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

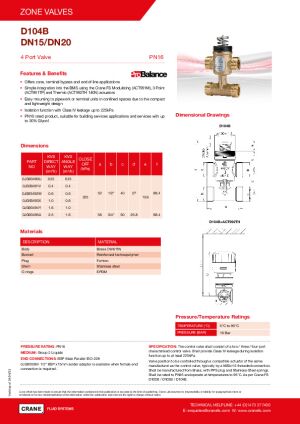

Product Literature

Maintenance Information

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/d104b-4-port-control-valve/document/object-user-guide
a8.99 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b1.48 mm
BIM Object NameCraneFS_FourPortControlValve_D104B
BodyBrass CW617N
BonnetReinforced technopolymer
c19.30 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_15
Close Off225kPa
Code Performancen/a
Colorn/a
Connection Radius7.50 mm
Connection Size15.00 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2023-08-21 T:09:00:00
d16.00 mm
Default Elevation0.00 mm
DescriptionThe D102B, D103B & D104B valves: • Can be used in variable volume heating and chilled water systems • Have an operating temperature: 5°C to 95°C • Have a maximum operating pressure of 16 bar • Have a stroke of 2.5mm • Are normally closed, i.e. the action of the valve spring makes the plug move to the upper seat • Achieve class IV leakage to 225kPa • Are compatible with ACT995M and ACT992TH • Are not compatible with ACT991TH • Are not suitable for end of line service
Documentation Certificateswww.bimstore.co/products/d104b-4-port-control-valve/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/d104b-4-port-control-valve/document/installation-guide
Documentation Literaturewww.bimstore.co/products/d104b-4-port-control-valve/document/product-literature
Documentation Maintenancewww.bimstore.co/products/d104b-4-port-control-valve/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/d104b-4-port-control-valve/document/technical-data-sheet
Duration UnitYear
End ConnectionBSP Male Parallel ISO-228. 0JG93556V 1/2" BSP x 15mm solder adaptor is available when female end connection is required.
Expected Life0
f27.10 mm
Features• Offers zone, terminal bypass and end of line applications • Simple integration into the BMS using the Crane FS Modulating (ACT991M), 3 Point (ACT991TP) and Thermic (ACT992TH 140N) actuators • Easy mounting to pipework or terminal units in confined spaces due to the compact and lightweight design • Isolation function with Class IV leakage up to 225kPa • PN16 rated product, suitable for building services applications and services with up to 30% Glycol
Finishn/a
g36.55 mm
Graden/a
h14.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.MIXING
KeynoteS
Kvs Angle Way1.0 m3/h
Kvs Direct Way1.6 m3/h
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
MediumGroup 2 Liquids
ModelD104B
Model NumberD104B
Model Reference4 Port Control Valve
NBS DescriptionCopper alloy gate valves
NBS Noten/a
NBS Object NameCrane FS - Copper alloy gate valves
NBS Office Master Tagn/a
NBS Reference90-10-90/342
Nominal Depth30.00 mm
Nominal Height94.00 mm
Nominal Length52.00 mm
O-RingEPDM
PlugFortron
Pressure16.0 bar
Pressure RatingPN16
Production Year2023
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1/2"
Spare Parts0JG93556V 1/2” BSP x 15mm flat faced solder adaptor with washers. Item is available for when female end connection is required. For the supply of genuine Crane spares or technical assistance please contact us on 0845 604 1790.
Specification NotesThe control valve shall consist of a two / three / four-port characterised control valve. Shall provide Class IV leakage during isolation function up to at least 225kPa. Valve position to be controlled through a compatible actuator of the same manufacturer as the control valve, typically by a M30x1.5 threaded connection. Shall be manufactured from Brass, with PPS plug and Stainless-Steel springs. Shall be rated to PN16 and operate at temperatures to 95°C. As per Crane FS D102B / D103B / D104B.
StemStainless steel
Temperature5°C to 95°C
Type Comments4 Port Control Valve
Type NameD104B
URLwww.cranefs.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partsenquiries@cranefs.com
