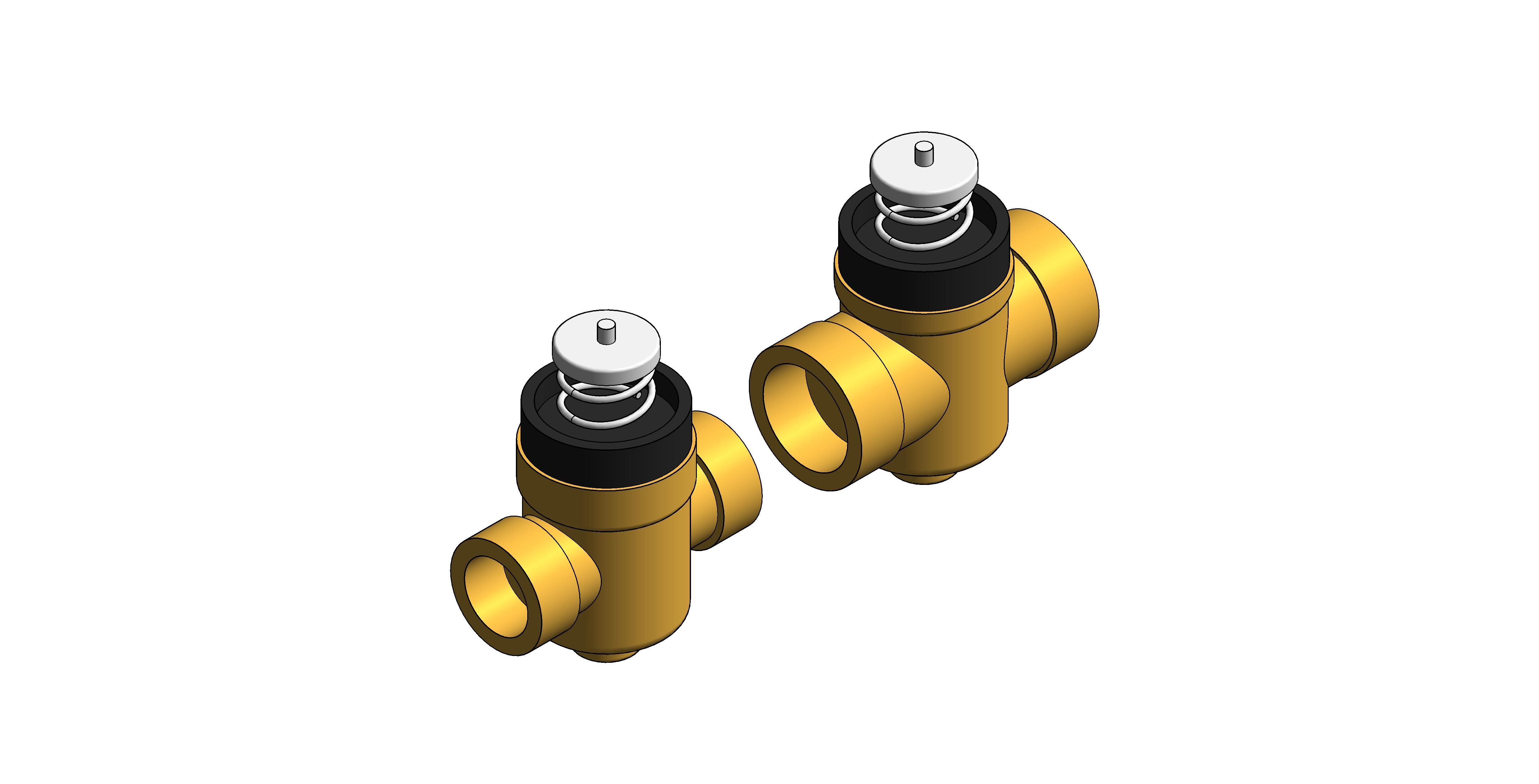

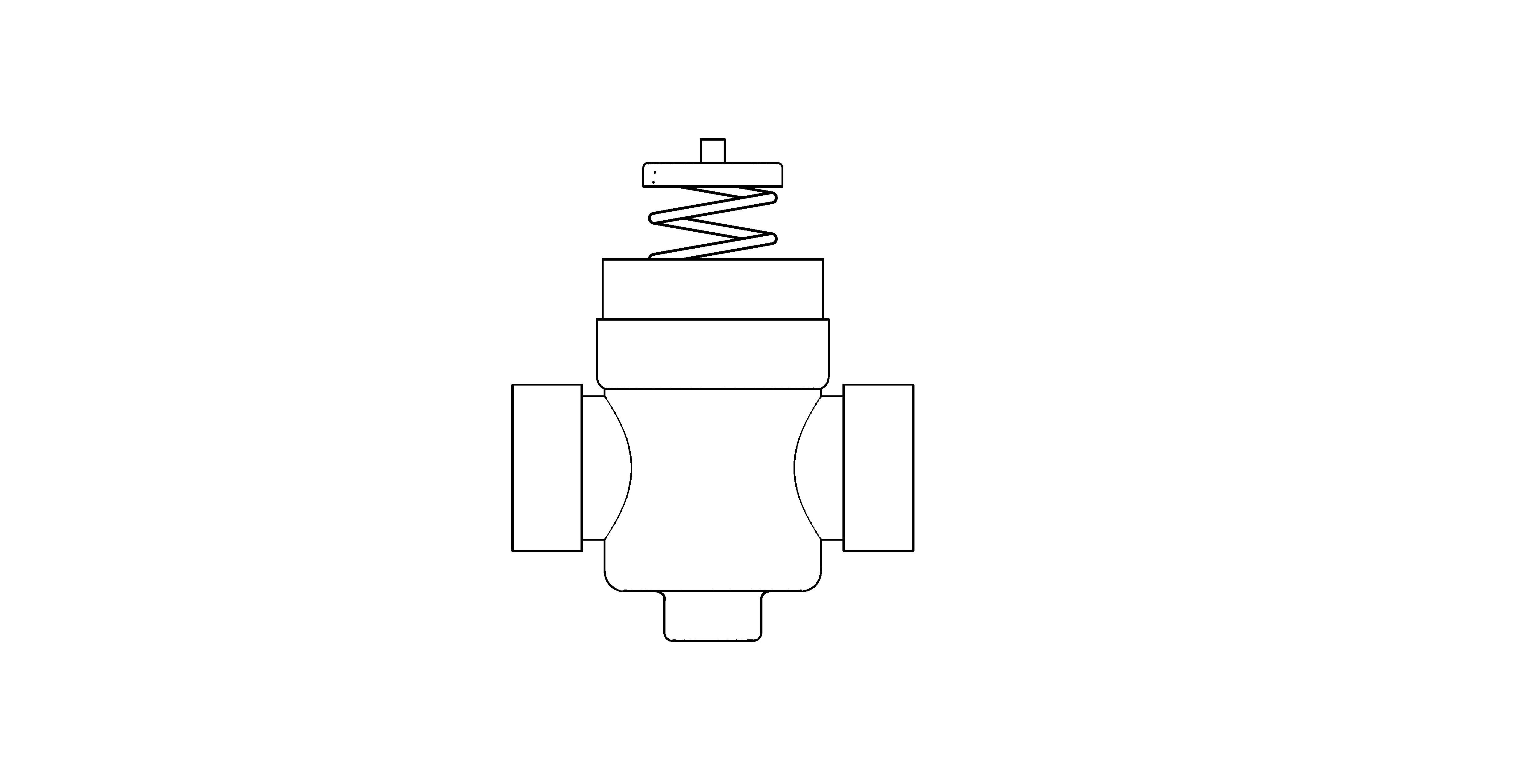

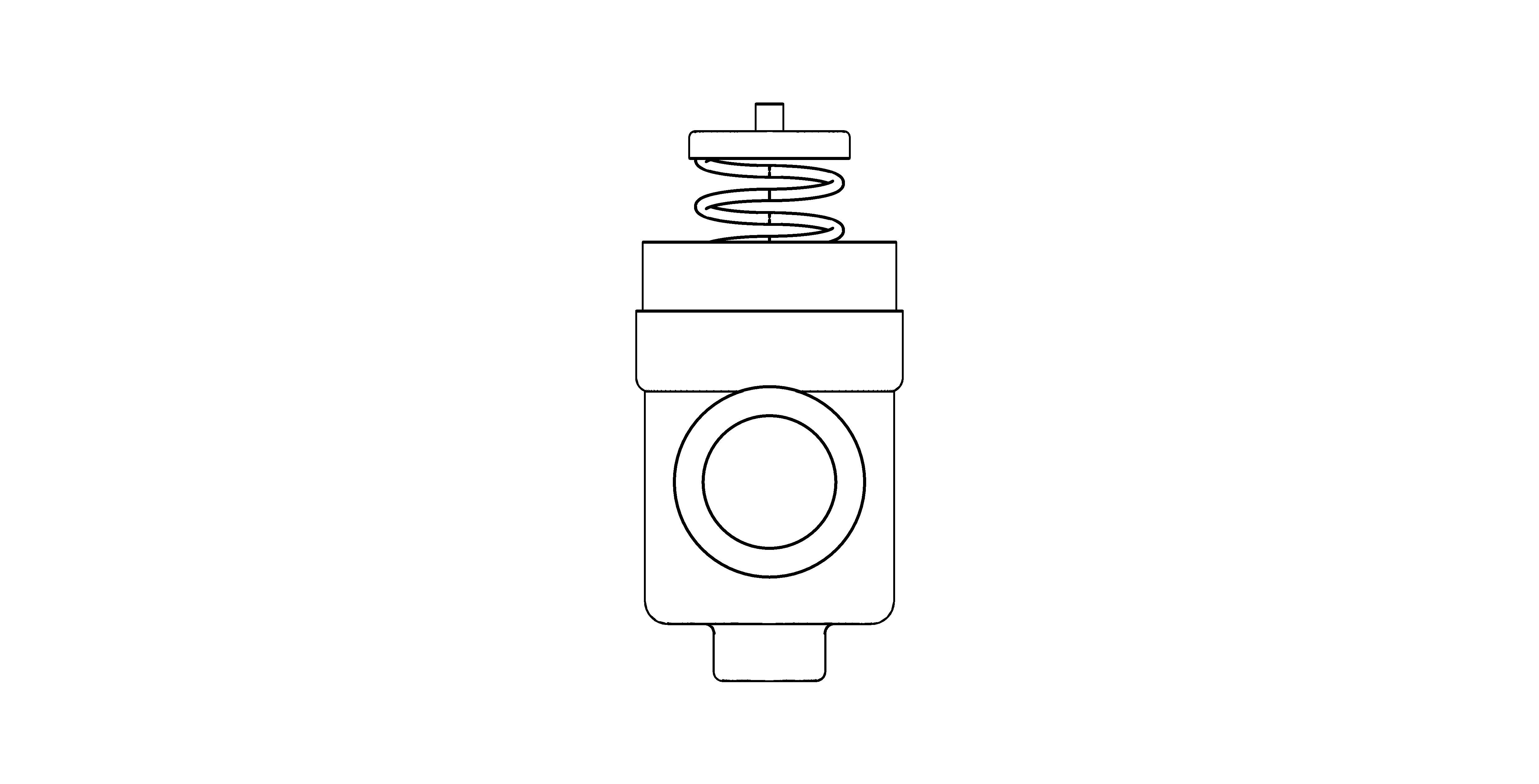

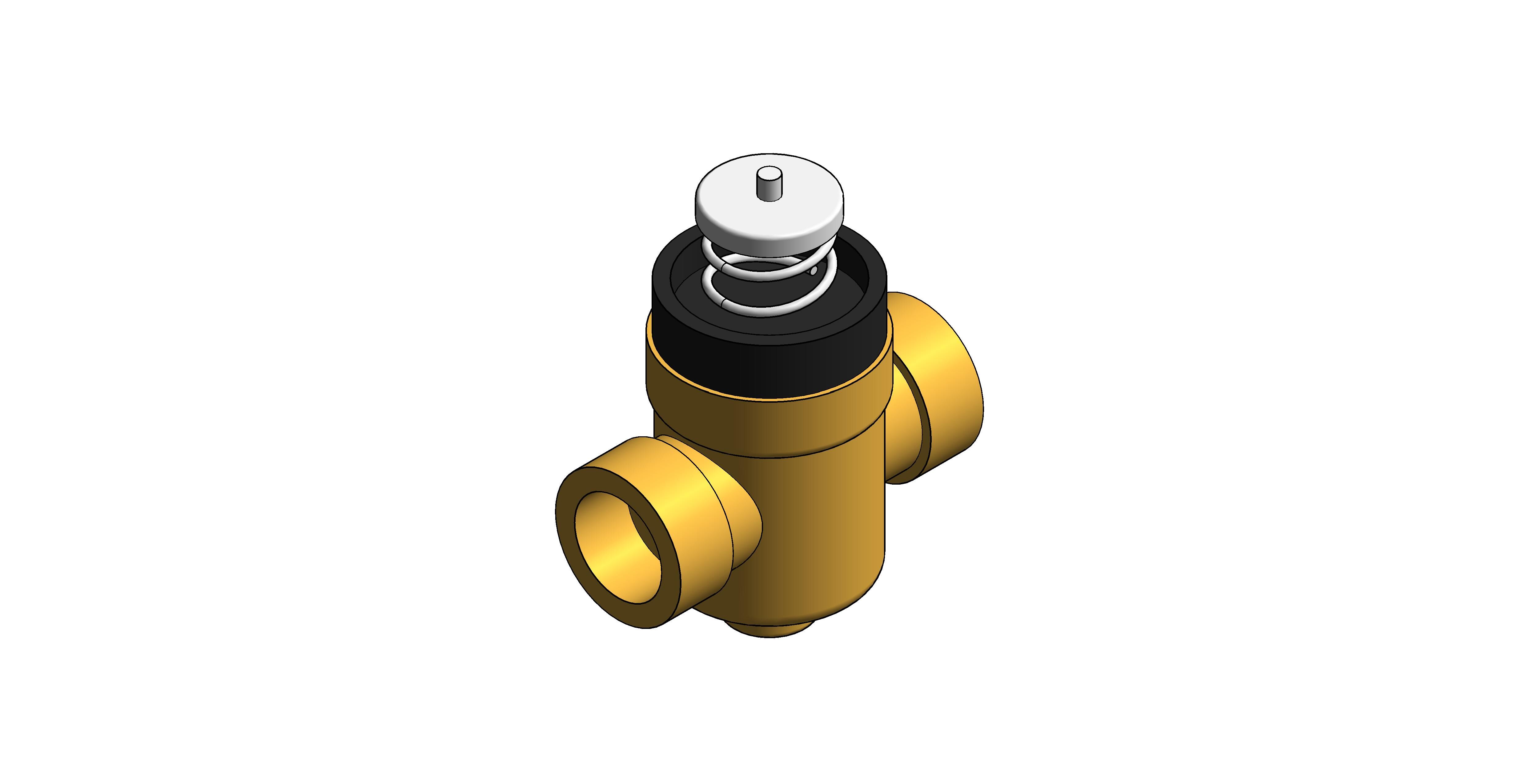

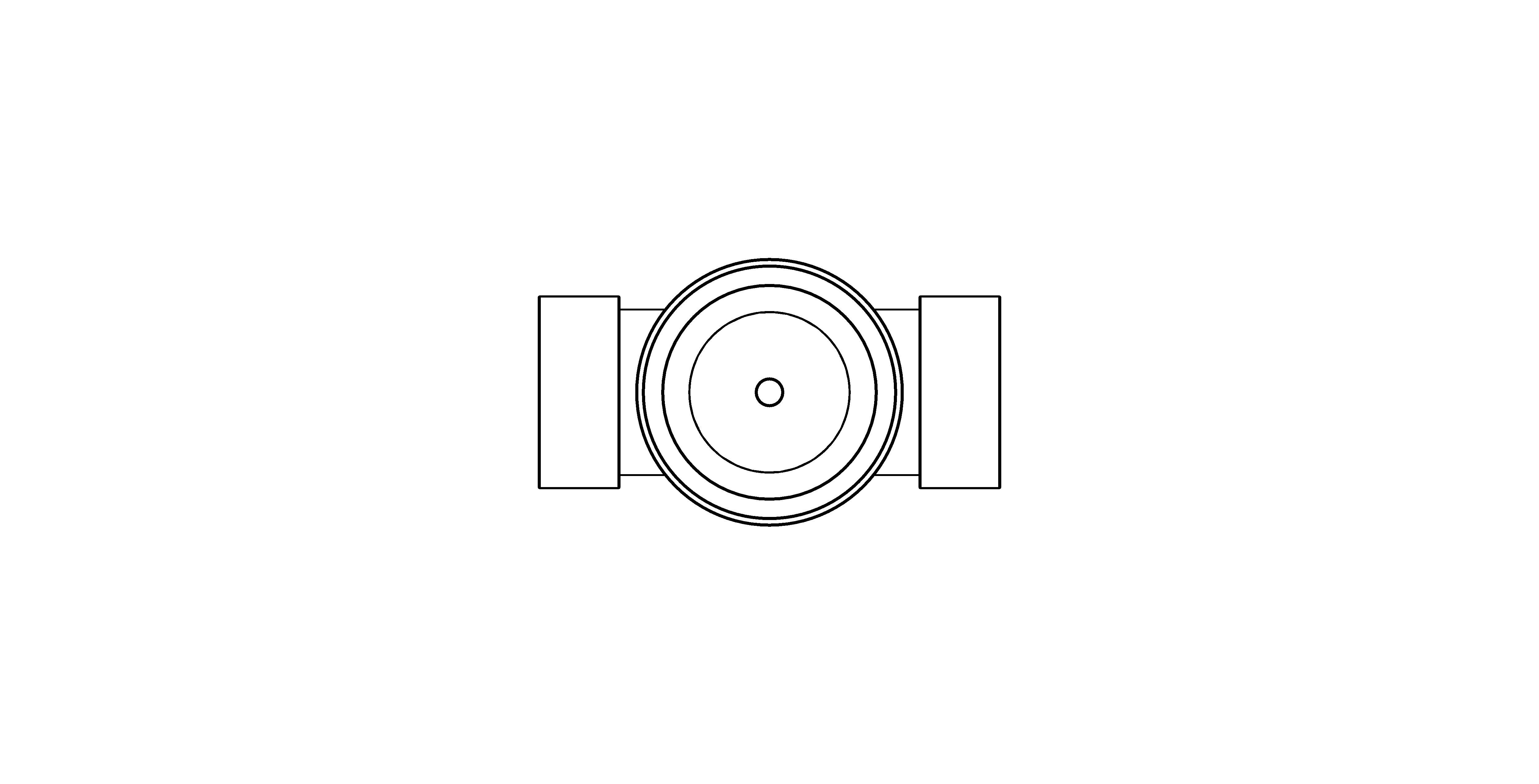

D102B - 2 Port Control Valve

Description

The D102B, D103B & D104B valves:

• Can be used in variable volume heating and chilled water systems
• Have an operating temperature: 5°C to 95°C
• Have a maximum operating pressure of 16 bar
• Have a stroke of 2.5mm
• Are normally closed, i.e. the action of the valve spring makes the plug move to the upper seat
• Achieve class IV leakage to 225kPa
• Are compatible with ACT995M and ACT992TH
• Are not compatible with ACT991TH
• Are not suitable for end of line service

Features & Benefits

• Offers zone, terminal bypass and end of line applications
• Simple integration into the BMS using the Crane FS Modulating (ACT991M), 3 Point (ACT991TP) and Thermic (ACT992TH 140N) actuators
• Easy mounting to pipework or terminal units in confined spaces due to the compact and lightweight design
• Isolation function with Class IV leakage up to 225kPa
• PN16 rated product, suitable for building services applications and services with up to 30% Glycol
