D-POT

by VEXO International

Download Add to collection

Description

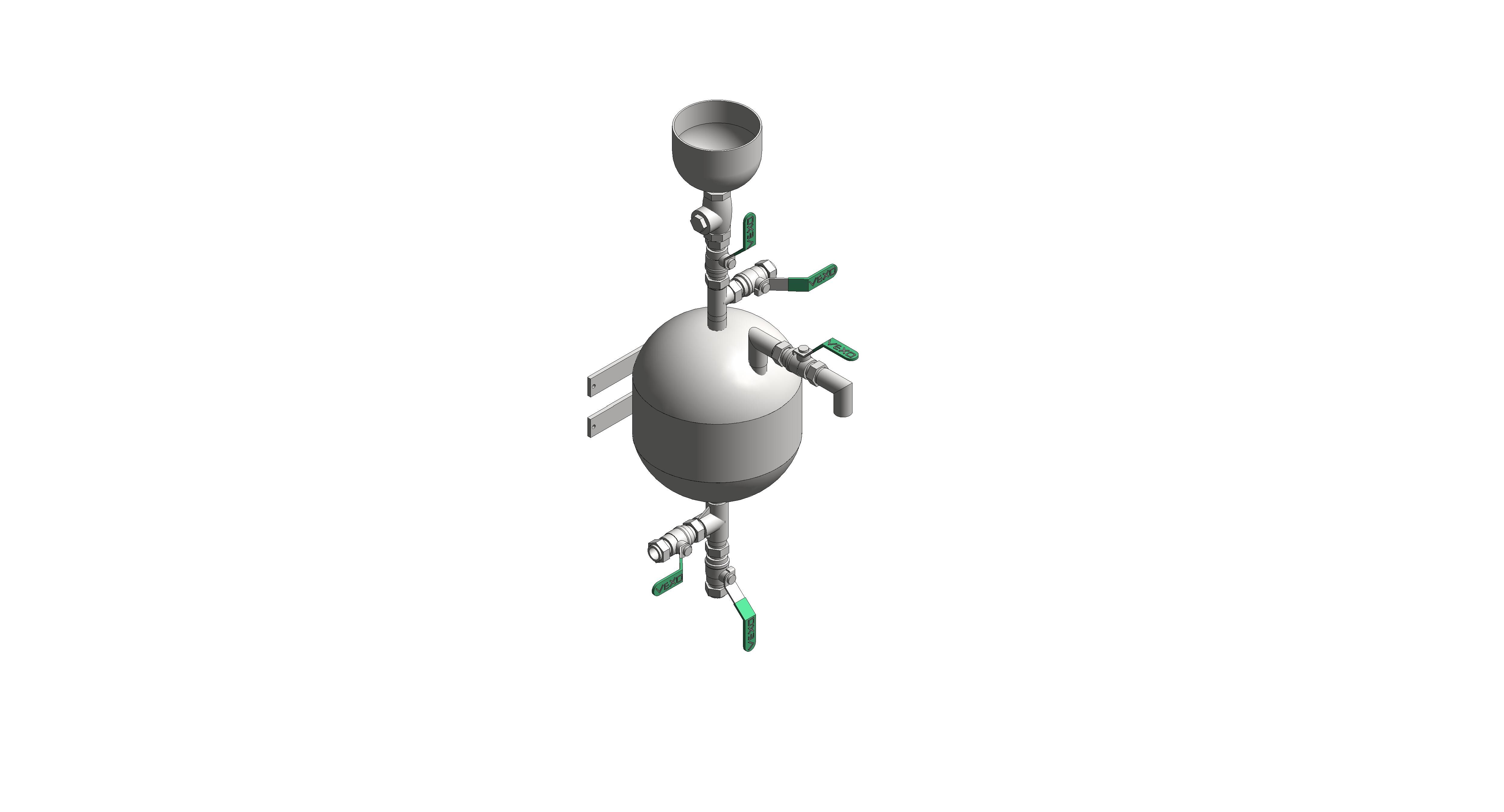

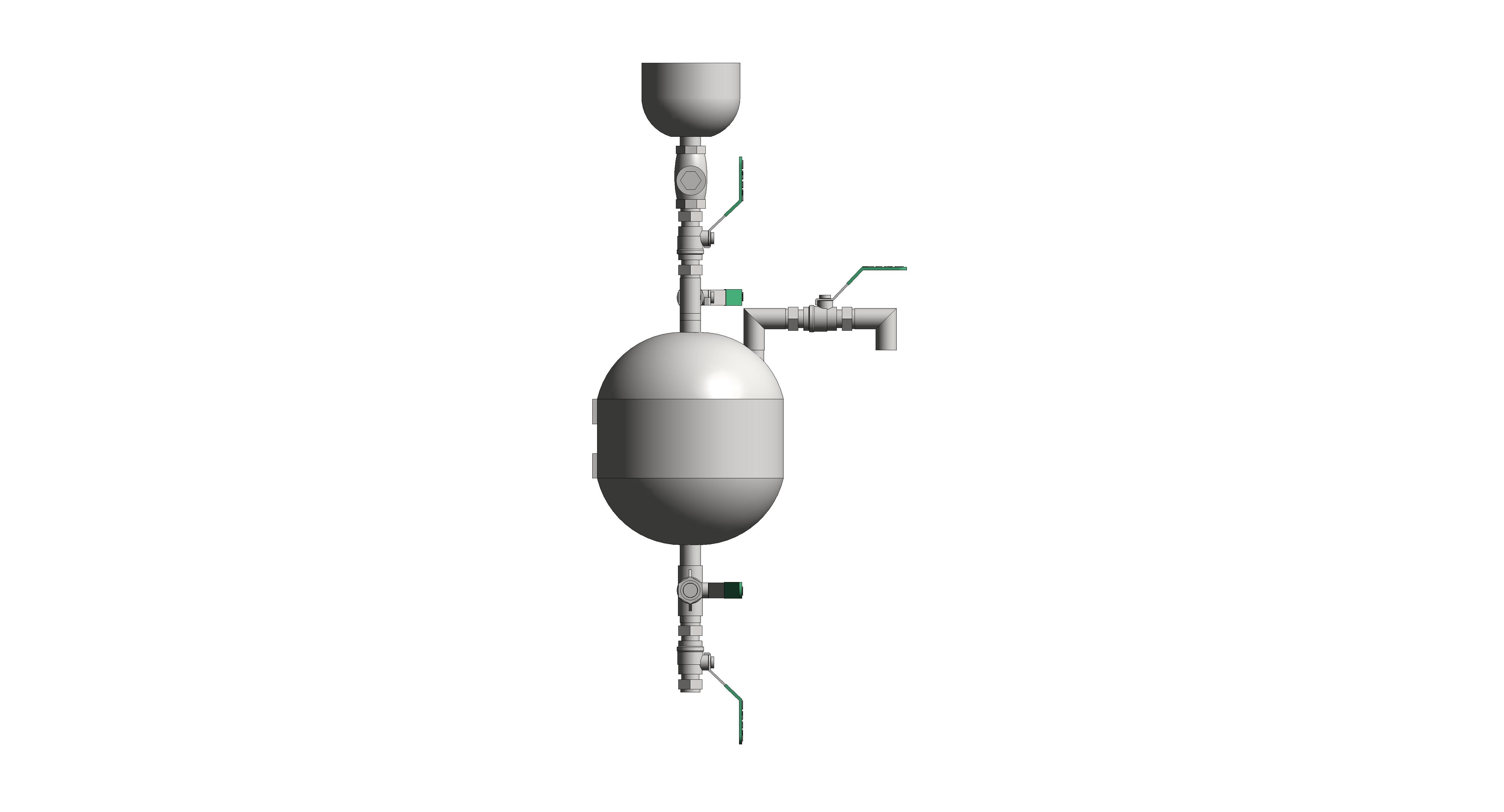

The VEXO D-POT provides a quality, durable and cost effective stainless steel vessel with innovative fatigue resistant curved design which can be installed in a left or right handed configuration and is fully compliant with the latest BSRIA BG50/2013 recommendations to avoid dead-legs.

Object Data

1 Revision

Last Updated

09/11/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

BS8541-2

Compliant

EPD

Not Available

Accompanying literature

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorCH
_Authorized ByVexo Int
_Bim Spec Guid0
_BS Bible Version16
_Created ByVexo Int
_Current Revision1
_Distributed ByVexo Int
A250 mm
Accessibility Performancen/a
ApplicationStainless Steel Dosing Pot
Assembly CodeD20
AssetIdentifier (default)Please record on commissioning
Asset TypeFixed
B115 mm
BarCode (default)Please record on commissioning
BIM Object NameVexo_PipeAccessories_D-Pot11L
Body Finish250 mm
Body Start0 mm
Bracket Depth120 mm
Bracket Offset R/L125 mm
Bracket OIffset225 mm
Bracket Rear Offset115 mm
C210 mm
Classification NameUniclass2015
Classification ValuePr_75_51_17_78
Code Performancen/a
ColorGrey & Green
Constituentsn/a
Created ByCain Harbut
Created Onwww.vexoint.com/
Default Elevation1200 mm
DescriptionD-Pot Stainless Steel Dosing Pot
Documentation Certificateswww.vexoint.com/
Documentation Installation Guidewww.vexoint.com/
Documentation Maintenancewww.vexoint.com/
Documentation Technicalwww.bimstore.co/products/d-pot-1/document/technical-data-sheet
Dome Height68 mm
Dosing Capacity11L
Drain Cock Position85 mm
Duration Unitn/a
E68 mm
Expected Lifen/a
Featuresn/a
Filter Body MountingWall or Floor Standing (Unistrut)
FinishStainless Steel
FittingsStainless Steel
General DescriptionThe VEXO D-POT provides a quality, durable and cost effective stainless steel vessel with innovative fatigue resistant curved design which can be installed in a left or right handed configuration and is fully compliant with the latest BSRIA BG50/2013 recommendations to avoid dead-legs.
Graden/a
IFC Export AsN/A
IFC Export TypeN/A
Installation InformationD-POTs are designed to be installed internally within a building and to avoid risk of freezing and component damage. If installing externally the D-POT should be mounted within a weatherproof enclosure and insulated to avoid freezing otherwise the warranty will be voided
InstallationDate (default)Please record on commissioning
Isolation Valve Connections1/2” BSP Female
Isolation ValvesStainless Steel
KeynoteS                                          
ManufacturerVexo Int
Manufacturer NameVexo Int
MaterialStainless Steel
Max Working Pressure10Bar
Max Working Temperature120oC
ModelD-Pot Stainless Steel Dosing Pot
Model NumberD-Pot Stainless Steel Dosing Pot
Model ReferenceVDP-11L
NBS DescriptionStainless Steel Dosing Pot
NBS Object NameVexo Products - Stainless Steel Dosing Unit
NBS Office Master TagN/A
NBS ReferenceN/A
Nominal Depth292 mm
Nominal Height877 mm
Nominal Length250 mm
Nominal Width250 mm
Non Return ValveStainless Steel
Offset25 mm
Offset Left120 mm
Offset Right120 mm
Product CodeVDP-11
Production Year2020
Referenced Standardn/a
SerialNumber (default)Please record on commissioning
ShapeCylindrical
SizeN/A
Tundish Height275 mm
Type CommentsVDP-11L
Type NameVDP-11L
URLwww.vexoint.com/
Vessel BodyStainless Steel
Warranty Description5 Years Standard (6 Years if VEXOTM X-PO10 Inhibitor is used)
Warranty Duration Laborn/a
Warranty Duration Parts5 Years Standard (6 Years if VEXOTM X-PO10 Inhibitor is used)
Warranty Duration Unit5 (6 Years if VEXOTM X-PO10 Inhibitor is used)
Warranty Guarantor Partsn/a
WarrantyStartDate (default)Please record on commissioning
Weight (Full)20kg
X-PO10 Inhibitor 10LVX-XPO10-10LTR
X-PO20 De-Scaler 10LVX-XPO20-10LTR
X-PO35 Non-Flush Cleanser 10LVX-XPO35-10LTR
X-PO40 De-Sludger 10LVX-XPO40-10LTR
X-PO45 New System 10LVX-XPO45-10LTR
X-PO50 Anti-Freeze 20LVX-XPO50-20LTR
X-PO55 Anti-Freeze 20LVX-XPO55-20LTR
X-PO80 Biocide 5LVX-XPO80-5LTR
