Centre Pivot Quad-Lite - QL

by Keylite Roof Windows

Download Add to collection

Description

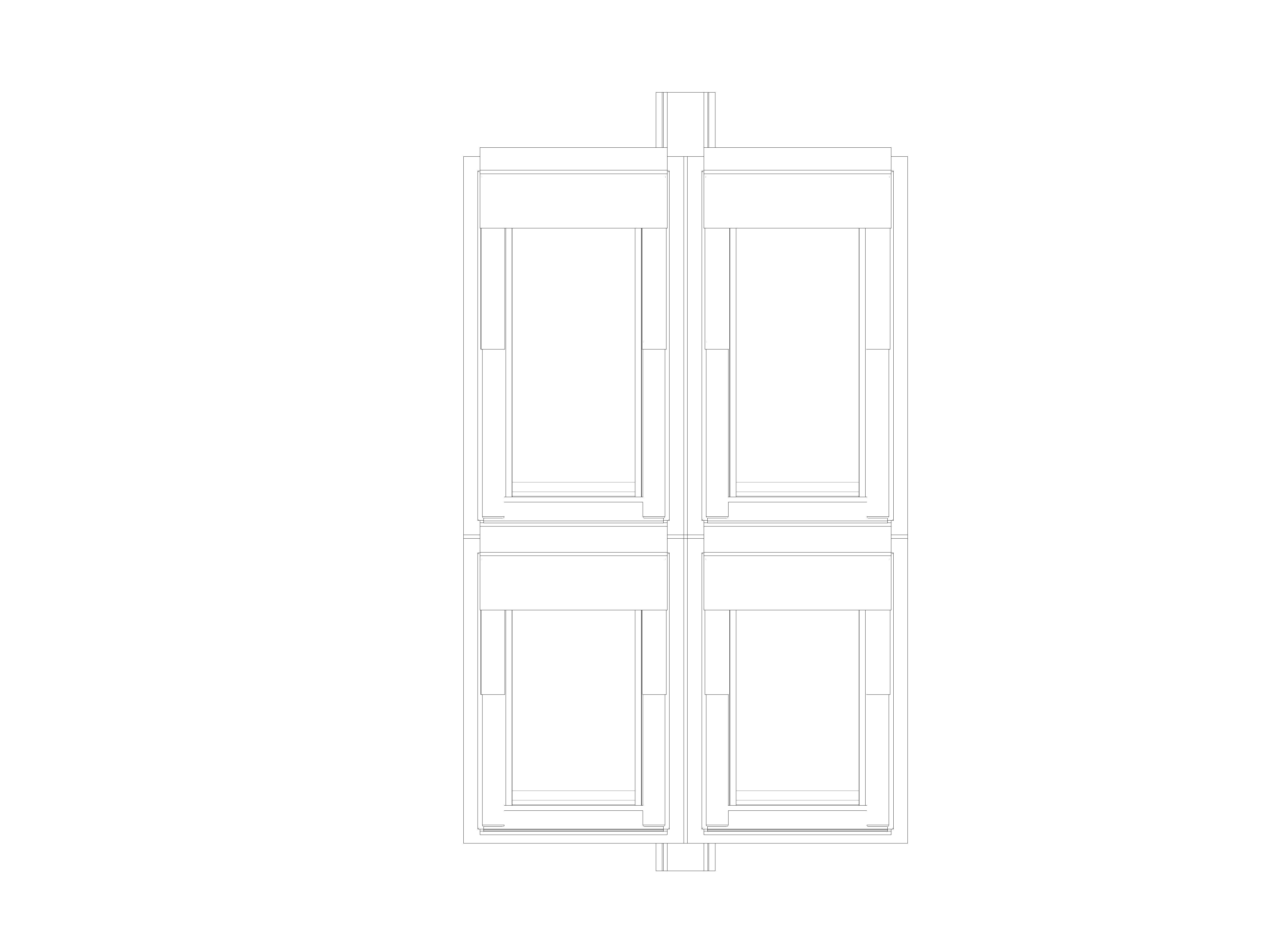

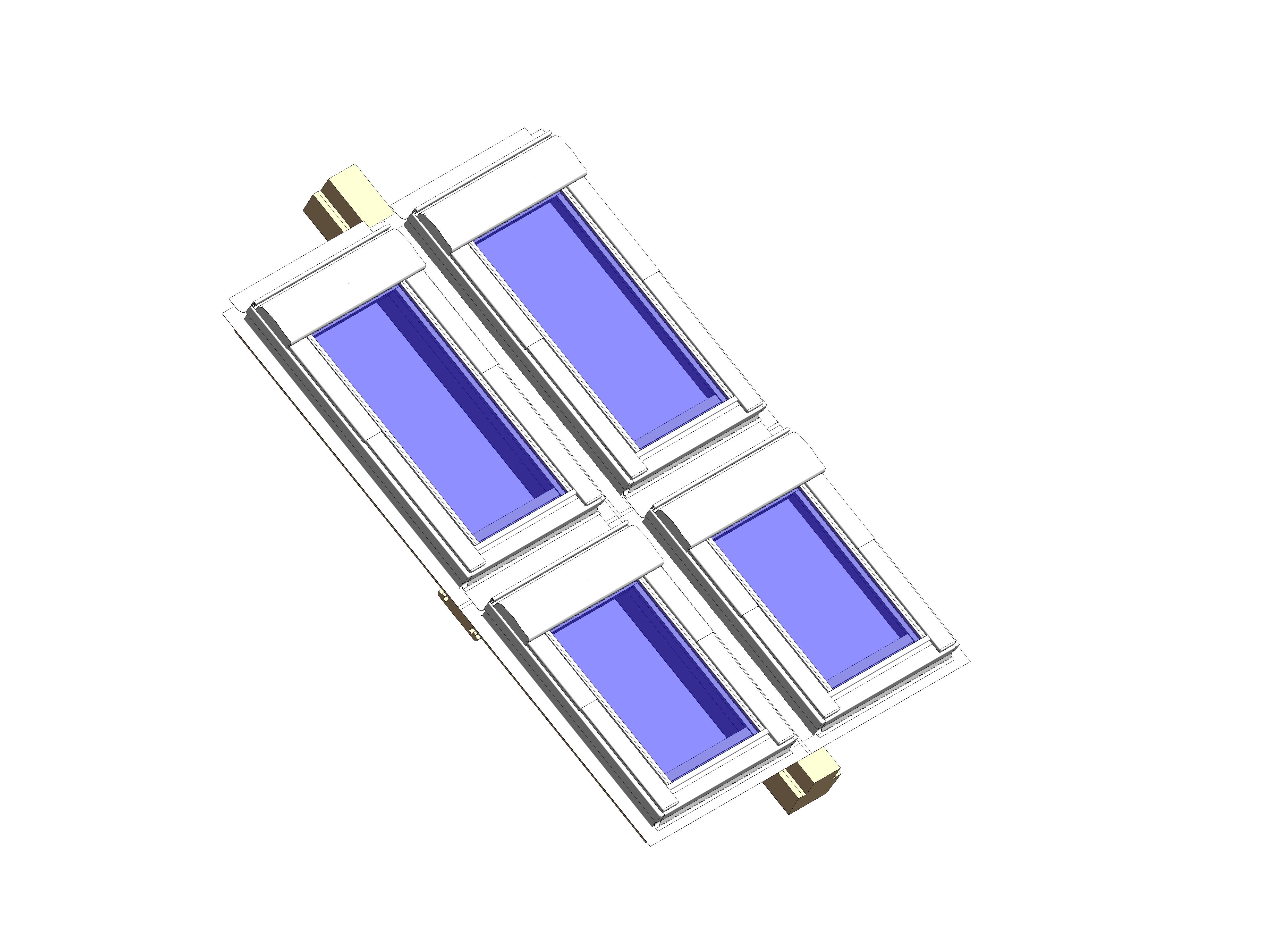

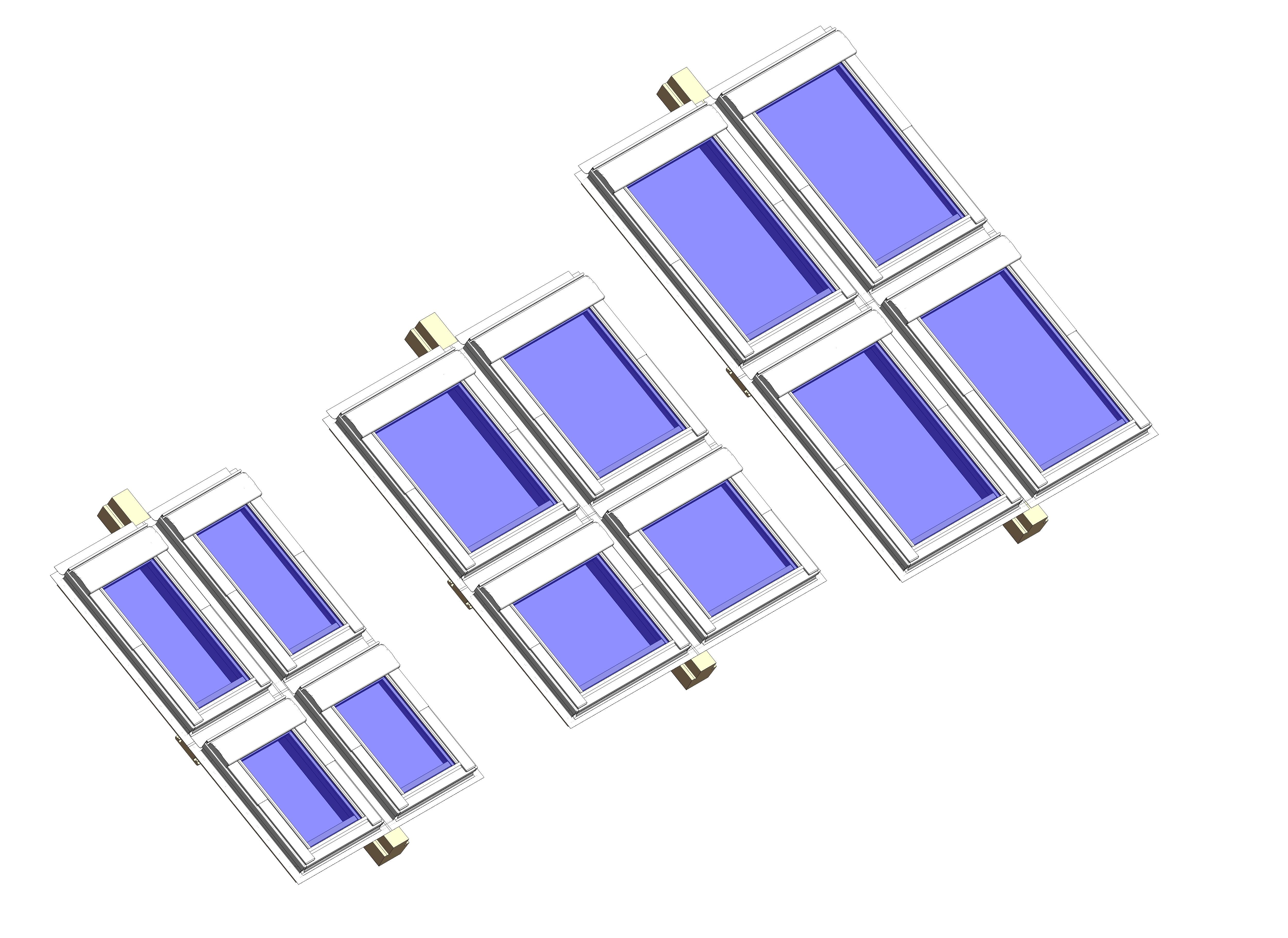

The Keylite range of Combination Flashing Systems allows any of the standard Keylite Roof Windows to be installed in vertical, horizontal or group blocks. This system see’s four windows placed in a grid formation with a minimum distance of 100mm between the windows on both the horizontal and vertical planes.

Click here to visit Keylite Roof Windows for more information.

Object Data

2 Revision

Last Updated

18/03/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

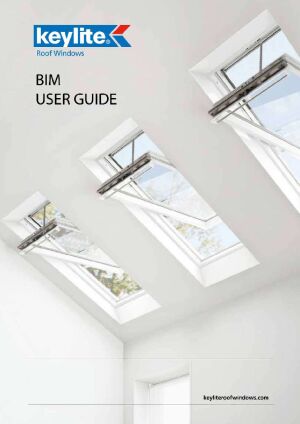

Object User Guide

Technical Data Sheet

Product Data Sheet

Object metadata

_Authorinfo@keyliteuk.com
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Byinfo@keyliteuk.com
_Current Revision73
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/centre-pivot-quad-lite/document/object-user-guide
2D Detailwww.keyliteroofwindows.com/architects/cad-drawings/
Accessibility Performancen/a
Acoustic Performance32
Air PermeabilityClass 3
Analytic Construction<None>
Assembly CodeB3020100
Asset TypeFixed
BIM Object NameKeylite_Window_CentrePivotQuadLite
Classification NameUniclass2015
Classification ValuePr_30_59_98_97
Code Performancen/a
Colorn/a
Constituentsn/a
Created Byinfo@keylite.co.uk
Created On03-08-2020T09:00:00
Define Thermal Properties bySchematic Type
DescriptionMultiple windows in grid formation
Documentation Certificateswww.bimstore.co/products/centre-pivot-quad-lite/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/centre-pivot-quad-lite/document/installation-guide
Documentation Literaturewww.bimstore.co/products/centre-pivot-quad-lite/document/product-literature
Documentation Maintenancewww.bimstore.co/products/centre-pivot-quad-lite/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/centre-pivot-quad-lite/document/technical-data-sheet
Duration UnitYears
Expected Life0
FeaturesInterior: Laquered Pine Exterior: Powder Coated Aluminium
Finishn/a
Graden/a
Height1660 mm
Horisontal100 mm
Ifc Export AsIfcWindow
Ifc Export TypeIfcWindowTypeEnum.WINDOW
Impact ResistanceClass 2
Keylite AccessoriesAluminium
Keylite Construction WoodPine
Keylite Decoration TrimPine
Keylite External PartsAluminium
Keylite Internal PartsPine
Keylite Thermal CollarPine
KeynoteL10
Light Transmittance0.85
ManufacturerKeylite
Manufacturer NameKeylite
MaterialLaminate, Pine, Aluminum
ModelCentre Pivot Quad-Lite
Model NumberQL 01/100
Model ReferenceCentre Pivot Quad-Lite
NBS DescriptionWood frame roof window units
NBS Object NameKeylite - Wood frame roof window units
NBS Office Master Tagn/a
NBS Reference45-25-99/390
Nominal Depth1660 mm
Nominal Height0 mm
Nominal Length1200 mm
Offset From Roof0 mm
Picture Typehhttps://www.keyliteroofwindows.com/products/roof-windows/combination-window-options/
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Resistance To Snow Load4H-20, Ar-4TM
Resistance To Wind LoadClass C4
Rough Height1660 mm
Rough Width1200 mm
ShapeRectangle
Single Unit Height Bottom780 mm
Single Unit Height Bottom Calc780 mm
Single Unit Height Upper780 mm
Single Unit Height Upper Calc780 mm
Single Unit Width550 mm
Size1200(W) x 1660(H)
Solar Factor G0.65
Spare Partsn/a
Support Trim Bottom200 mm
Support Trim Top100 mm
Thermal Transmittance Of Glass1.1
Thermal Transmittance Of Window1.3
Type CommentsQL 01/100
Type NameQL 01/100
URLwww.keyliteroofwindows.com
Vertical100 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@keyliteuk.com
Warranty Guarantor Partsinfo@keylite.co.uk
Water TightnessE1050
Width1200 mm
