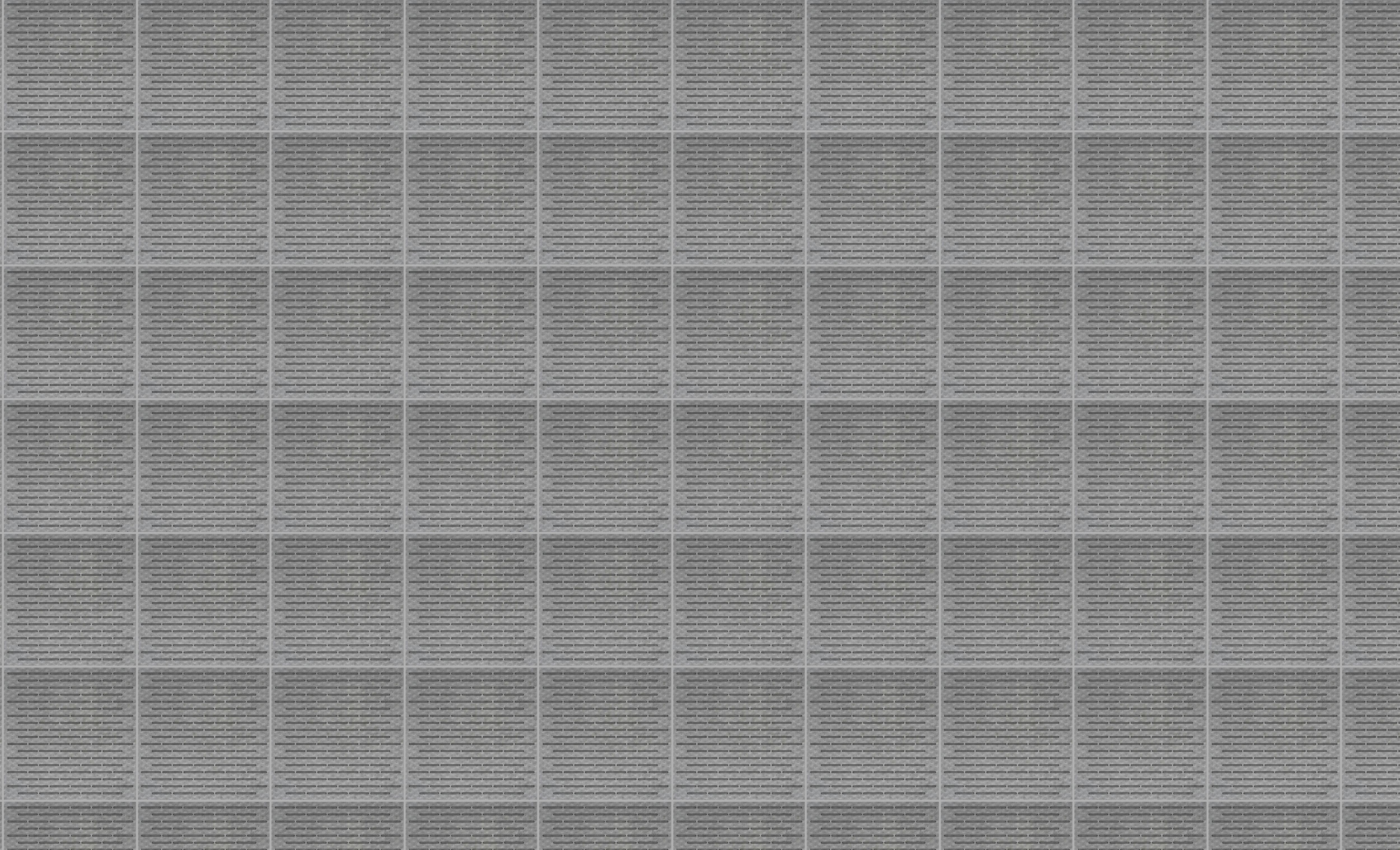

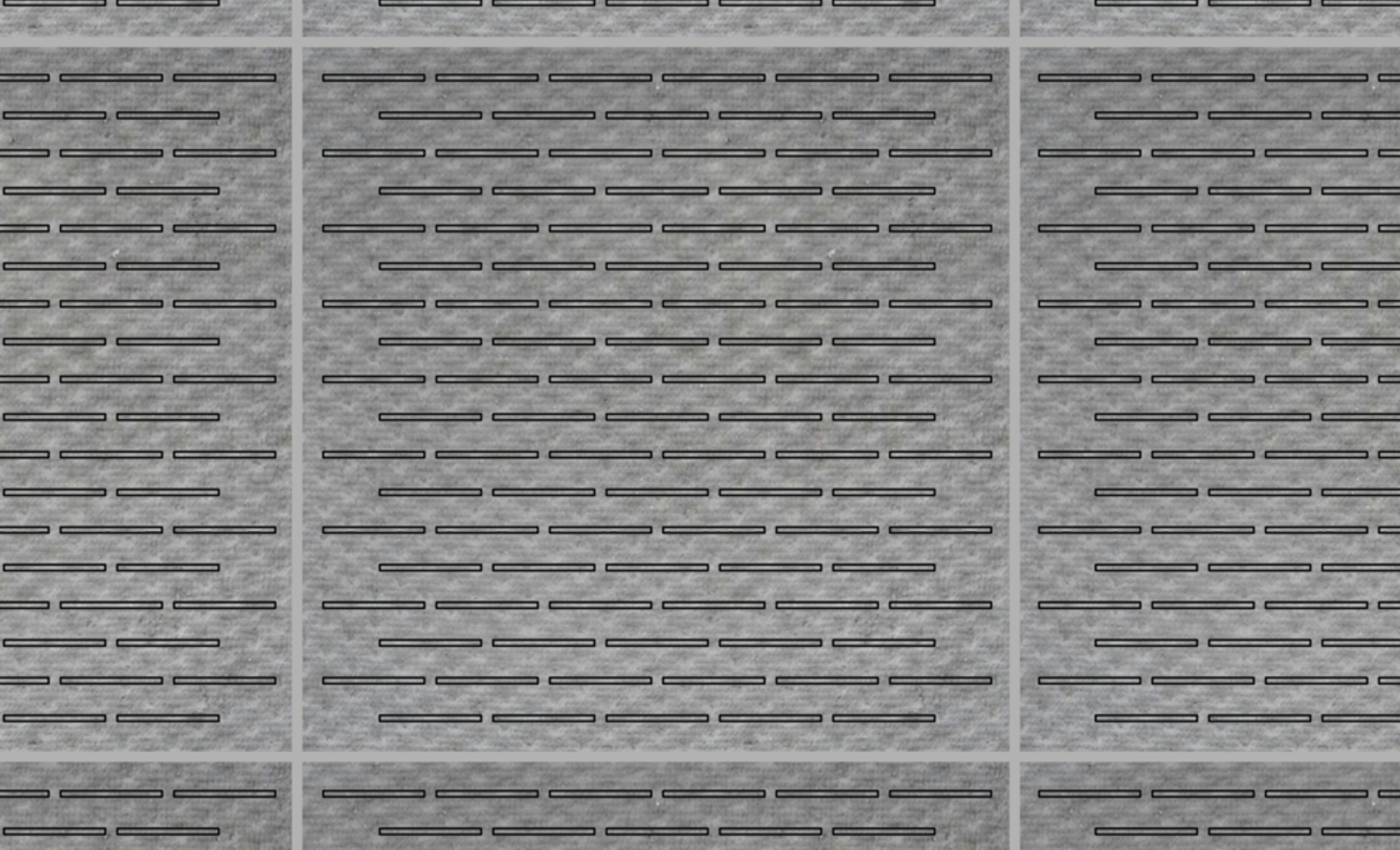

Barfaced Paving Precast Concrete Paving Blocks

by Brett Landscaping

Download Add to collection

Description

Designed specifically to meet the requirements of The Department for Transport publication ‘Guidance on the use of Tactile Paving Surfaces’, our Tactile Flag Paving range can be combined with our specialist kerb systems to offer integrated roadside approach and safety solutions, such as road crossings and passenger vehicle boarding points. Barfaced paving is British Standard compliant, skid-resistant paving.

Object Data

1 Revision

Last Updated

18/05/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Available

Accompanying literature

Object User Guide

Product Literature

Technical Data Sheet

Object metadata

Manufacturing StandardBS EN 1339: 2003
Product TypePrecast Concrete Paving Flags Incorporates 50mm Barfaced Tactile Paving Slabs
ApplicationCommercial use; in accordance with Department of the Environment, Transport & the Regions 'Guidance on the use of Tactile Paving Surfaces' April 2000. British Standard compliant, skid resistant paving.
StrengthCharacteristic bending strength ≥ 5.0 Mpa / Characteristic breaking load > 4.5 KN
Abrasion Resistancestic breaking load > 4.5 KN BS EN 1339: 2003 Hydraulically pressed concrete Precast Concrete Paving Flags Incorporates 50mm Barfaced Tactile Paving Slabs ≤
DurabilityClass 3 ≤ 1,0kg/m² with no individual result ≤ 1,5kg/m²
Slip / Skid ResistanceDeemed to satisfy - (Products are of a tactile finish)
Reaction to fireClass A1 when used for internal flooring
External Fire PerformanceDeemed to satisfy
Emission of asbestosNo content
Thermal Conductivity1.2 W/(mK
