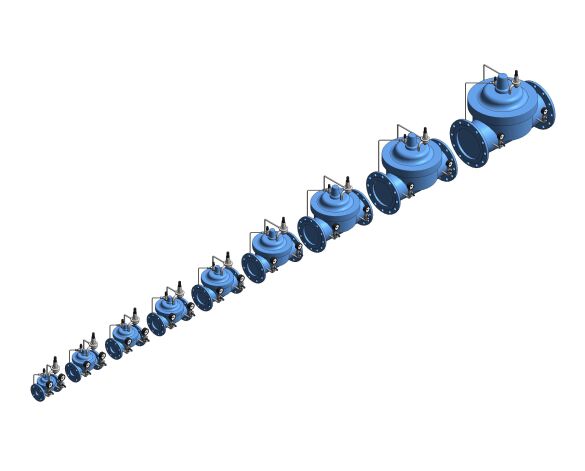

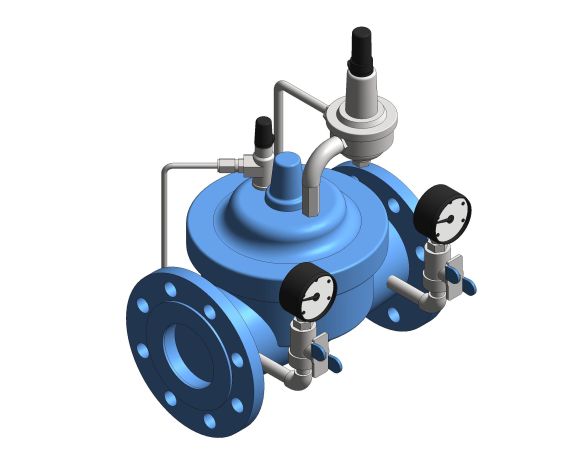

ART 6200 - Adjustable Pressure Reducing Valve

by Albion Valves

Download Add to collection

Description

PN16 Adjustable Pressure Reducing Valve. Automatic control valve. Suitable for potable water applications. WRAS approved epoxy coated body. Pressure adjusted by integral pilot valve. Conforms to BS EN 558-1 Series 1. Available flanged PN25. Stainless Steel pilot tubing and valves.

Flange - Conforms to BS EN 1092 PN16.

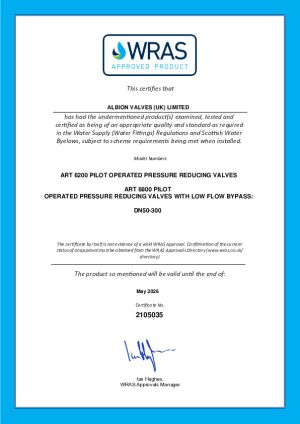

Fully WRAS Approved Valve - Cert No. 2105035.

16 Bar Rated.

0°C to +80°C

Object Data

1 Revision

Last Updated

03/06/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Certificates

Installation Guide

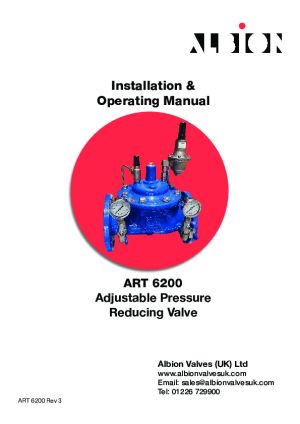

Product Literature

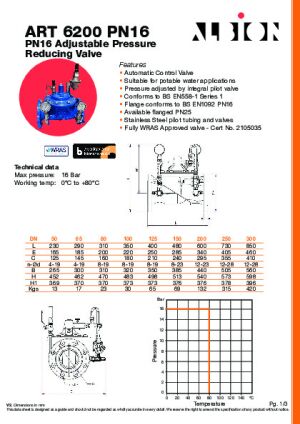

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-6200-adjustable-pressure-reducing-valve/document/object-user-guide

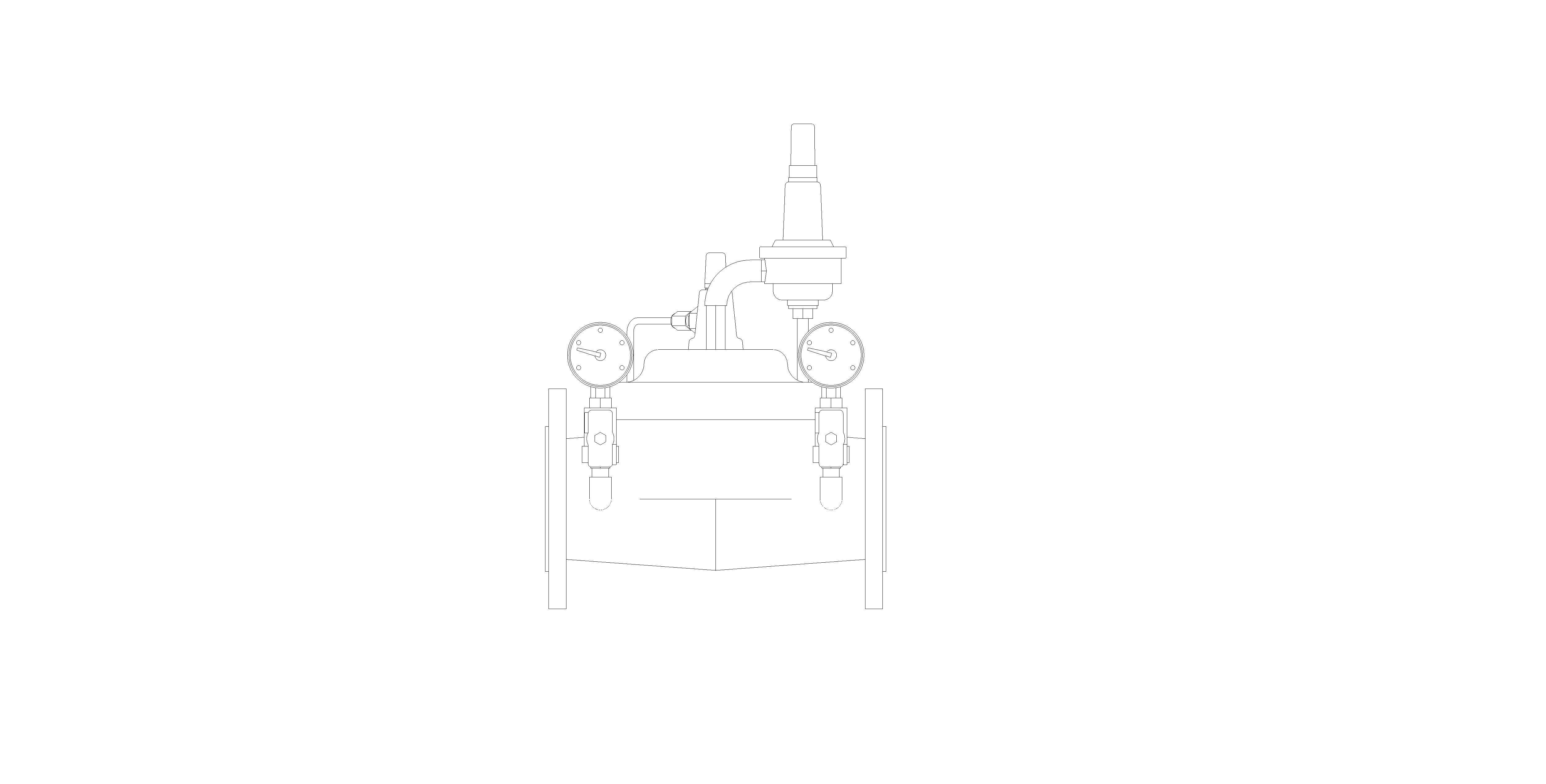

1107.6 mm
2126.1 mm
a45.0 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b35.0 mm
B320.0 mm
Ball ValveStainless Steel 304
BIM Object NameAlbionValves_PipeAccessories_AdjustablePressureReducingValve_ART6200
BodyDuctile Iron
c81.6 mm
C180.0 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_66
Code Performancen/a
ColorBlue
Connection Size100.0 mm
Constituentsn/a
CoverDuctile Iron
Cover BearingStainless Steel 304
Created Bysales@albionvalvesuk.com
Created On2023-08-07 T09:00:00
d37.9 mm
D19.0 mm
Default Elevation0.0 mm
DescriptionPN16 Adjustable Pressure Reducing Valve
DiaphragmEPDM
Diaphragm WasherDuctile Iron
Disc GuideDuctile Iron
Disc RetainerDuctile Iron
Disc RingNBR
DN100Yes
DN125No
DN150No
DN200No
DN250No
DN300No
DN50No
DN65No
DN80No
Documentation Certificateswww.bimstore.co/products/art-6200-adjustable-pressure-reducing-valve/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/art-6200-adjustable-pressure-reducing-valve/document/installation-guide
Documentation Literaturewww.bimstore.co/products/art-6200-adjustable-pressure-reducing-valve/document/product-literature
Documentation Maintenancewww.bimstore.co/products/art-6200-adjustable-pressure-reducing-valve/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/art-6200-adjustable-pressure-reducing-valve/document/technical-data-sheet
Duration UnitYear
E220.0 mm
Expected Life0
Features• Automatic Control Valve • Suitable for potable water applications • Pressure adjusted by integral pilot valve • Conforms to BS EN558-1 Series 1 • Flange conforms to BS EN1092 PN16 • Available flanged PN25 • Stainless Steel pilot tubing and valves • Fully WRAS Approved valve - Cert No. 2105035
Finishn/a
Flange Diameter220.0 mm
Flange Hole Offset90.0 mm
Flange Hole Radius9.5 mm
Flange Thickness19.0 mm
GaugeStainless Steel 304
Graden/a
H483.0 mm
H1373.0 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
L350.0 mm
Manometer Offset H115.0 mm
Manometer Offset V70.0 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDuctile Iron
Maximum Pressure16 bar
ModelART 6200
Model NumberDN100
Model ReferenceART 6200
NBS DescriptionPressure reducing valve
NBS Noten/a
NBS Object NameAlbion Valves - Pressure reducing valve
NBS Office Master Tagn/a
NBS Reference90-10-90/410
Needle ValveStainless Steel 304
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
NVH120.0 mm
NVO92.0 mm
NVV153.3 mm
O-RingNBR
Pilot ValveStainless Steel 304
Production Year2019
P Valve Offset H45.0 mm
P Valve Offset V181.3 mm
PVH155.0 mm
PVO15.0 mm
PVV181.3 mm
Raised Face Diameter158.0 mm
Raised Face Height3.0 mm
Referenced StandardBS EN558-1 Series 1 , BS EN1092 PN16
Replacement Costn/a
ScrewStainless Steel 304
SeatStainless Steel 304
Shapen/a
SizeDN100
Size DN100
Spare Partsn/a
SpringStainless Steel 304
StemStainless Steel 304
StrainerStainless Steel 304
Thread Inch4
Type CommentsDN100
Type NameART 6200
URLwww.albionvalvesuk.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts5
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@albionvalvesuk.com
WasherStainless Steel 304
Weight30kg
Working Temperature0°C to +80°C
