ART 250 - PN16 Double Regulating Valve

by Albion Valves

Download Add to collection

Description

Description
PN16 Ductile Iron Double Regulating Valve. EPDM Seat. C/W Ext & Test Points. Conforms to BS 5152 / BS 7350.

Stock Availability
Sizes DN300+ are subject to factory lead time.

Connection
Flanged PN16

Pressure
16 Bar Rated

Temperature
-10°C to +120°C

Object Data

2 Revision

Last Updated

20/10/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Installation Guide

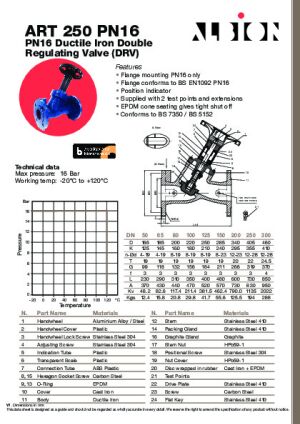

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision2
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-250/document/object-user-guide
a470 mm
A60.00 °
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b230 mm
B30.00 °
BIM Object NameAlbionValves_PipeAccessories_DoubleRegulatingValve_ART250
C90.00 °
c460 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_26
Code Performancen/a
ColorBlue
Connection Size100 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2019-07-01T09:00:00
D220 mm
DescriptionPN16 Cast Iron Double Regulating Valve
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-250/document/technical-data-sheet
Duration UnitYears
Expected Life0
F3 mm
Featuresn/a
FinishAlkyd Paint Coat Finish
G156 mm
Graden/a
Half L175 mm
Half T10 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
K180 mm
KeynoteS
L350 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDuctile Iron
Max Pressure16 Bar
ModelDouble Regulating Valve
Model NumberDN100 - DN4"
Model ReferenceDouble Regulating Valve
NBS DescriptionDouble regulating valves
NBS Object NameAlbion Valves - Double regulating valves
NBS Office Master Tagn/a
NBS Reference90-10-90/356
Nominal Depth220 mm
Nominal Height580 mm
Nominal Length350 mm
Outside Diameter110 mm
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100 - DN4"
Size DN100
Spare Partsn/a
Stem Radius10 mm
Symbol Placement 150 mm
Symbol Placement 228 mm
T19 mm
Tee Centre70 mm
Thread Inch4
Thread Millimetre102 mm
Type CommentsDN100 - DN4"
Type NameDouble Regulating Valve
URLwww.albionvalvesuk.com/
Valve FinishIron, Cast, Blue
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight29.8 kg
Wheel Angle72 mm
Working Temperature-20°C to +120°C
