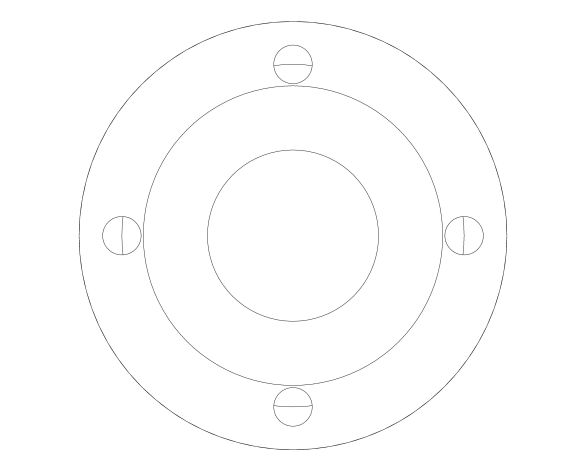

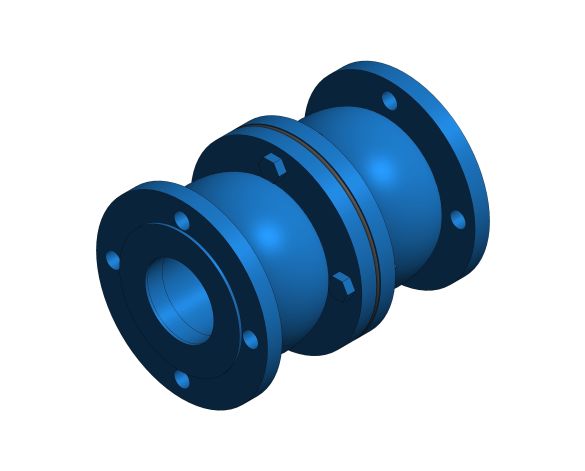

ART 236 - Check Valve

by Albion Valves

Download Add to collection

Description

Description
WRAS Approved Double Check Valve. Operates in any position. WRAS Approved as a non-return valve.

Connection
PN16 Flanged

Pressure
16 Bar.

Temperature
0°C - +23°C

Object Data

1 Revision

Last Updated

05/01/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

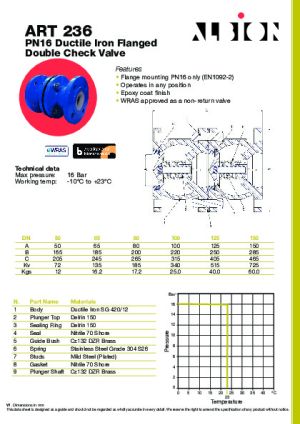

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-236/document/object-user-guide
A100.00 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B220.00 mm
BIM Object NameAlbionValves_PipeAccessories_CheckValves_ART236
C315.00 mm
C/2157.50 mm
Classification NameUniclass2015
Classification ValuePr_65_54_40_13
Code Performancen/a
ColorBlue
Connection Radius50.00 mm
Connection Size100.00 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2019-08-29 T09:00:00
DescriptionART 236 Ductile Iron PN16 Flanged Double Check Valve
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-236/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
FinishDuctile Iron
Flange Thickness20.00 mm
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDuctile Iron
Max Pressure16 bar
ModelART 236 Double Check Valve
Model NumberDN100
Model ReferenceART 236 Double Check Valve
NBS DescriptionCheck valves
NBS Object NameAlbion Valves - Check valves
NBS Office Master Tagn/a
NBS Reference90-15-40/323
Nominal Depth220.00 mm
Nominal Height220.00 mm
Nut Material<By Category>
Nut Thickness10.00 mm
Nut Width23.00 mm
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100
Size DN100
Spare Partsn/a
Stud Bore Radius9.00 mm
Thread Inch4
Thread Millimetre101.60 mm
Type CommentsDN100
Type NameART 236 Double Check Valve
URLwww.albionvalvesuk.com/
Valve FinishDuctile Iron - Blue Epoxy
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight25 kgs
Working Temperature0°C to +23°C
