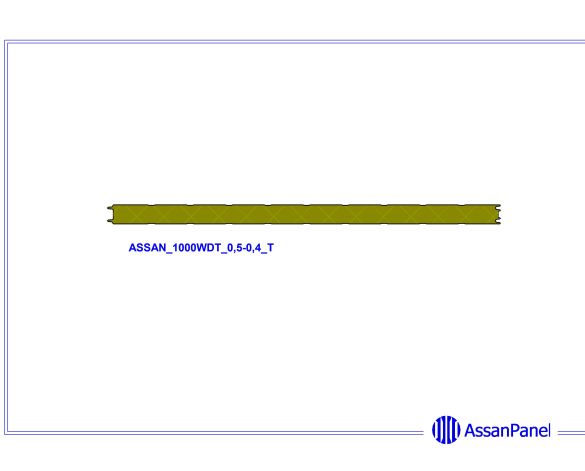

1000 WDT External Screw Wall Panel

by Assan Panel Sanayi ve Ticaret A.Ş.

Download Add to collection

Description

Can be used safely in buildings with high fire risk and in buildings where maximum fire resistance is required. It ensures the passage of openings safely. In addition, high acoustics thanks to Rockwool filling material performance. In order to obtain an aesthetic appearance on the façade, they are mostly produced as micro-ribbed. Double side lamp with tenon cross section provides a strong combination.

Object Data

1 Revision

Last Updated

24/10/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Object metadata

Accessibility Performancen/a
Asset TypeFixed
BIMobject categoryInsulated panel
Classification NameUniclass2015
Classification ValuePr_20_93_85_84
Code Performancen/a
Colorn/a
Constituentsn/a
Construction Type1000_WDT
Created Bybimsupport@assanpanel.com.tr
Created On2019-10-23T09:00:00
Date of publishing001
Design countryISTANBUL
Documentation Certificateswww.assanpanel.com.tr/
Documentation Installation Guidewww.assanpanel.com.tr/
Documentation Literaturewww.assanpanel.com.tr/
Documentation Maintenancewww.assanpanel.com.tr/
Documentation Technicalwww.assanpanel.com.tr/
Duration UnitYears
Expected Life0
External ColourRAL 5010
External Metal Thickness0,3
Featuresn/a
FinishASSAN IPN
Flammability Class (EN 13501)A1
Graden/a
Heat Transmission Coefficient λ (EN 13165) (W/Mk)0,033
Hot Dip Coating Quantity(EN 10327) (gr/m2)Z70
IFC ClassificationBuilding Element
Installation instructionswww.assanpanel.com.tr/en/urunler/sandvic-paneller/cephe-panelleri/1000-wdt
Insulation Core MaterialAssan Stonewool
Internal Metal Thickness0,3
Internal ColourRAL 6050
ManufacturerAssan Panel San. ve Tic. A.Ş.
Manufacturer countryTURKEY
Manufacturer nameAssan Panel San. ve Tic. A.Ş.
Manufacturer NameAssan Panel San. ve Tic. A.Ş.
Materialn/a
maximum size (m)Depends on shipping conditions
Metal Sheet TypeGalvanized
minimum size (m)3
Model nameASSAN_1000_WDT
Model NumberWall Panel
Model ReferenceInsulated Panels
NBS Reference Code60-88-84
NBS Reference DescriptionInsulated Wall
Painted TypePlastisol
Panel orientationWall- panel vertical
Product certificationwww.assanpanel.com.tr/en/kutuphane/sertifikalarimiz
Product data urlwww.assanpanel.com.tr/-/media/files/pdf/urunler/2019/09/assanpanel-1000-wdt-wall-panel-en.ashx
Product familyWall Panel
Product groupInsulated Panels
Production SiteBalıkesir
Production Year2019
QR codewww.assanpanel.com.tr/en/urunler/sandvic-paneller/cephe-panelleri/wt
Ral CodeAll colors available.Please enter the desired color code @ : 7032
Referenced Standardn/a
RegionALL
Replacement Costn/a
Rockwool Density (kg/m3)100 (±2)
ShapeRectangular
Sizen/a
Sound insulation Rw[Db]≥30
Spare Partsn/a
Technical descriptionwww.assanpanel.com.tr/en/urunler/sandvic-paneller/cephe-panelleri/1000-wdt
Temperature Resistance600 ºC
Thicknes100 mm
Type CommentsPrepainted Galvanized Steel Structure
Type NameWall Panel
Uniclass 2.0 CodePr_20_93_85_84
Uniclass 2.0 DescriptionStructural insulated wall panels
Uniclass 2015 CodePr_20_93_85_84
Uniclass 2015 NameStructural insulated wall panels
URLwww.assanpanel.com.tr/en/
Version numberAssan_1000_WDT-001
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Water absorption (EN ISO 354)By Volume 2%
Water Vapor Diffusion (EN 12086)1
width (mm)1000
